Siemens SIMATIC HMI TP1500 Comfort User Manual

Overview
1.3 Configuration of the devices
Comfort Panels
18 Operating Instructions, 07/2017, A5E36770603-AB
1.3.2
KP700 Comfort to KP1500 Comfort, TP700 Comfort to TP2200 Comfort
The following sections describe the basic design of the devices with 7" or larger displays,
using the KP700 Comfort and TP700 Comfort as examples. The enclosure dimensions and
form for the other models may differ from the illustrations shown.
Front view

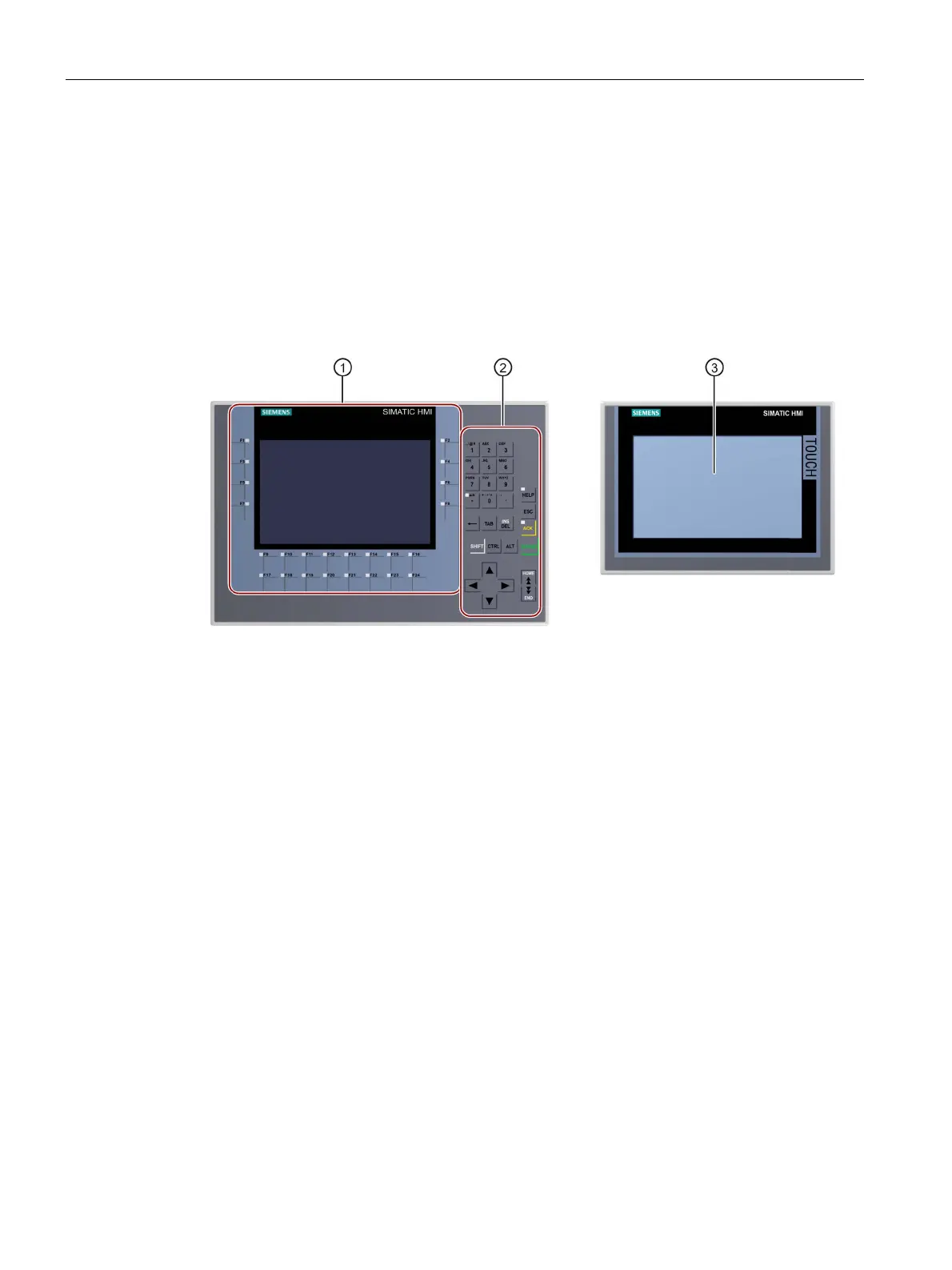

The figure below shows the front view of the HMI devices, using the KP700 Comfort and
TP700 Comfort as examples.
①
Display with function keys
The number of function keys varies depending on display size
②
Keyboard / system keys
③
Touch screen display

Siemens SIMATIC HMI TP1500 Comfort Specifications

General

Flash Memory	12 MB
Supply Voltage	24 V DC
Brightness	400 cd/m²
Flash Memory Size	12 MB
Display Size	15 inches
Touch Technology	Resistive
Interfaces	Ethernet, USB
Protection Rating	IP65
Display Type	TFT
Touchscreen Type	Analog-resistive
Communication Ports	Ethernet, USB
Protection Class	IP65
