Mounting and connecting the HMI device
3.3 Connecting the device
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
59
Function test
Perform a function test following commissioning. The HMI device is fully functional when one
of the following states is indicated:
● The "Transfer" dialog is displayed.
● The Start Center is displayed.
● A project is started.
Switching off the HMI device
Terminate the project on the HMI device before switching it off.
You have the following options for switching off the HMI device:
● Switch off the power supply.
● Unplug the power supply connector from the HMI device.
See also
Configuring transfer (Page 96)
3.3.10
Securing the cables
After the power-on test, use cable ties to secure the connected cables to the marked fixing
elements for strain relief.

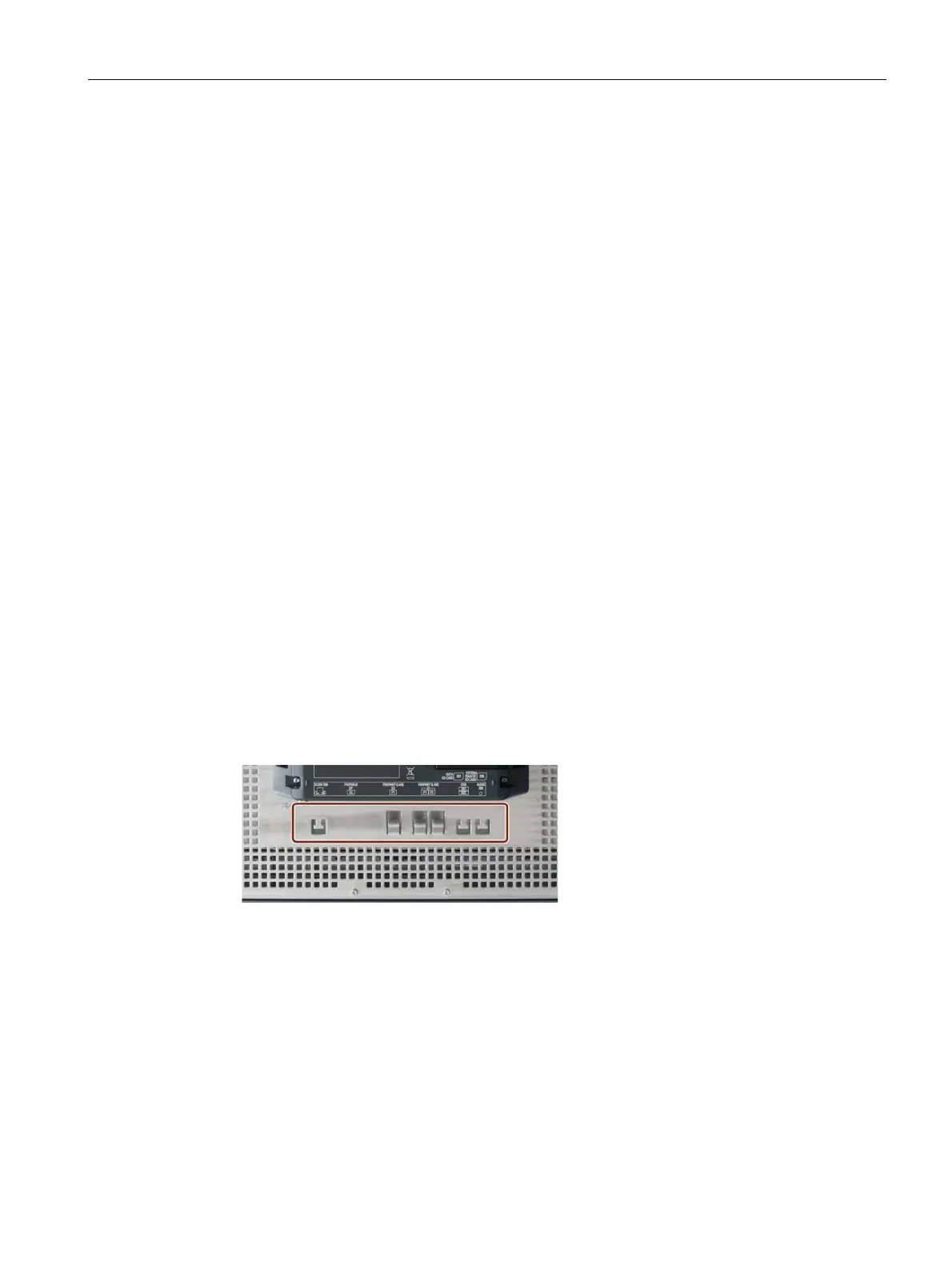

The figure below shows the fastening components with the TP1500 Comfort V2 device as an
example.

Siemens SIMATIC HMI TP1500 Comfort Specifications

General

Flash Memory	12 MB
Supply Voltage	24 V DC
Brightness	400 cd/m²
Flash Memory Size	12 MB
Display Size	15 inches
Touch Technology	Resistive
Interfaces	Ethernet, USB
Protection Rating	IP65
Display Type	TFT
Touchscreen Type	Analog-resistive
Communication Ports	Ethernet, USB
Protection Class	IP65
