Siemens SIMATIC HMI TP1500 Comfort User Manual

Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
88 Operating Instructions, 07/2017, A5E36770603-AB
4.3.5.6
Calibrating the touch screen
Parallax may occur on the touch screen depending on the mounting position and
perspective. To prevent any resulting operating errors, you may need to calibrate the touch
screen.
Requirement
● A touch pen
● The Control Panel is open.
Procedure
1. Open the ""OP Properties"" dialog using the ""OP"" icon.
2. Change to the "Touch" tab.
3. Comfort V2 devices: Select the number of calibration points.
Press the "Recalibrate" button.

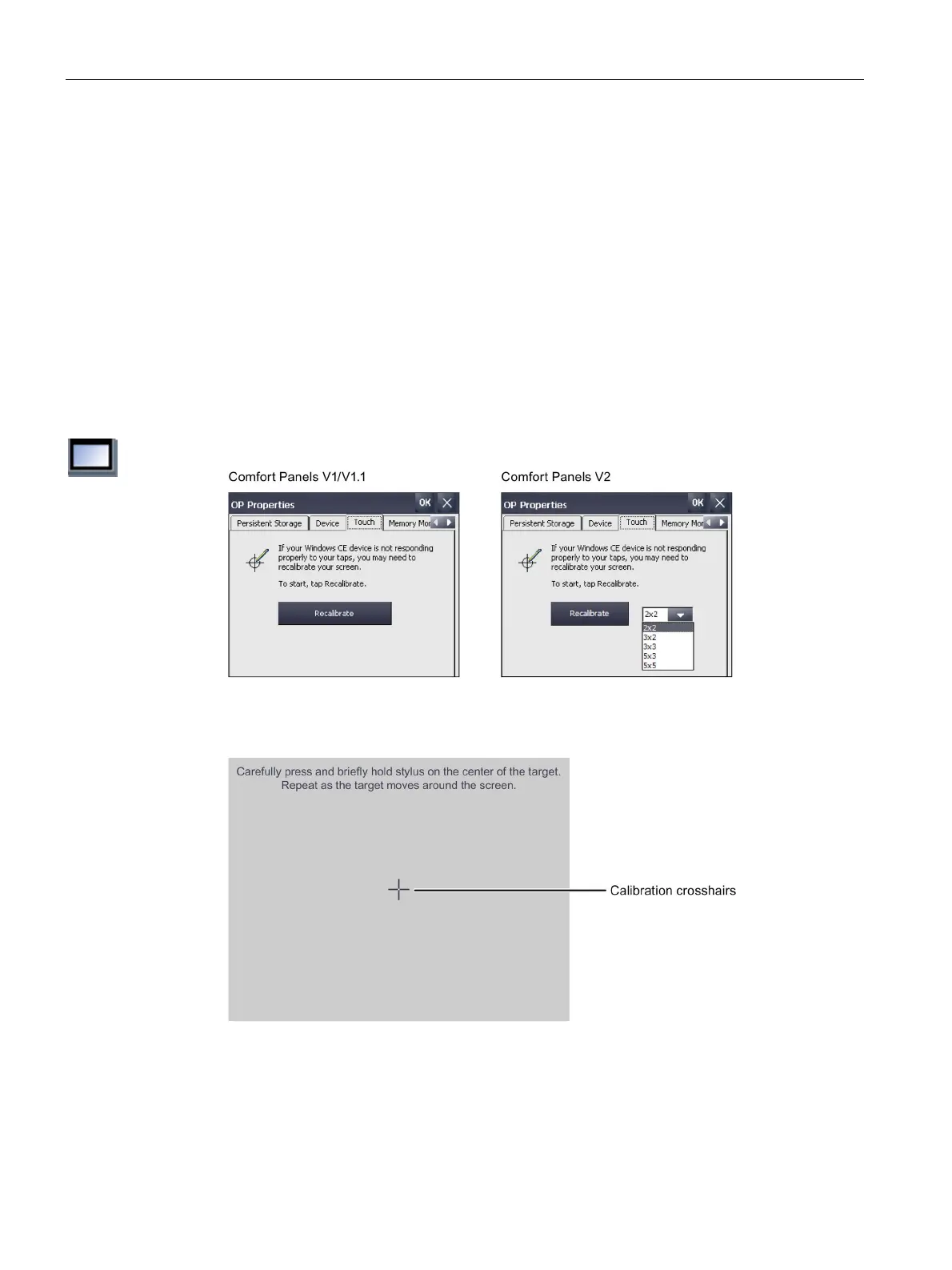

The following dialog is displayed:
