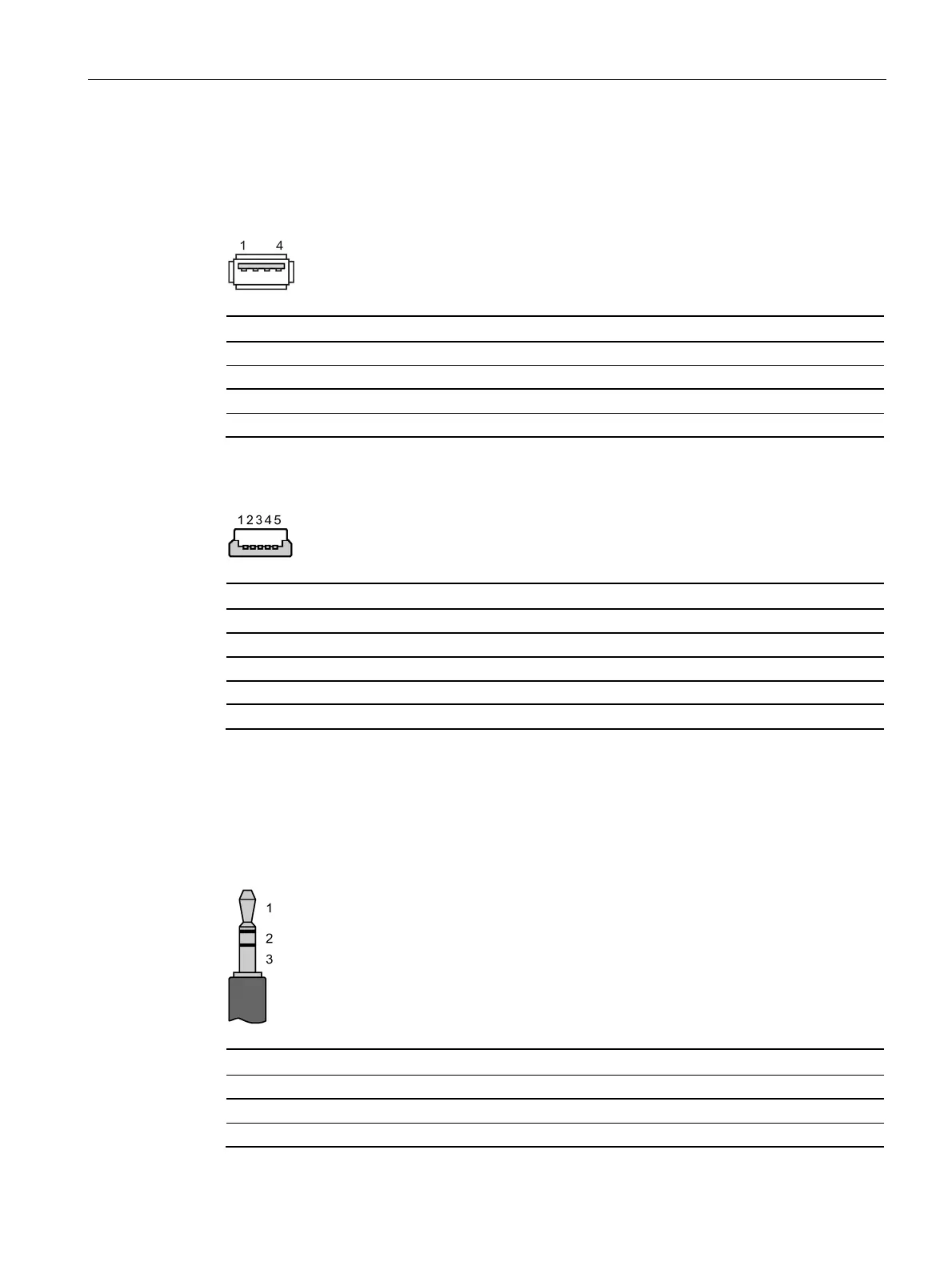

8.10 Description of the ports
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
225
8.10.5
USB
USB socket type A
Name of interface on HMI device: X61/X62
Pin
Assignment
1 +5 VDC, out (max. 500 mA)
2
USB-DN
3 USB-DP
4
GND
USB socket type Mini-B of the Comfort V1/V1.1 devices
Name of interface on HMI device: X60
Pin
Assignment
1
-
2 USB-DN
3
USB-DP
4 -
5 GND
8.10.6
Audio
Name of interface on HMI device: X90
Audio plug
Pin
Assignment
1
Left audio channel
2
Right audio channel
3
GND

Siemens SIMATIC HMI TP1500 Comfort Specifications

General

Flash Memory	12 MB
Supply Voltage	24 V DC
Brightness	400 cd/m²
Flash Memory Size	12 MB
Display Size	15 inches
Touch Technology	Resistive
Interfaces	Ethernet, USB
Protection Rating	IP65
Display Type	TFT
Touchscreen Type	Analog-resistive
Communication Ports	Ethernet, USB
Protection Class	IP65
