Mounting and connecting the HMI device
3.3 Connecting the device
Comfort Panels
60 Operating Instructions, 07/2017, A5E36770603-AB
Installing a strain relief
With the 4" and 7" models, protect the cables with a separate strain relief. Install the strain
relief on the HMI device.

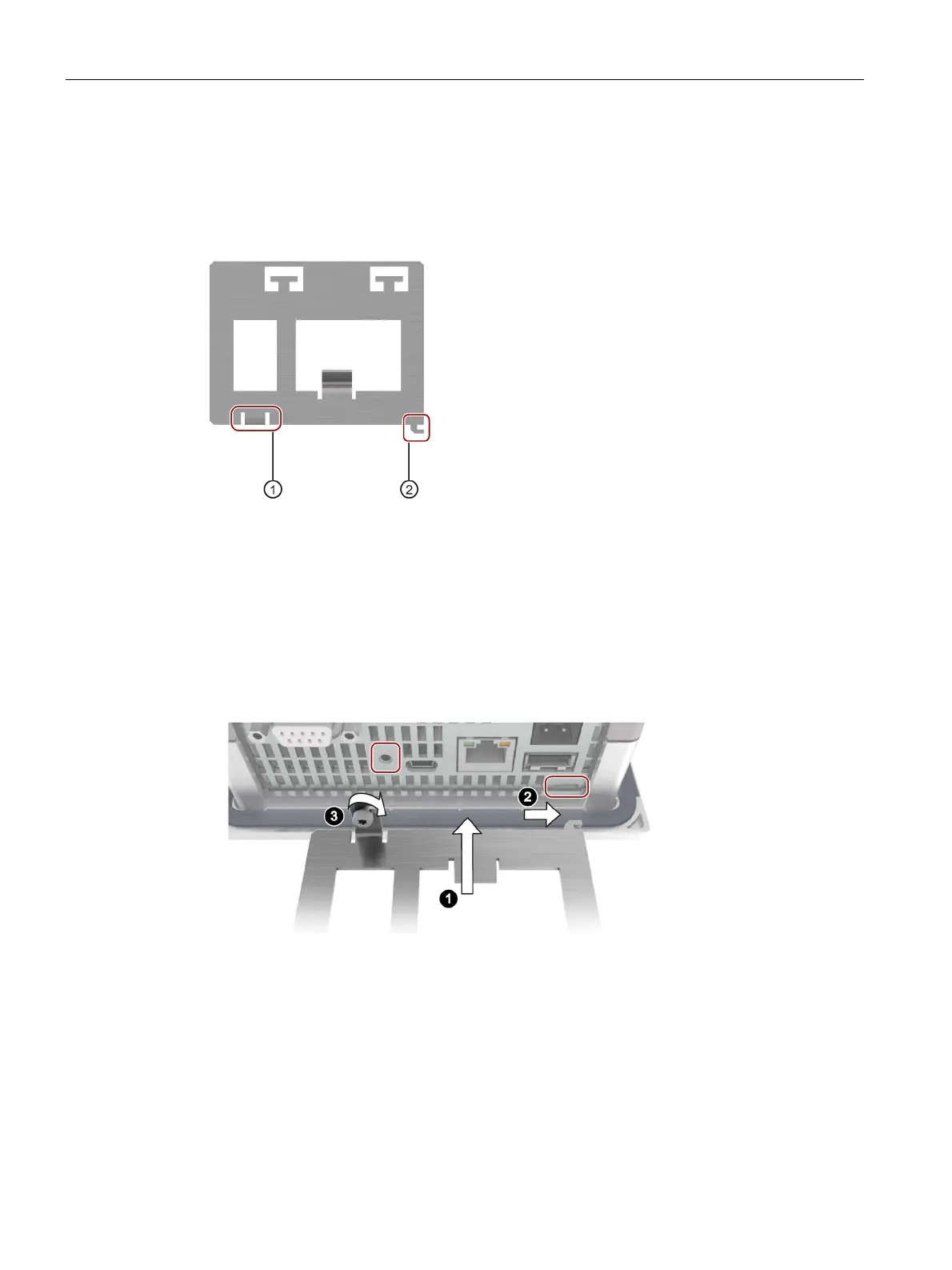

The following figure shows the fixing elements of the strain relief for the 4" model:
①
Bore hole for Torx screw
The strain relief is fastened with the Torx screw of the connection for equipotential bonding.
Before you install the strain relief, remove the Torx screw.
②
Safety latch
Proceed as follows:
1. Position the strain relief flush with the HMI device.
2. Push the strain relief to the right.
3. Secure the strain relief with the Torx screw.

Siemens SIMATIC HMI TP1500 Comfort Specifications

General

Flash Memory	12 MB
Supply Voltage	24 V DC
Brightness	400 cd/m²
Flash Memory Size	12 MB
Display Size	15 inches
Touch Technology	Resistive
Interfaces	Ethernet, USB
Protection Rating	IP65
Display Type	TFT
Touchscreen Type	Analog-resistive
Communication Ports	Ethernet, USB
Protection Class	IP65
