Siemens SIMATIC HMI TP1500 Comfort User Manual

Commissioning the device
4.3 Parameter assignment for Comfort Panel
Comfort Panels
Operating Instructions, 07/2017, A5E36770603-AB
143
Procedure

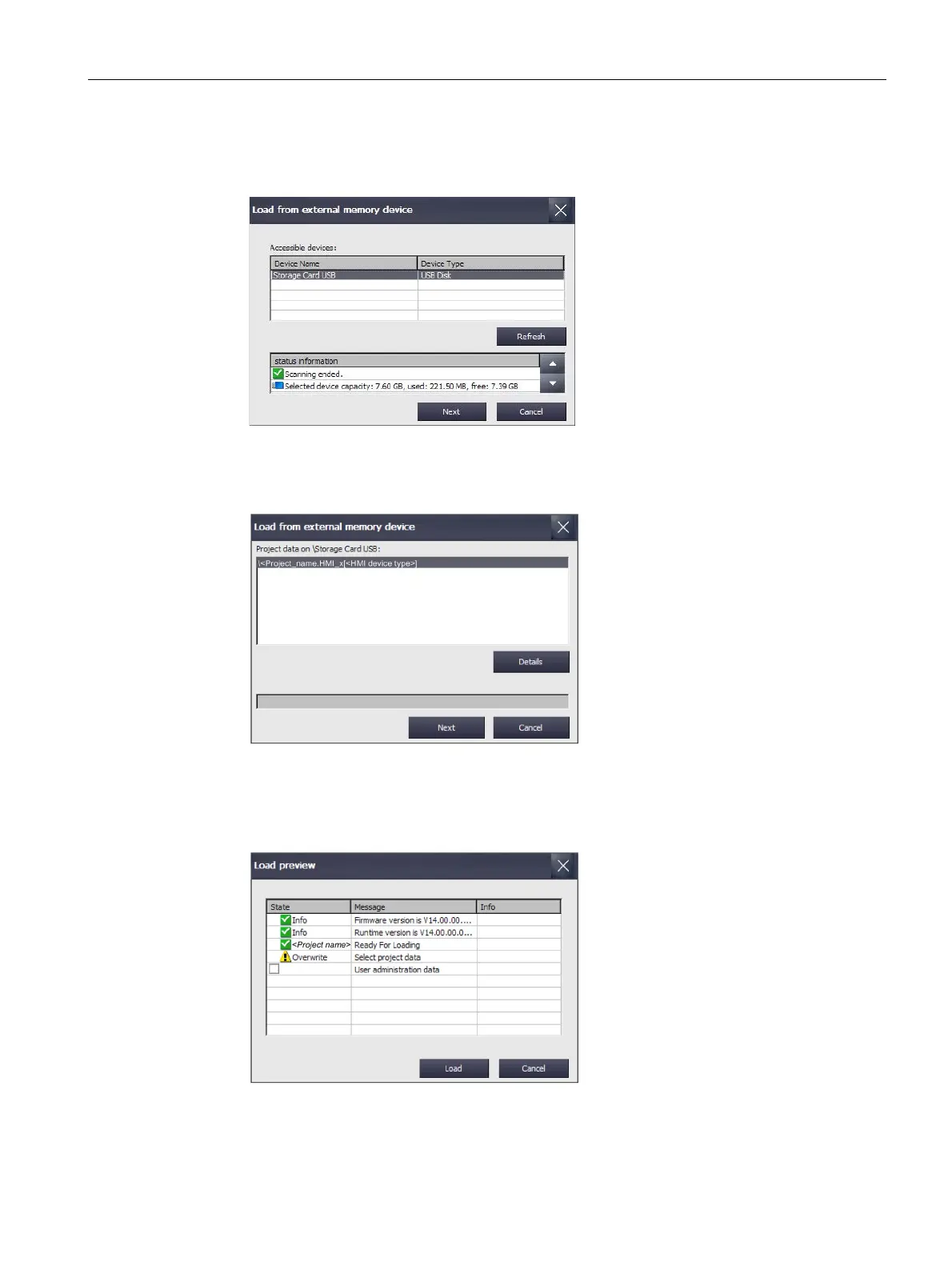

1. Press "Next". The "Load from external memory device" dialog is displayed.
2. Select the storage medium with the project data in the "Accessible devices" group.
3. Press "Next". The projects that are located on the external storage medium are displayed
in the following dialog. The following figure shows an example.
4. Select the project that you want to load into the HMI device. Use "Details" to receive
additional information about the selected project.
5. Press "Next". The HMI device checks whether the project data can be loaded. The result
of the check is displayed in the "Load Preview" dialog.

Siemens SIMATIC HMI TP1500 Comfort Specifications

General

Flash Memory	12 MB
Supply Voltage	24 V DC
Brightness	400 cd/m²
Flash Memory Size	12 MB
Display Size	15 inches
Touch Technology	Resistive
Interfaces	Ethernet, USB
Protection Rating	IP65
Display Type	TFT
Touchscreen Type	Analog-resistive
Communication Ports	Ethernet, USB
Protection Class	IP65
