Siemens SIMATIC HMI TP1500 Comfort User Manual

Mounting and connecting the HMI device
3.1 Preparing for installation
Comfort Panels
40 Operating Instructions, 07/2017, A5E36770603-AB
Procedure
Proceed as follows:
1. Edit the template on a PC and then print it.
2. Apply a fixation spray film to the labeling strips.
The printout can be made water and smudge-proof with a fixation spray. The color printer
ink will not bleed onto the keyboard film as well.
3. Cut out the labeling strip.
4. Cut the corners at a 45° angle so that it is easier to slide the strip into the slot.
5. When the ink has dried, slide the labeling strips into the slot up to the end of the guide.

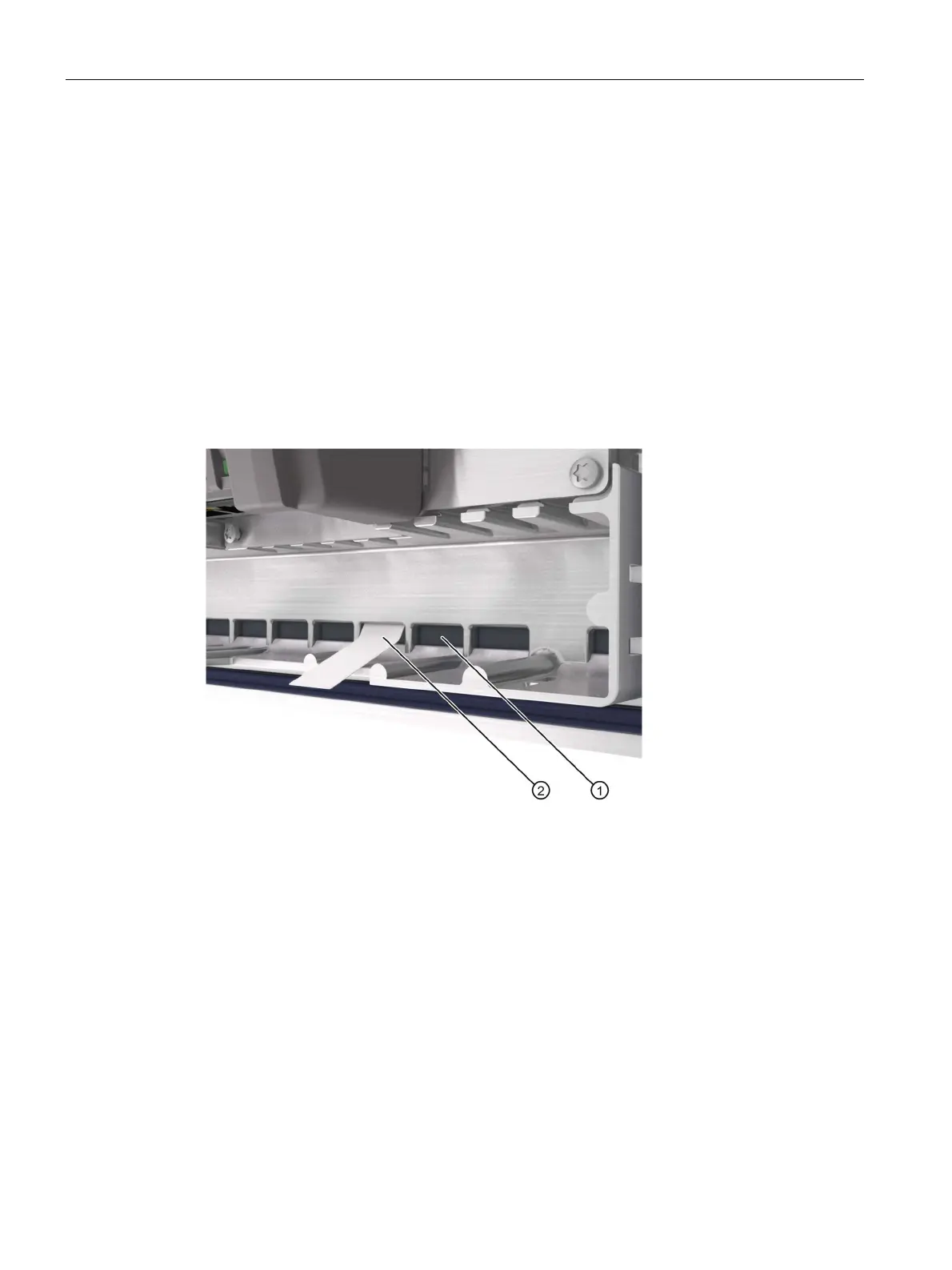

The figure below shows the guides and labeling strips for the bottom two rows of keys on the
KP1200 Comfort.
①
Guide; the maximum number of guides depends on the HMI device used
②
Labeling strip

Siemens SIMATIC HMI TP1500 Comfort Specifications

General

Flash Memory	12 MB
Supply Voltage	24 V DC
Brightness	400 cd/m²
Flash Memory Size	12 MB
Display Size	15 inches
Touch Technology	Resistive
Interfaces	Ethernet, USB
Protection Rating	IP65
Display Type	TFT
Touchscreen Type	Analog-resistive
Communication Ports	Ethernet, USB
Protection Class	IP65
