Mounting and connecting the HMI device
3.3 Connecting the device
Comfort Panels
48 Operating Instructions, 07/2017, A5E36770603-AB

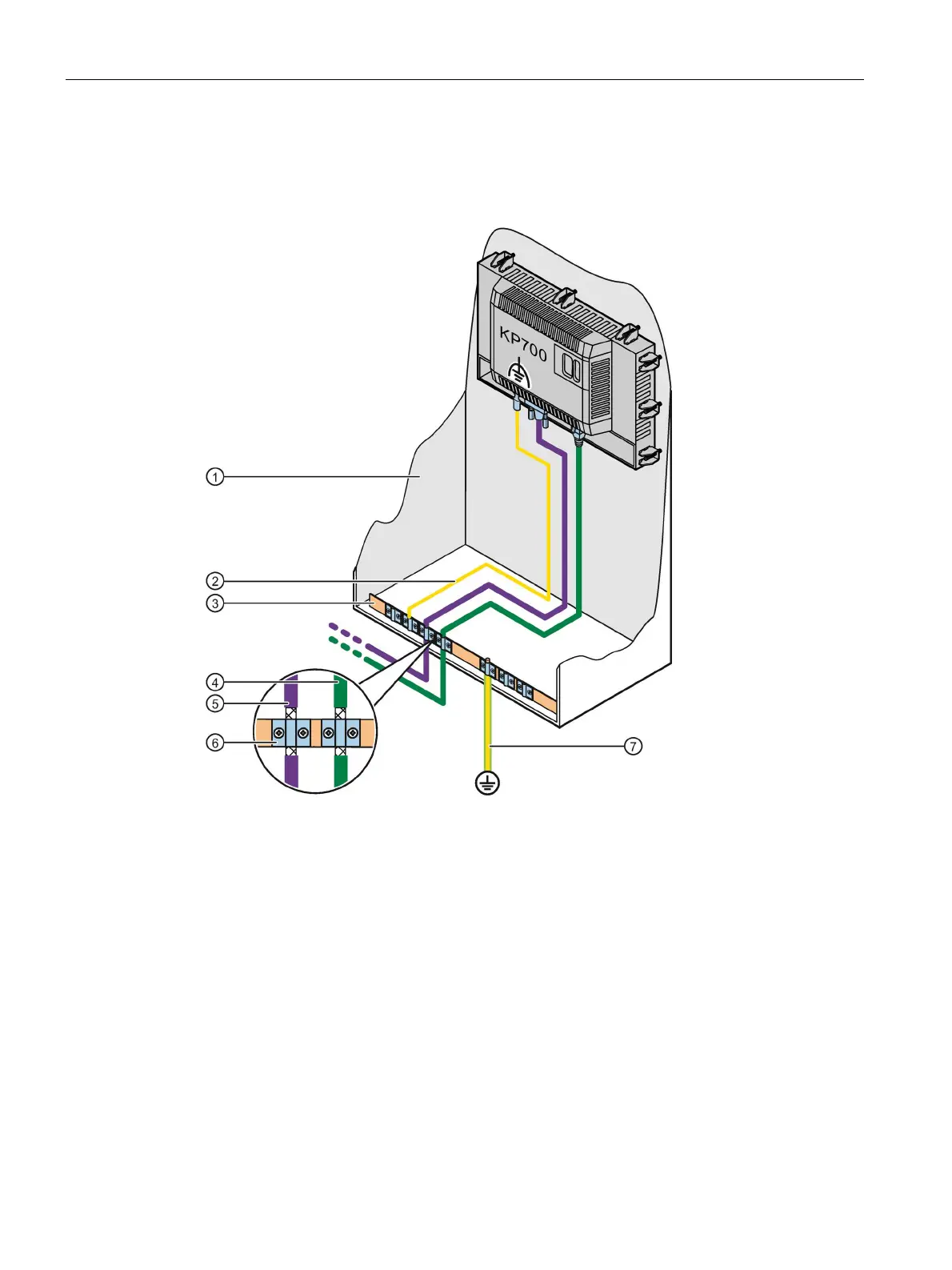

Wiring diagram
The following figure shows the connection of the equipotential bonding with KP700 Comfort
as an example and also applies to the other Comfort devices.
①
Control cabinet
②
Equipotential bonding cable, 4 mm
2
③
Equipotential bonding rail
④
PROFINET data cable
⑤
PROFIBUS data cable
⑥
Cable clip
⑦
Ground bar, 16 mm
2

Siemens SIMATIC HMI TP1500 Comfort Specifications

General

Flash Memory	12 MB
Supply Voltage	24 V DC
Brightness	400 cd/m²
Flash Memory Size	12 MB
Display Size	15 inches
Touch Technology	Resistive
Interfaces	Ethernet, USB
Protection Rating	IP65
Display Type	TFT
Touchscreen Type	Analog-resistive
Communication Ports	Ethernet, USB
Protection Class	IP65
