Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547G
124 Operating Instructions, 04/2020, A5E49948632-AA
Procedure
Removal
1. Remove the highlighted fan connector and loosen the four highlighted screws.

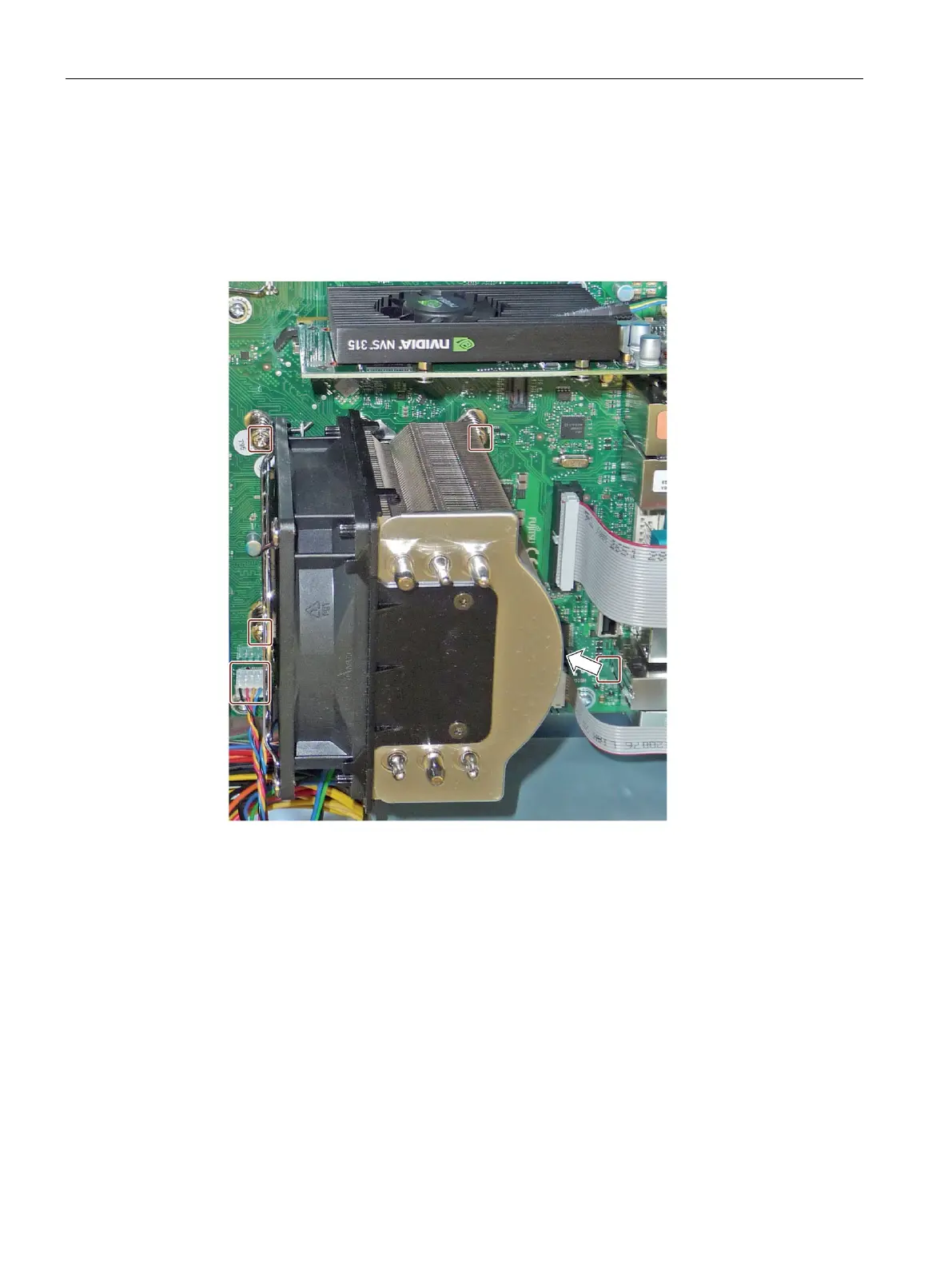

The following figure shows the motherboard D3446 with the heat sink for the Xeon
processor.
2. Remove the heat sink.
