Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
80 Operating Instructions, 04/2020, A5E49948632-AA
6.6.2 Removing and installing a 3.5"/2.5" drive in drive cage type B
Requirement
● The device is equipped with the drive cage type B.
● The device is fully disconnected from the mains voltage; see section "Switching off the
device (Page 63)".
● The device is open; see section "Open the device (Page 76)".
● Screwdriver T10 for loosening the HDD
● Screwdriver T8 for loosening the SSD

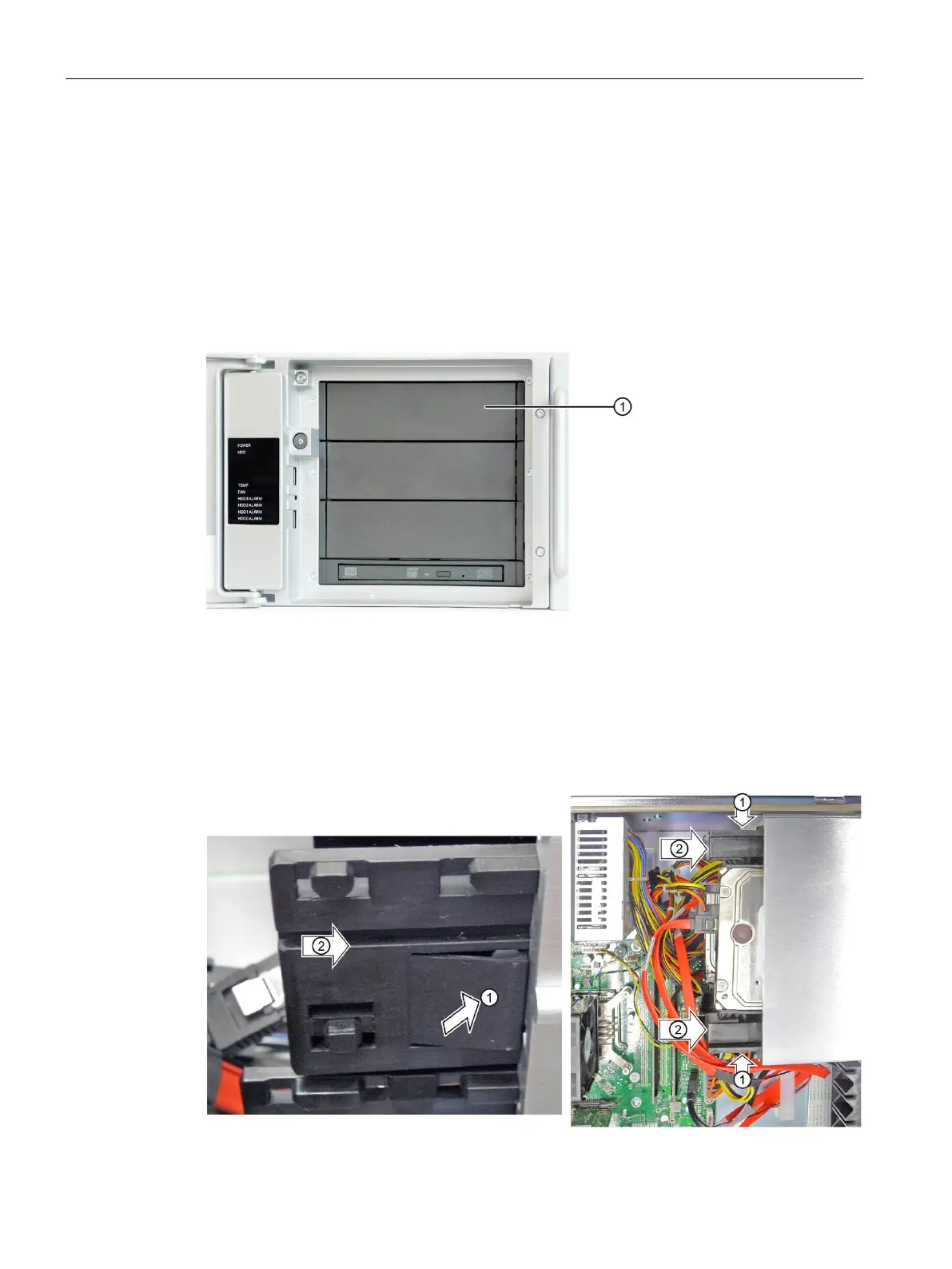

Drive with drive bay cover
Procedure
1. Remove the power supply and data cables from the drive.
2. Unlock the drive mounting bar by pressing laterally against the surfaces
① and push the
drive mounting bar forward from the device in the direction of the arrow
②. Carefully set
down the drive mounting bar.
