1.2 Device configuration
SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
19

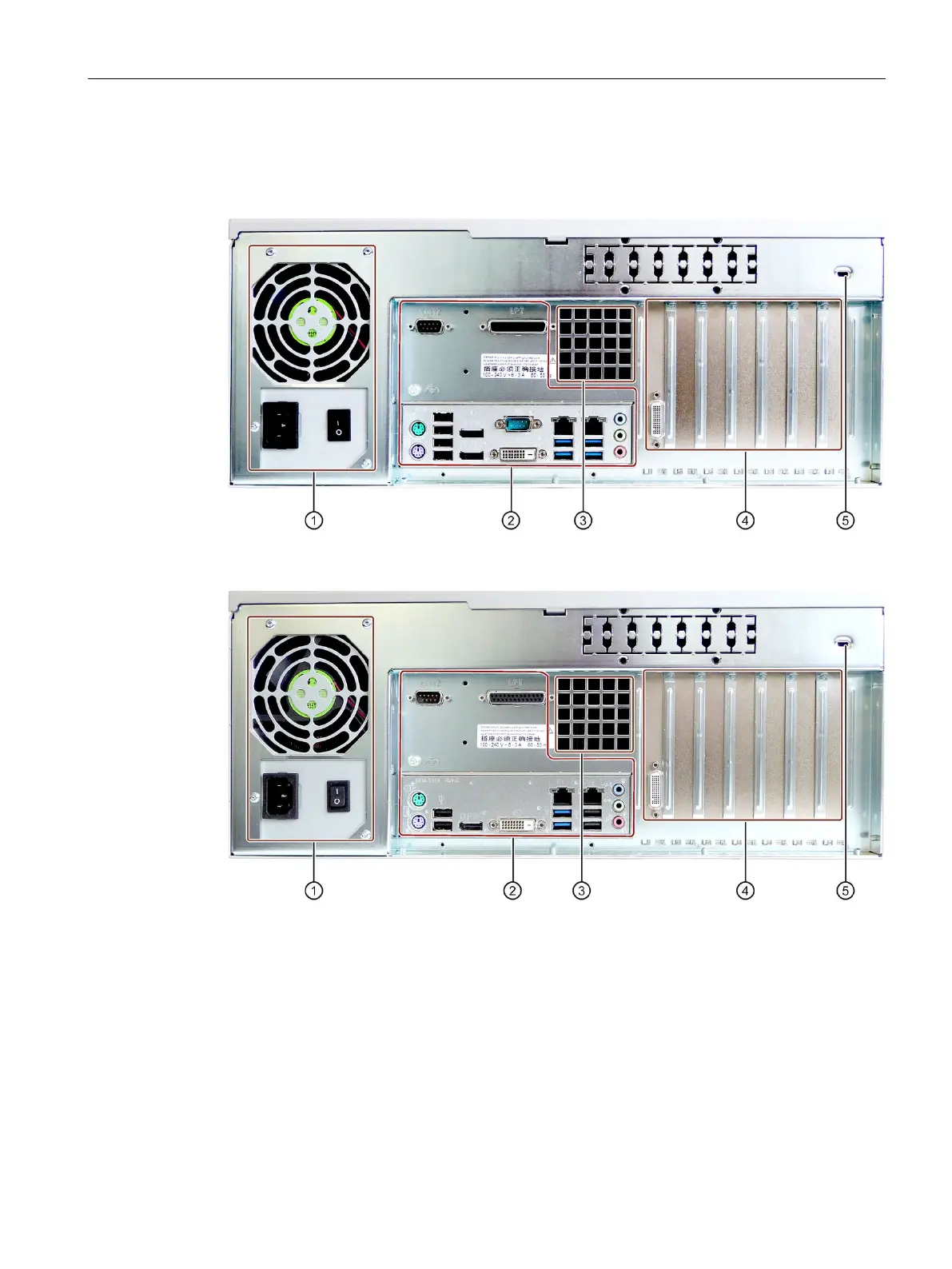

Rear of the device
Device with motherboard D3446-S
Device with motherboard D3445-S
①
Power supply
See section "
Interfaces (Page 20)", power supply connection
②
Interfaces
See section "
Interfaces (Page 20)"
③
Air outlet
④
Expansion card
slots
•
2 × PCI
•
2 × PCIe x16
•
1 × PCIe x8
•
2 × PCIe x4
⑤
Kensington
prepared for Kensington lock
