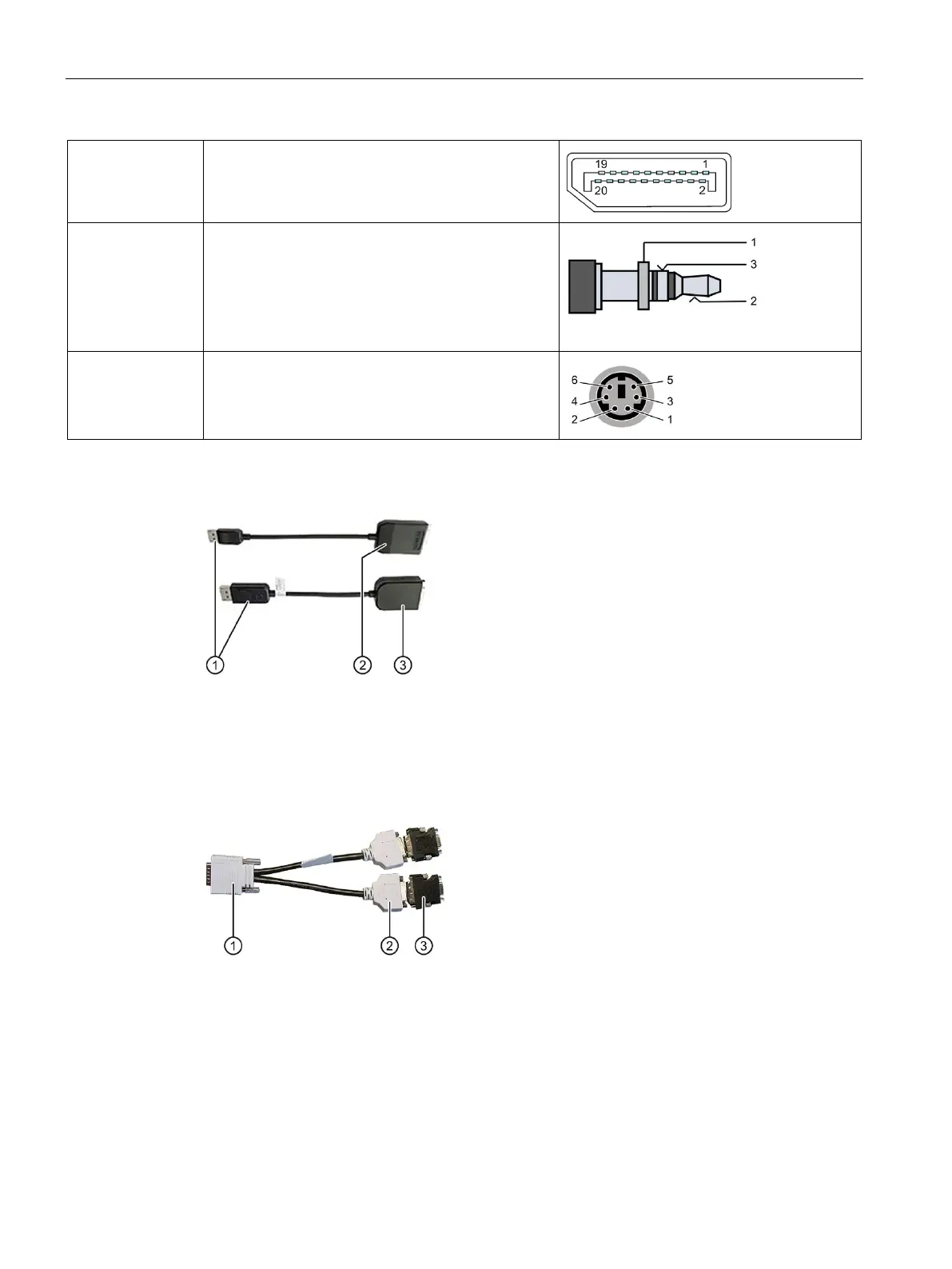

1.2 Device configuration
SIMATIC IPC547G
22 Operating Instructions, 04/2020, A5E49948632-AA
DPP 20-pin DisplayPort connector
(3.3 V; 500 mA)
Audio 3.5 mm Audio Jack Plug
• Line IN (light blue)
• Headphone OUT (lime)
(max. 1.2 V @ 32 ohm)
• Microphone IN (pink)
PS/2 6-pin PS/2 socket
(5 V; 500 mA)
Adapter for connecting DVI-D or VGA monitors to on-board DPP interfaces
①
DP connector
DP connection
②
DVI-D plug
DVI-D connectors
③
VGA connector
VGA connections
Dual-head adapter for connection of two monitors to the optional graphics card
①
DMS59 connector
DMS59 connection
②
DVI-I connector
DVI-I connections
③
VGA connector
VGA connections
