Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
86 Operating Instructions, 04/2020, A5E49948632-AA

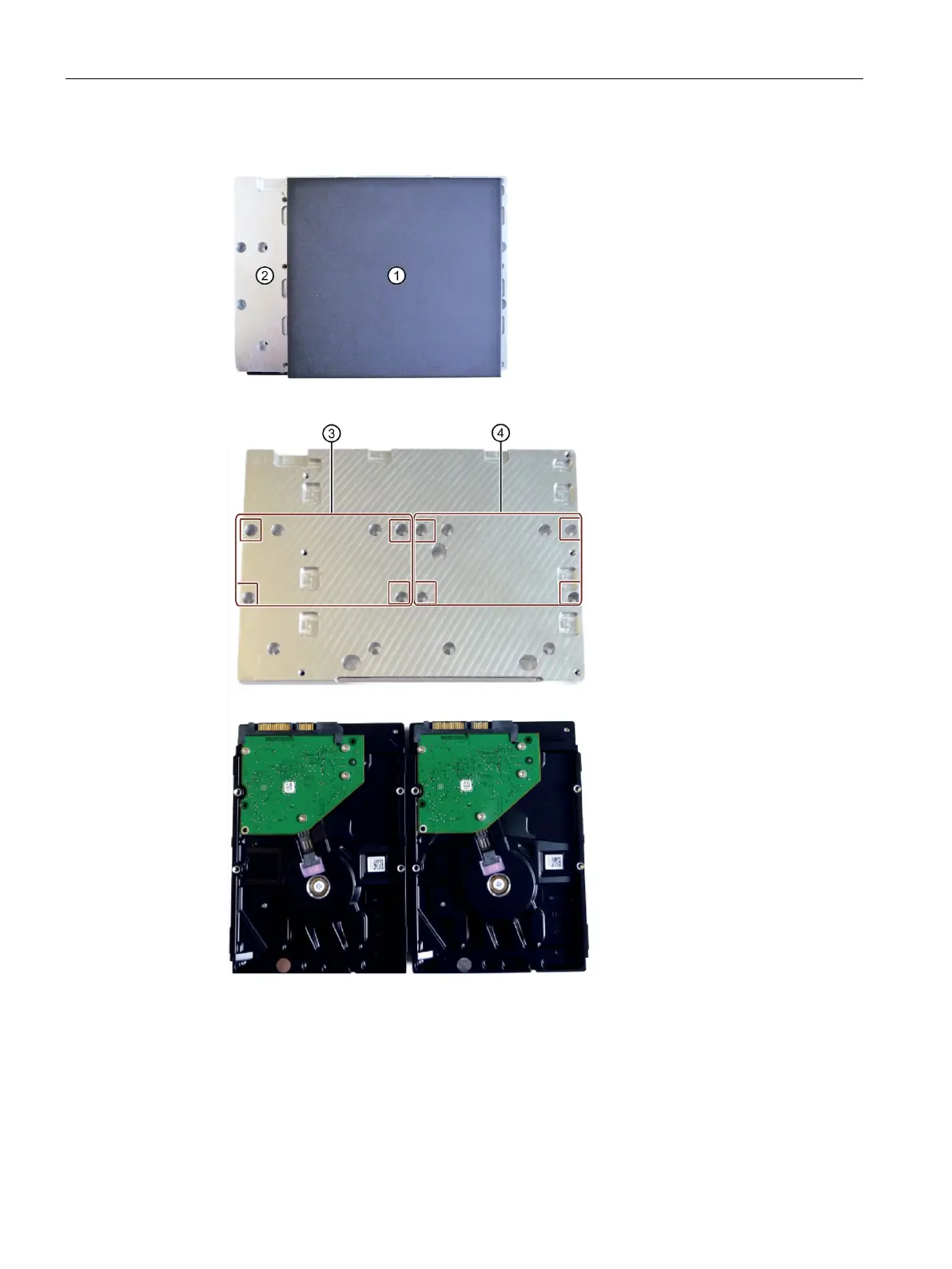

3. Remove the design cover ① from the drive bay plate ②.
4. Loosen the 4 highlighted fixing screws on slot
③ or ④ of the respective hard disk drive.
Installation
1. Proceed in reverse order.
See also
Device configuration (Page 17)
