Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
95

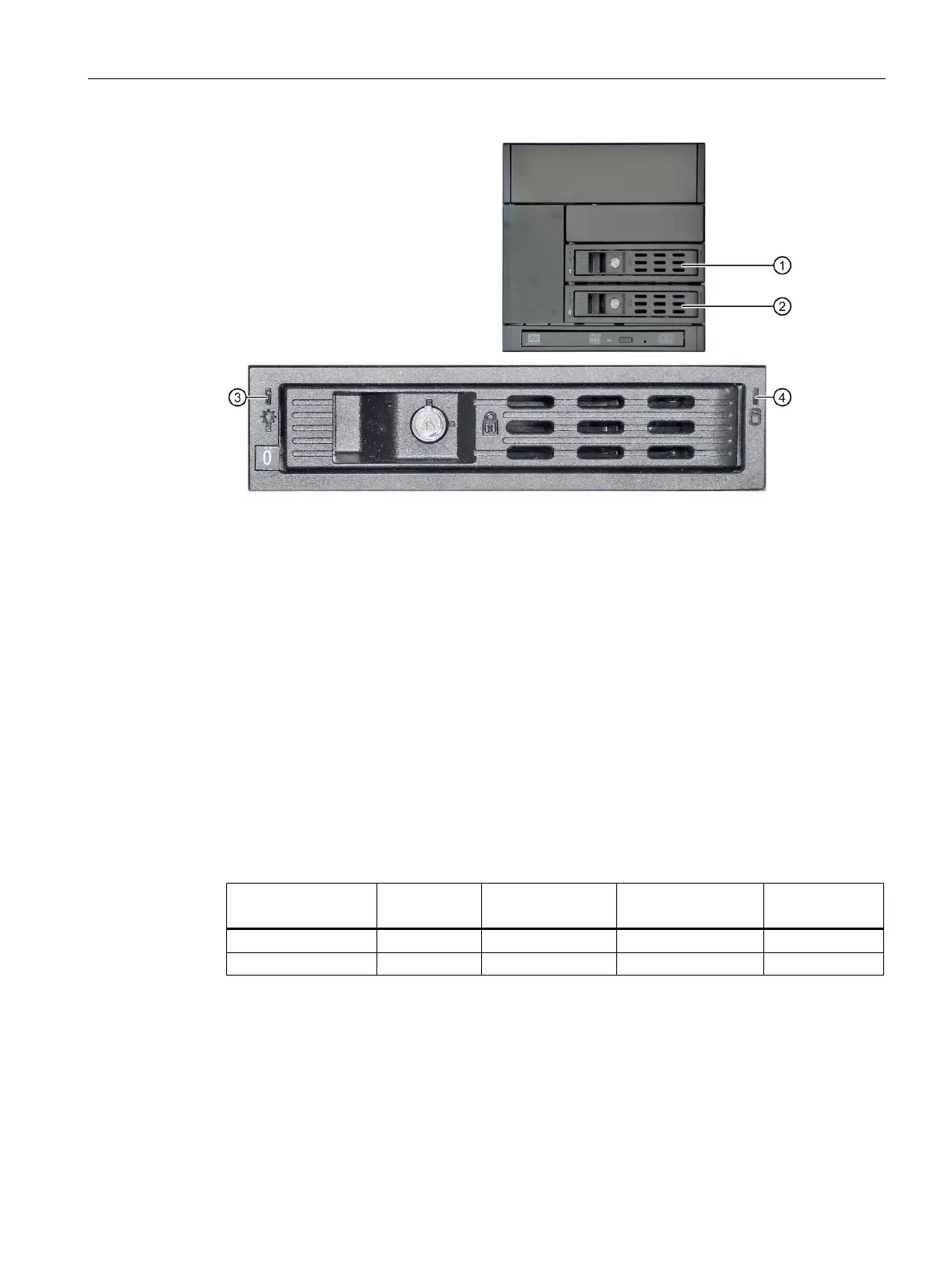

Similar to figure
①
Removable tray 1
②
Removable tray 0
③
"Power" LED; power supply available
④
"HDD" LED, access to hard disk drive
Status displays of the hard disk drives in a RAID1 system
A defective hard disk drive in the RAID system is signaled with the status displays at the
front of the device.
The following table includes information on the alarms of the status displays. If the hard disk
drive is defective and the SIMATIC monitoring software is installed, the LEDs of the status
display light up individually or simultaneously.
Internal hard disk drive or hard disk drive in the removable tray
Status display
RAID BIOS
RAID software
Data cable connec-
tion
Drive
HDD0 alarm
Port 0
Device port 0
0
0
HDD1 alarm
Port 1
Device port 1
1
1
