Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
99
Replacing the drive

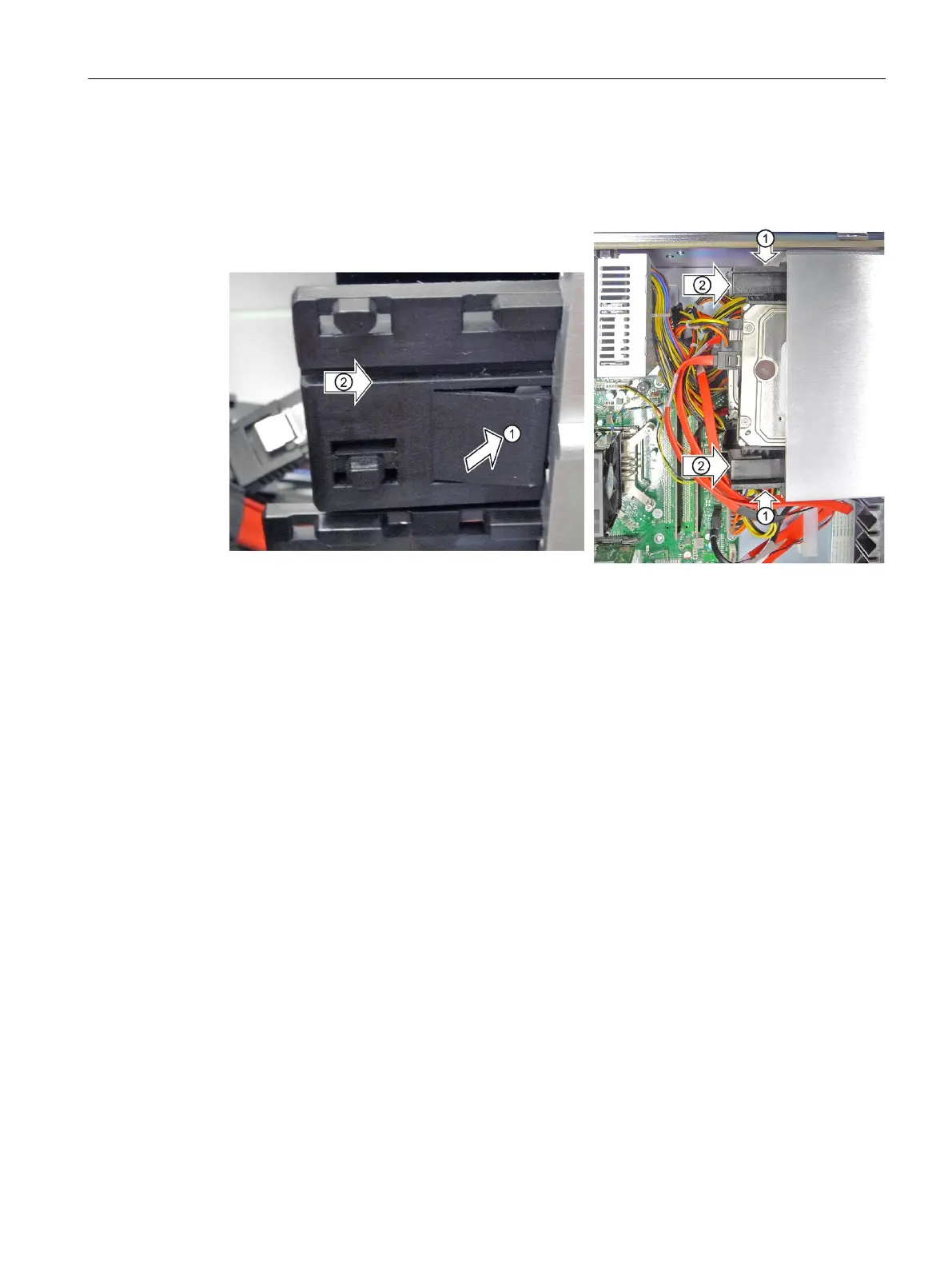

1. Unlock the drive by pressing laterally against the surfaces ① and pushing the drive
forward from the device in the direction of the arrow
②. Set the drive down carefully.
2. Proceed as described in the section "Inserting a drive" from step 3 onwards.
