4.2 Web server
CP 1604 / CP 1616
Operating Instructions, 02/2017, C70000-G8976-C218-08
53
Navigation to other module levels
The status of individual modules / submodules / components is displayed when you navigate
to other module levels:
● To higher module levels via the links in the display of the module levels
● To lower module levels via the links in the "Name" column

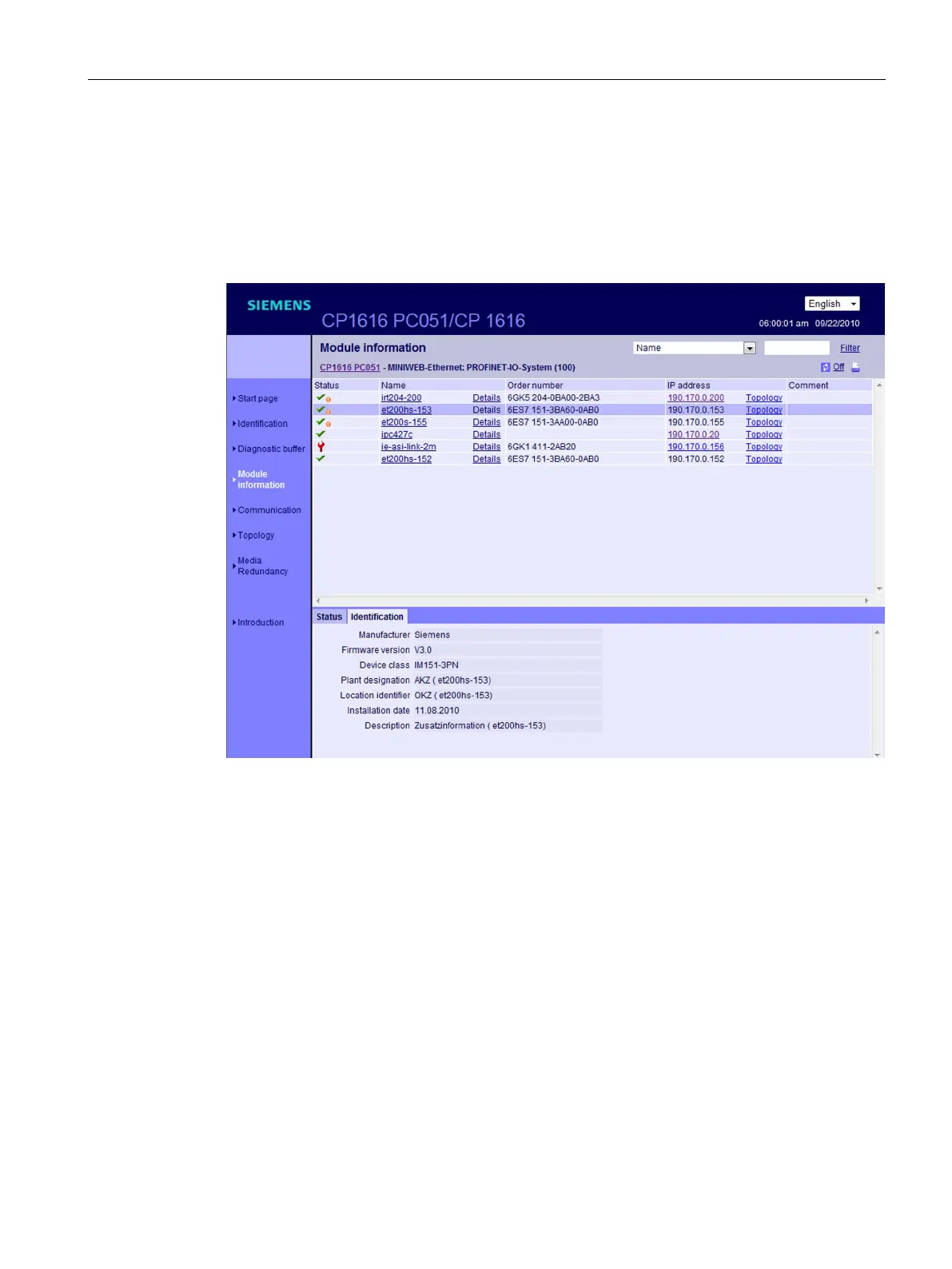

Figure 4-9 Module information - Module
Depending on the selected level, the table shows information on the PC station, the DP
master system, the PNIO master system, the nodes, the individual modules or even the
submodules or components of the station.
"Display of the module levels"
Via the links, you go to the "Module information" of the higher module levels.
With the "Details" link, you obtain further information on the selected module in the "Status"
and "Identification" tabs.
