4.2 Web server
CP 1604 / CP 1616
64 Operating Instructions, 02/2017, C70000-G8976-C218-08
The "table view" always shows the "actual topology".

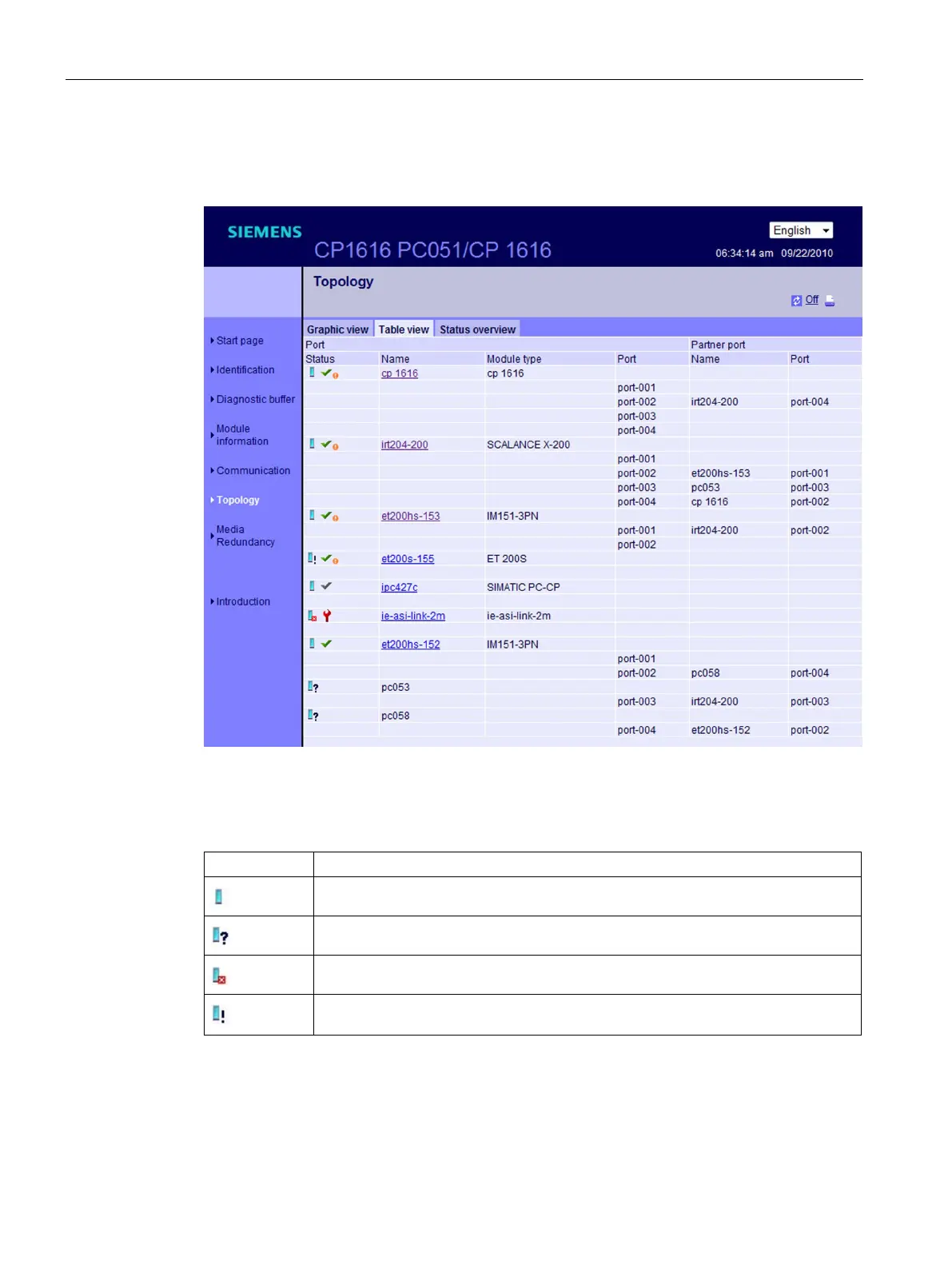

Figure 4-15 Topology - Table view
Meaning of the icons indicating the status of the PROFINET nodes
Configured and reachable PROFINET nodes
Unconfigured and reachable PROFINET nodes
Configured but unreachable PROFINET nodes
Nodes for which no neighborhood relation could be detected or the neighborhood
relation could not be read completely or only incorrectly
