Introduction
1.2Description
• DIN or panel mounting options provide secure mechanical reliability
• [Optional] Conformal coated printed circuit boards
Power Supply
• Fully integrated power supply
• Universal high-voltage range: 88-300 VDC or 85-264 VAC
• Dual LO DC inputs: 24 or 48 VDC
• Terminal blocks for reliable maintenance free connections
• CSA/UL 62368-1 safety approved to 85 °C (185 °F)
1.2 Description
The RUGGEDCOM RS900 features various ports, controls and indicator LEDs on the
front panel for connecting, configuring and troubleshooting the device.
1
POWER LED
2
ALARM LED
3
RESET Button
4
[Optional] Copper (10/100Base-TX) or Fiber Optic (100Base-FX) Ethernet Ports
5
Copper (10/100Base-TX) Ethernet Ports
6
RS232 Console Port (Serial)
7
Failsafe Alarm Relay
8
Chassis Ground Connection
9
Power Supply Terminal Block

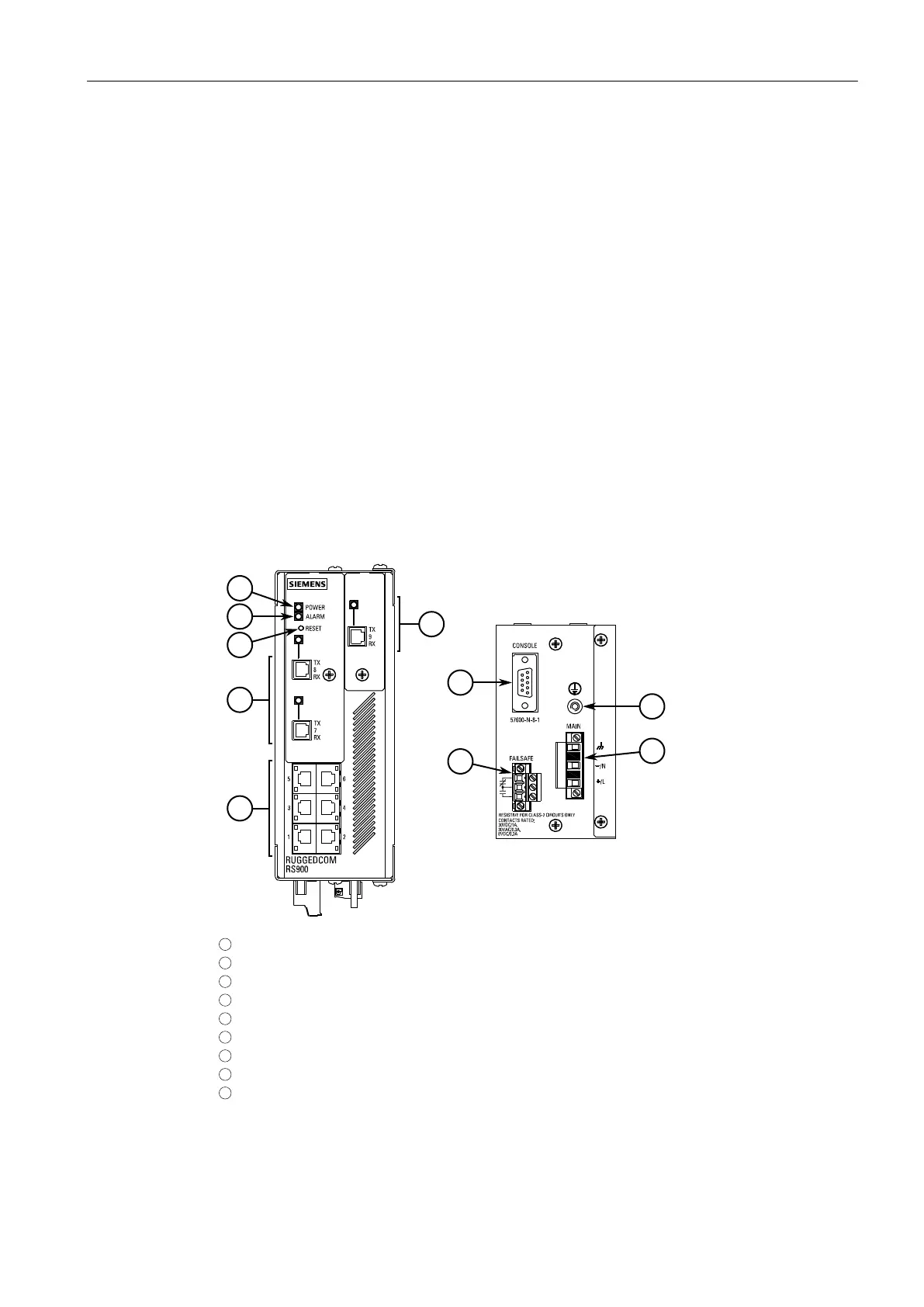

Figure1.1 RUGGEDCOM RS900
2
RUGGEDCOM RS900
Equipment Manual, 11/2023, C79000-G8976-1024-16
