Installing the Device
2.3.2Mounting the Device to a Panel
1
2
1
1
2
3
1
DIN Rail
2
DIN Rail Adapter

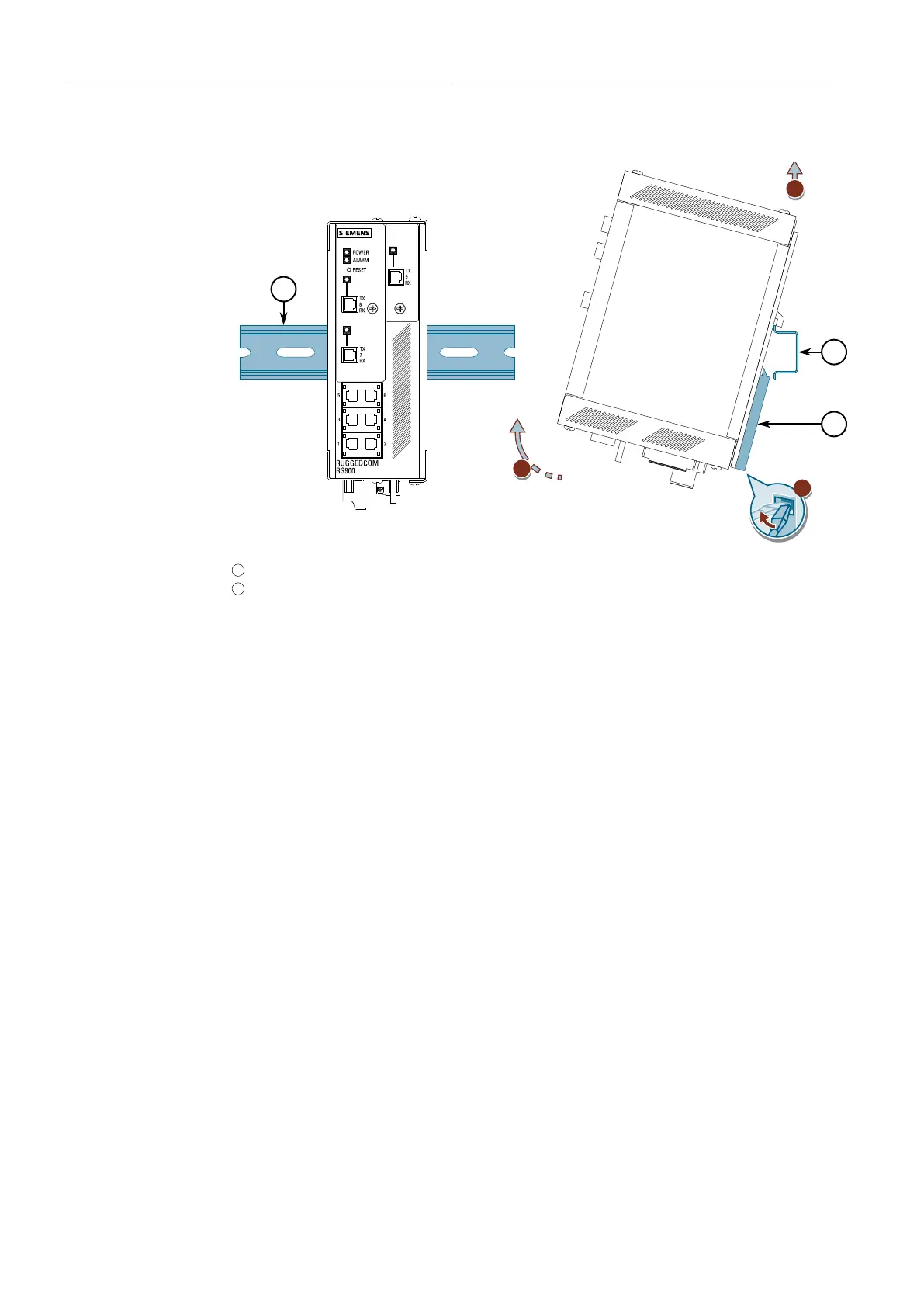

Figure2.2 Removing the Device from a DIN Rail
2. Swing the bottom of the device away from the DIN rail.
3. Lift the device off the DIN rail.
2.3.2 Mounting the Device to a Panel
For panel installations, the RUGGEDCOM RS900 can be equipped with panel adapters
pre-installed on the top and bottom of the chassis. The adapters allow the device to
be attached to a panel using screws.
To mount the device to a panel, do the following:
1. Prepare mounting holes in the panel where the device is to be installed.
2. Place the device against the panel and align the adapters with the mounting
holes.
