Description of the device
4.5 Device views
SCALANCE XM-400
Operating Instructions, 09/2018, C79000-G8976-C306-08
27

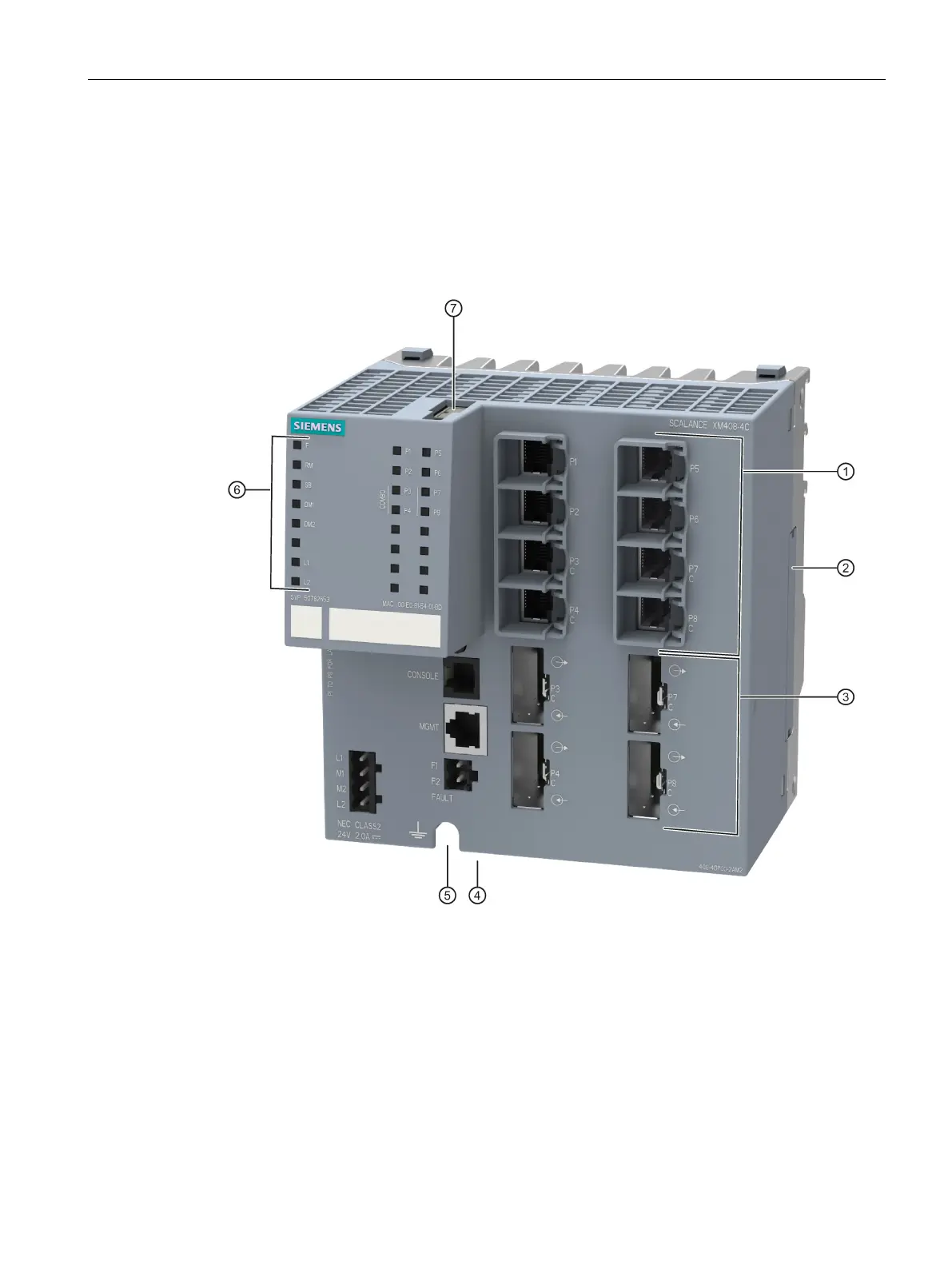

The following figure shows an overview of the components of the SCALANCE XM408-4C.
Expansion interface with cover
Slots for pluggable transceivers (STP and DCP)
Location for securing to an S7 standard rail (on the underside of the device, not in figure)
Grounding (on rear of device, not shown in figure)
Slot for C-PLUG / KEY-PLUG
