Connecting up
6.6 Out-of-band interface
SCALANCE XM-400
Operating Instructions, 09/2018, C79000-G8976-C306-08
63
6.6
Out-of-band interface
Information on the out-of-band interface
● The out-of-band interface is an RJ-45 Ethernet port on the CPU module. The out-of-band
interface is not used for routing or switching.
● Access to the device is also possible independent of the other Ethernet ports.
● The out-of-band interface allows direct IP access to the WBM of the device.
Position and assignment

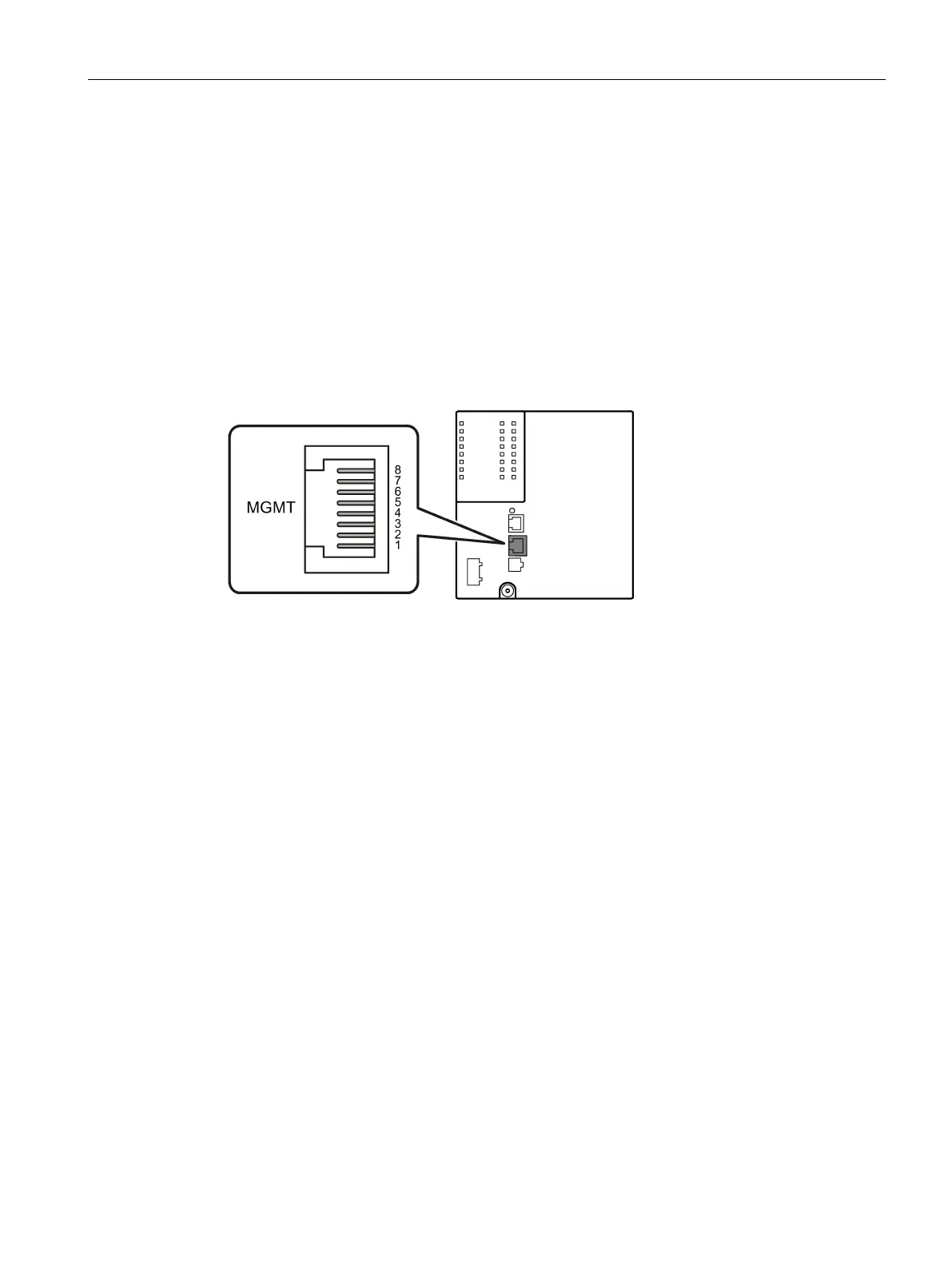

Figure 6-4 Position and pin assignment of the out-of-band interface (RJ-45 jack) on the SCALANCE
XM-400.
