Installing the Device
2.5.2Connecting Low DC Power
1. Connect the power supply terminal block to the device.
4
1
3
2
1
European-style (Euroblock) Terminal Block
2
Positive (+) Terminal
3
Negative (-) Terminal
4
Ground Terminal

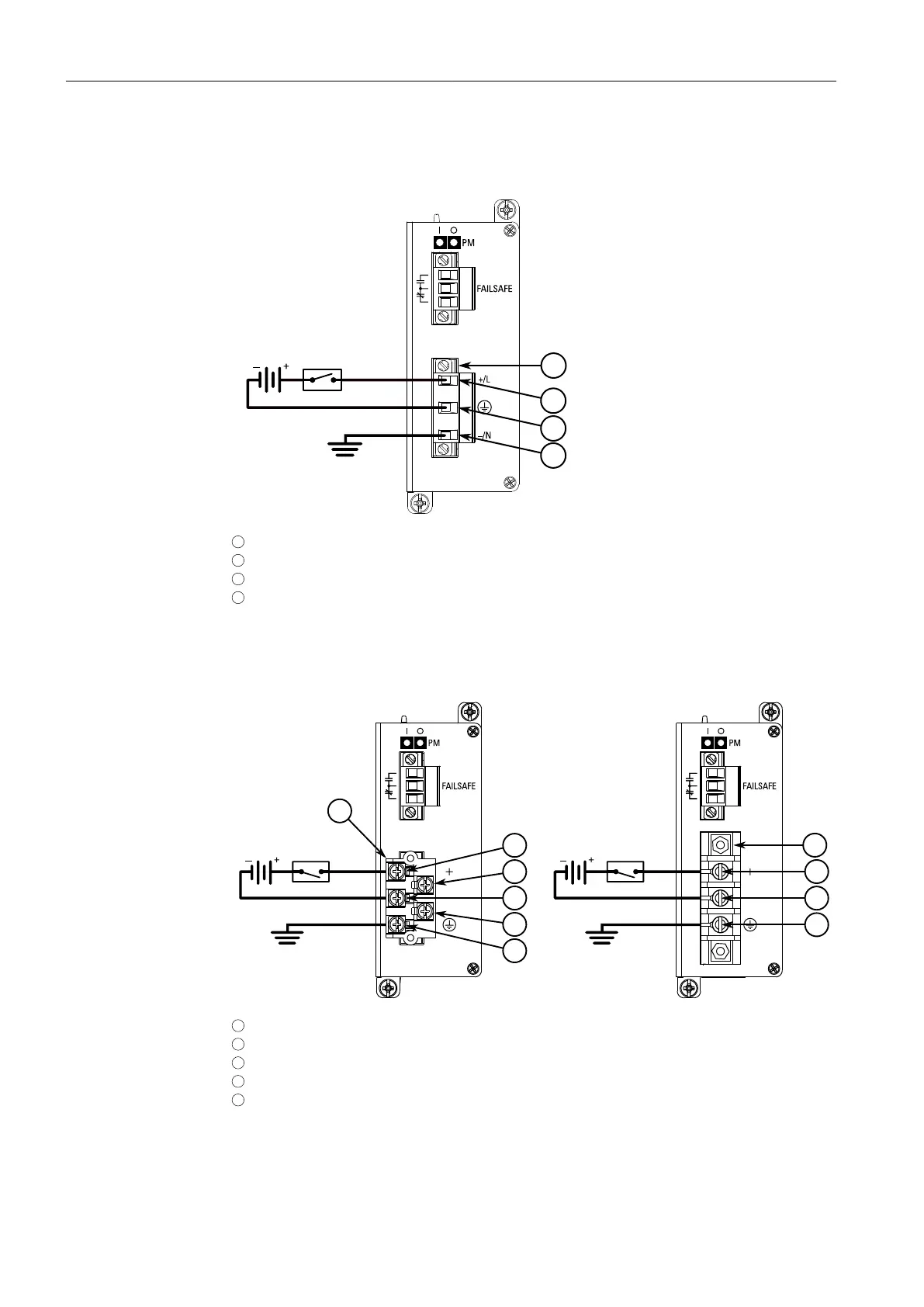

Figure2.8 DC Terminal Block Wiring – European-style (Euroblock) Terminal Block for 12P,
24P and 48P Power Supplies
1
5
1
2
3
4
5
6
4
6
1
Not Connected
2
Removable Screw Terminal Block
3
Non-removable Screw Terminal Block
4
Positive (+) Terminal
5
Negative (-) Terminal
RUGGEDCOM RX1511
Installation Manual, 04/2021, C79000-G8976-1056-20
15
