Device Management
3.1Connecting to the Device
Serial Console and Management Ports
Connect a workstation directly to the serial console or management ports to access
the boot-time control and RUGGEDCOM RX1511 interfaces. The serial console port
provides access to RUGGEDCOM RX1511 's console interface, while the management
port provides access to RUGGEDCOM RX1511's console and Web interfaces.
Connection to the console port is made using an RJ-45-to-DB9 console cable. The
following is the pin-out for the console port:

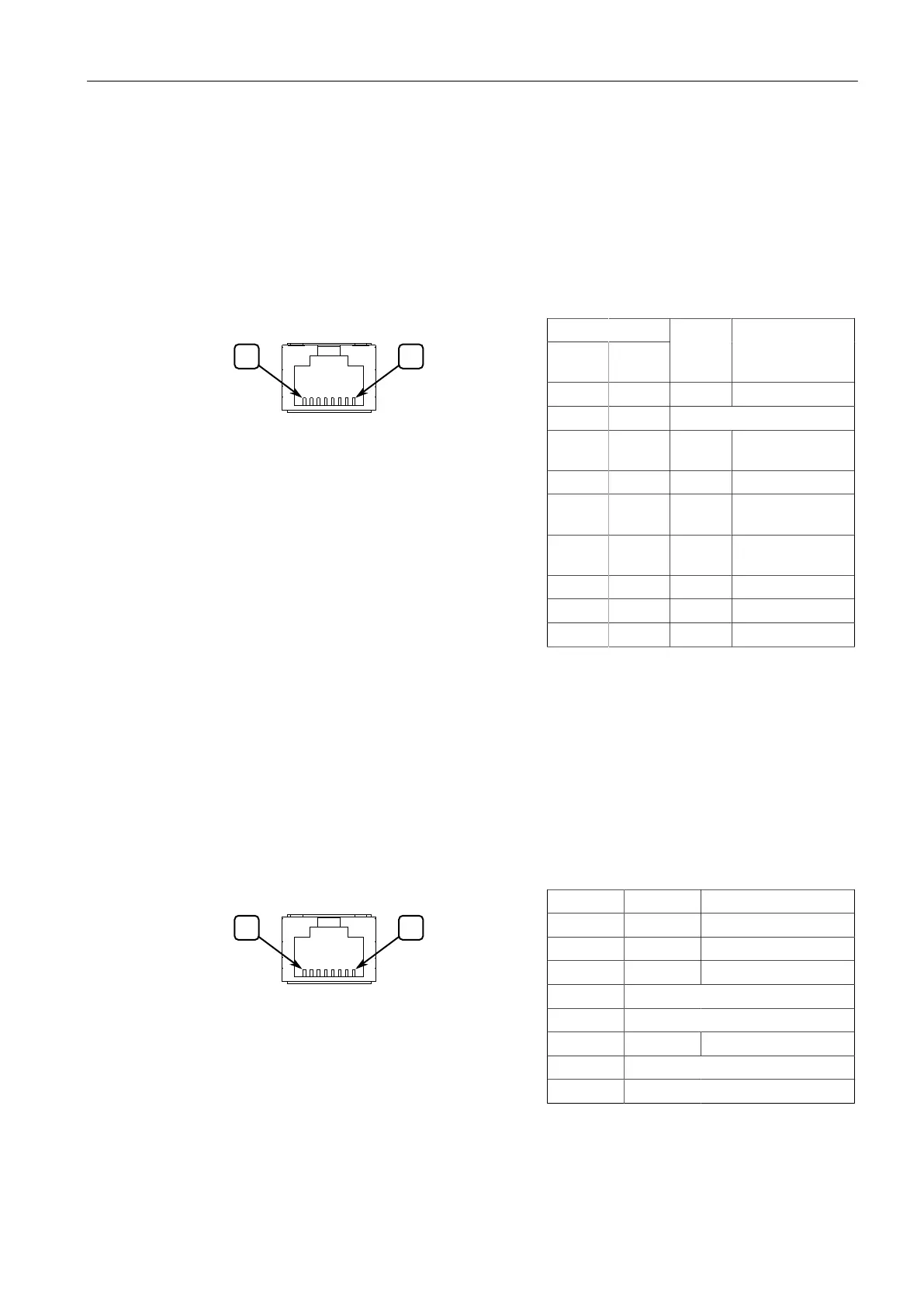

Figure3.1 RJ-45 Console Port Pin
Configuration
Pin
RJ-45
Male
DB9
Female
Name Description
1 6 DSR
a
Data Set Ready
2 1 Reserved (Do Not Connect)
3 4 DTR
a
>Data Terminal
Ready
4 5 GND Signal Ground
5 2 RxD Receive Data
(to DTE)
6 3 TxD Transmit Data
(from DTE)
7 8 CTS
b
Clear to Send
8 7 RTS
b
>Read to Send
9 RI
c
Ring Indicator
a
The DSR, DCD and DTR pins are connected together internally.
b
The CTS and RTS pins are connected together internally.
c
RI is not connected.
For information about how to connect to the device via the serial console port, refer
to the RUGGEDCOM ROX CLI Configuration Manual for the RUGGEDCOM RX1511.
For information about how to connect to the device via the management port,
refer to either the RUGGEDCOM ROX Web Interface Configuration Manual or the
RUGGEDCOM ROX CLI Configuration Manual for the RUGGEDCOM RX1511.
The management port is a 10/100Base-TX copper Ethernet port with an RJ-45
connector. The following is the pin-out for the management port:
Figure3.2 RJ-45 Management Port
Pin Name Description
1 RX+ Receive Data+
2 RX- Receive Data-
3 TX+ Transmit Data+
4 Reserved (Do Not Connect)
5 Reserved (Do Not Connect)
6 TX- Transmit Data-
7 Reserved (Do Not Connect)
8 Reserved (Do Not Connect)
20
RUGGEDCOM RX1511
Installation Manual, 04/2021, C79000-G8976-1056-20
