Device Management
3.3Accessing the CompactFlash Card
Inserting the CF card
To insert the CF card into the device, do the following:
NOTICE
The device should only be powered on when the CF card is present.
1. Make sure the device is powered down.
2. Remove the CF card access panel.
3. Insert the CF card into the slot until it is fully seated.
2
3
1
1
CompactFlash Card
2
Access Panel

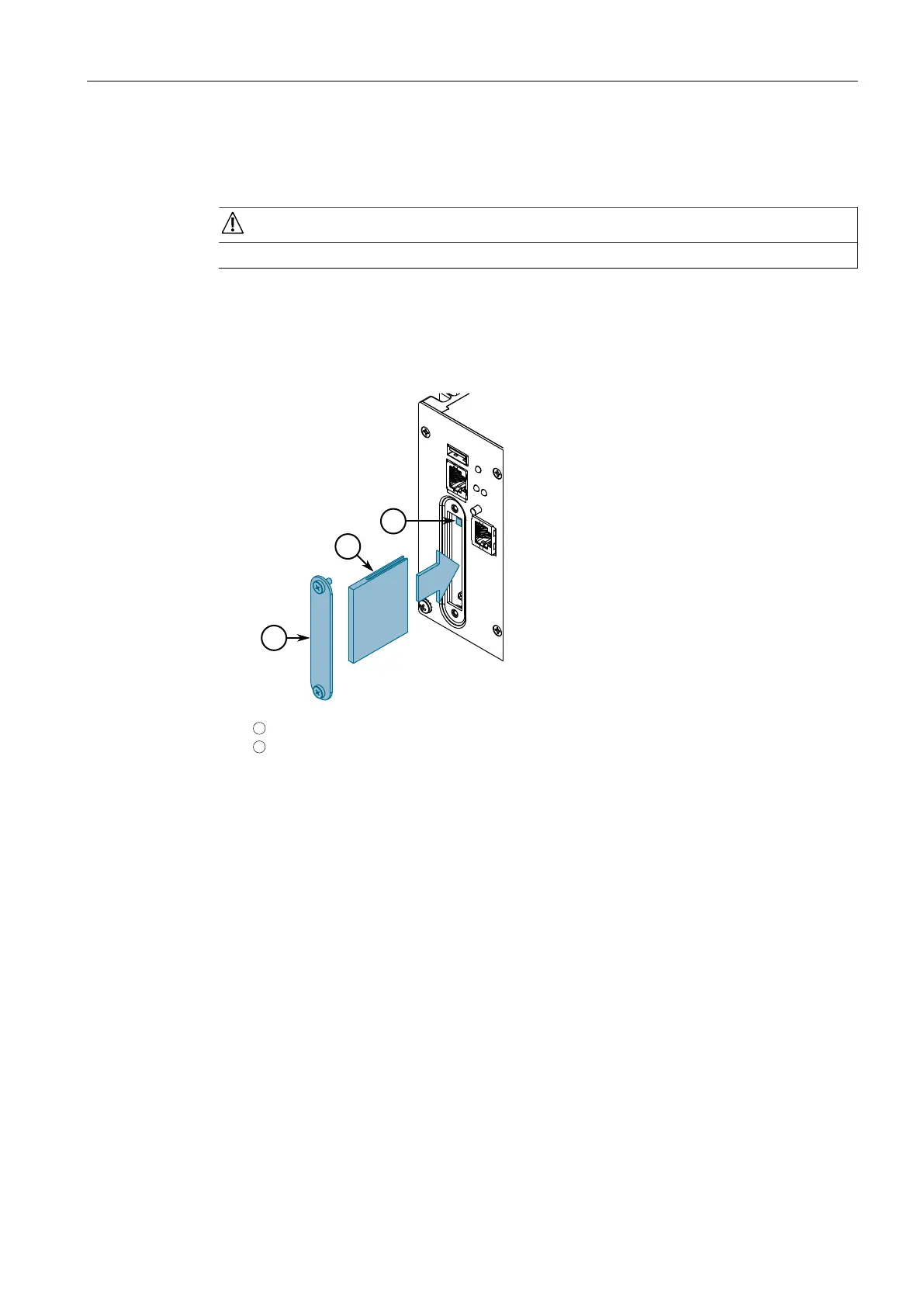

Figure3.3 Inserting the CF Card
4. Secure the CF card access panel to the chassis.
Removing the CF card
To remove the CF card from the device, do the following:
1. Make sure the device is powered down.
