Technical Specifications

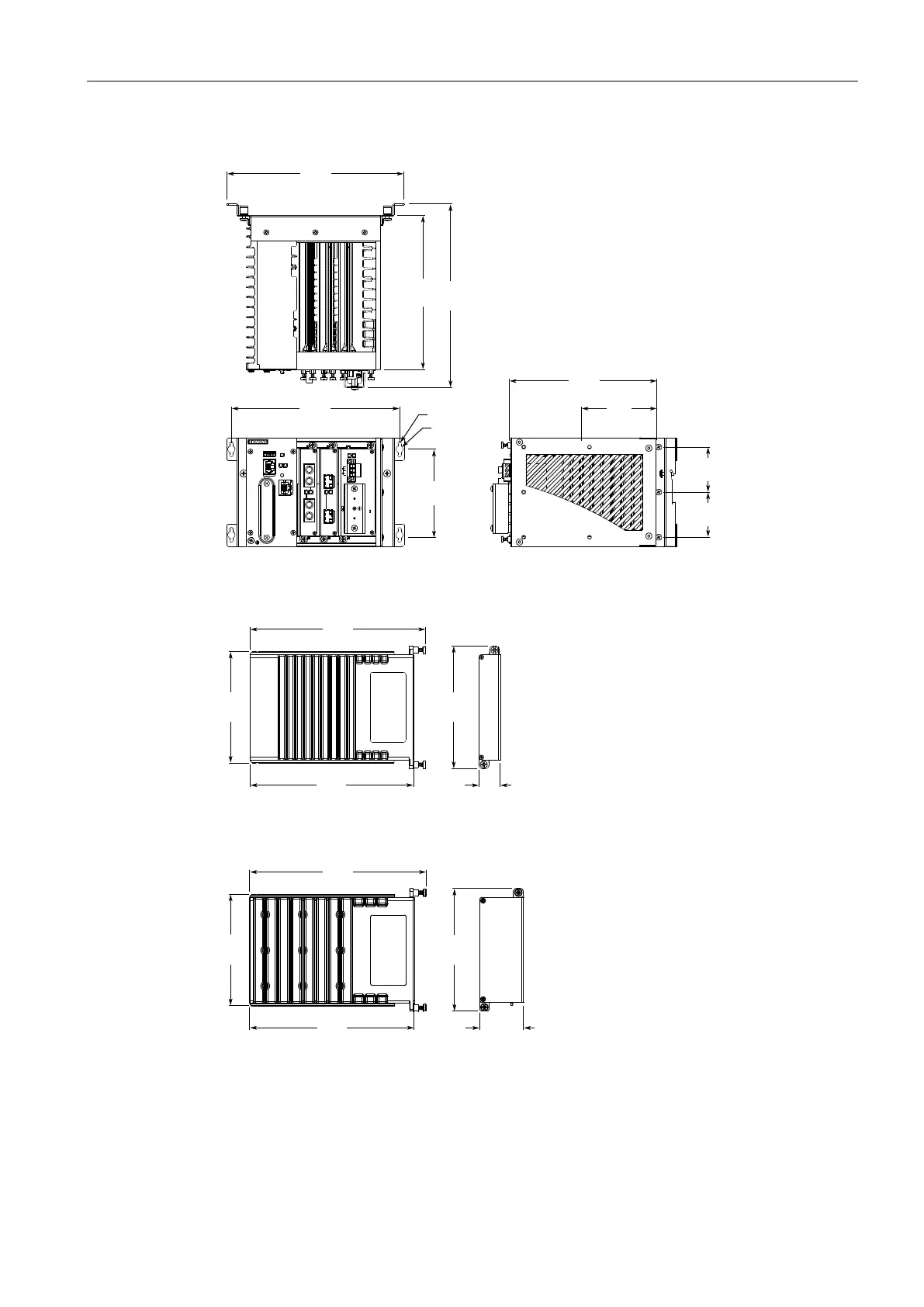

5.5Dimension Drawings
199.9
207.3
174.2
189.9
8.1
152.4
78.2
50.8
96.5
4.1
50.8
Figure5.2 Panel and Din Rail Mount Dimensions
19.7
151.4
102.9
113.3
162.5
Figure5.3 Line Module Dimensions
162.5
40.6
151.8
102.9
113.4
Figure5.4 Power Module Dimensions
48
RUGGEDCOM RX1511
Installation Manual, 04/2021, C79000-G8976-1056-20
