NOTE
Labeling of PROFINET interfaces X150, X160 and X130
Labeling of PROFINET interfaces X150, X160 and X130 (③, ④, ⑤) to the left next to the RJ45
sockets was replaced in 2021 by a label plate (⑥). During the transition phase, the SIMATIC
Drive Controllers can also have both types of labeling.
NOTICE
Electrostatic discharge without grounding
If there is no grounding or incorrect grounding, electronic components in the device could
be damaged by electrostatic discharges (ESD).
Open the cover only when you have grounded yourself using one of the following measures:
• Ground yourself on the cabinet or ground terminal.
• Wear an ESD wrist strap.
• Wear ESD shoes or ESD grounding strips in ESD areas with a conducting floor.
3.7.3 Top view of SIMATIC Drive Controller

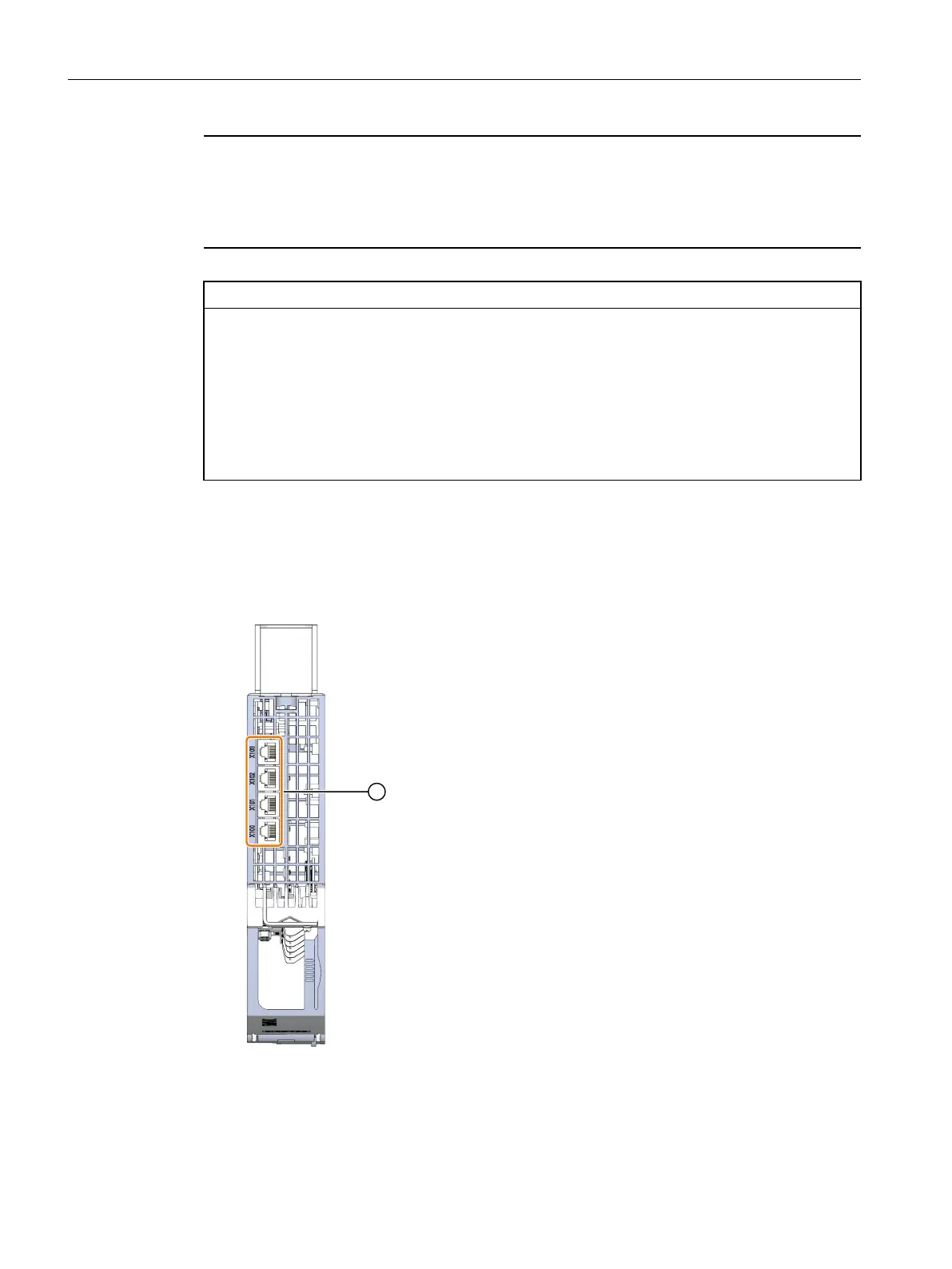

The figure below shows the top of the SIMATIC Drive Controller with the four DRIVE-CLiQ
interfaces X100 to X103.
① X100 to X103: 4 × DRIVE-CLiQ interface
Figure 3-6SIMATIC Drive Controller DRIVE-CLiQ interfaces
34
SIMATIC Drive Controller
Equipment Manual, 11/2022, A5E46600370-AC
Product overview
3.7 Operator controls, displays and connection elements
