Additional information
The Runtime licensing section in the SIMATIC Drive Controller system manual
(https://support.industry.siemens.com/cs/ww/en/view/109766665) describes which licensed
functions are available for CPUs and SINAMICS Integrated.
You can find a detailed description of the functions of SINAMICS S120 CU320-2 in the SINAM
ICS S120 Drive Functions (https://support.industry.siemens.com/cs/us/en/view/109754299)
function manual.
3.7 Operator controls, displays and connection elements
3.7.1 View of SIMATIC Drive Controller with covers

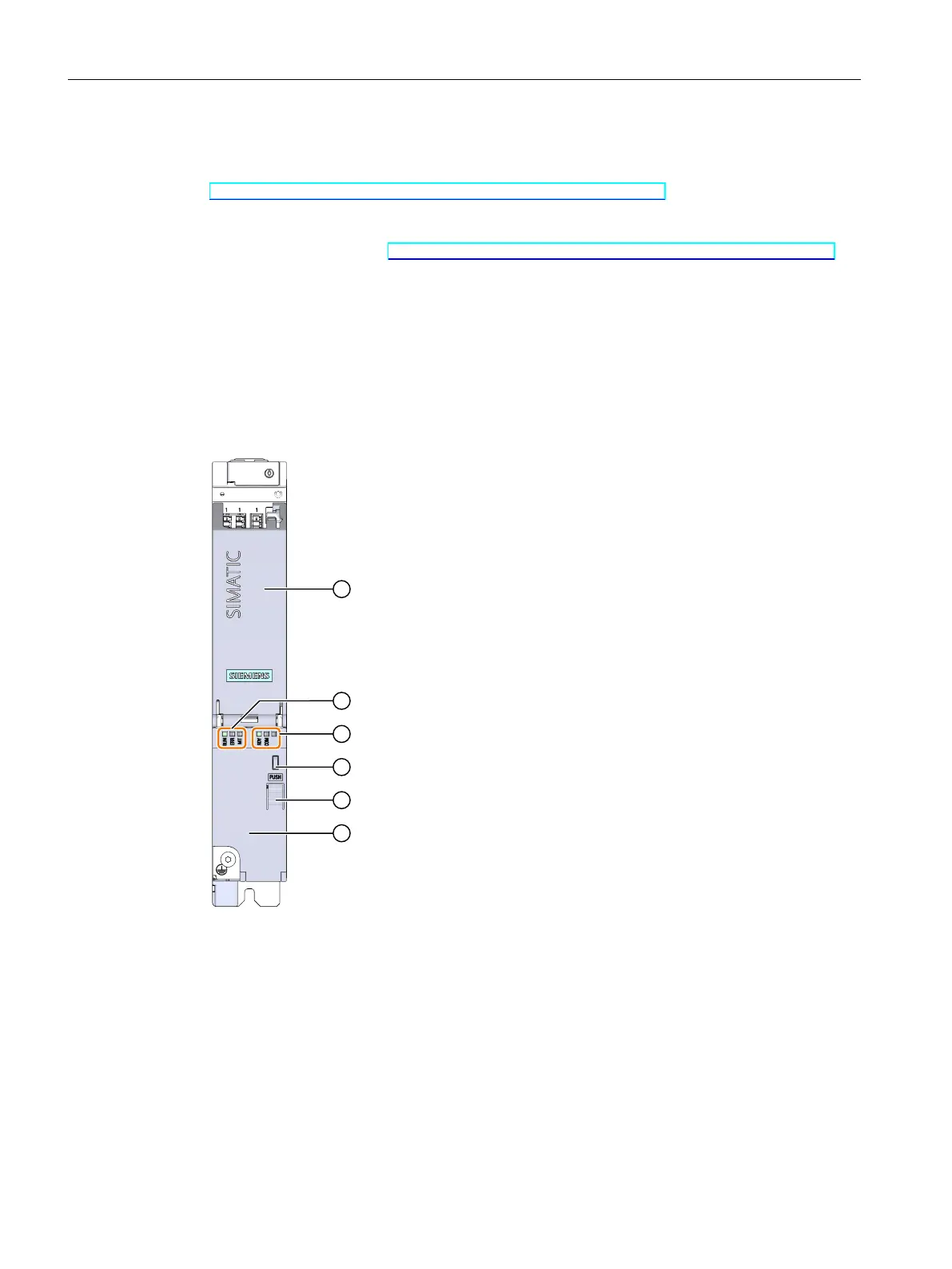

The following figure shows the front view of the SIMATIC Drive Controllers.
① Top cover
② 3 LEDs for CPU (RUN, ERR, MT)
③ 3 LEDs for SINAMICS Integrated (RDY, COM, third LED has no assigned function)
④ Rings for access security
⑤ Pushbutton for opening and closing the bottom cover
⑥ Bottom cover
Figure 3-4SIMATIC Drive Controller front view
32
SIMATIC Drive Controller
Equipment Manual, 11/2022, A5E46600370-AC
Product overview
3.7 Operator controls, displays and connection elements
