Technical specifications
CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
146 Manual, 09/2016, A5E35306440-AB
Power reduction (derating) to total current of digital outputs (per power supply)

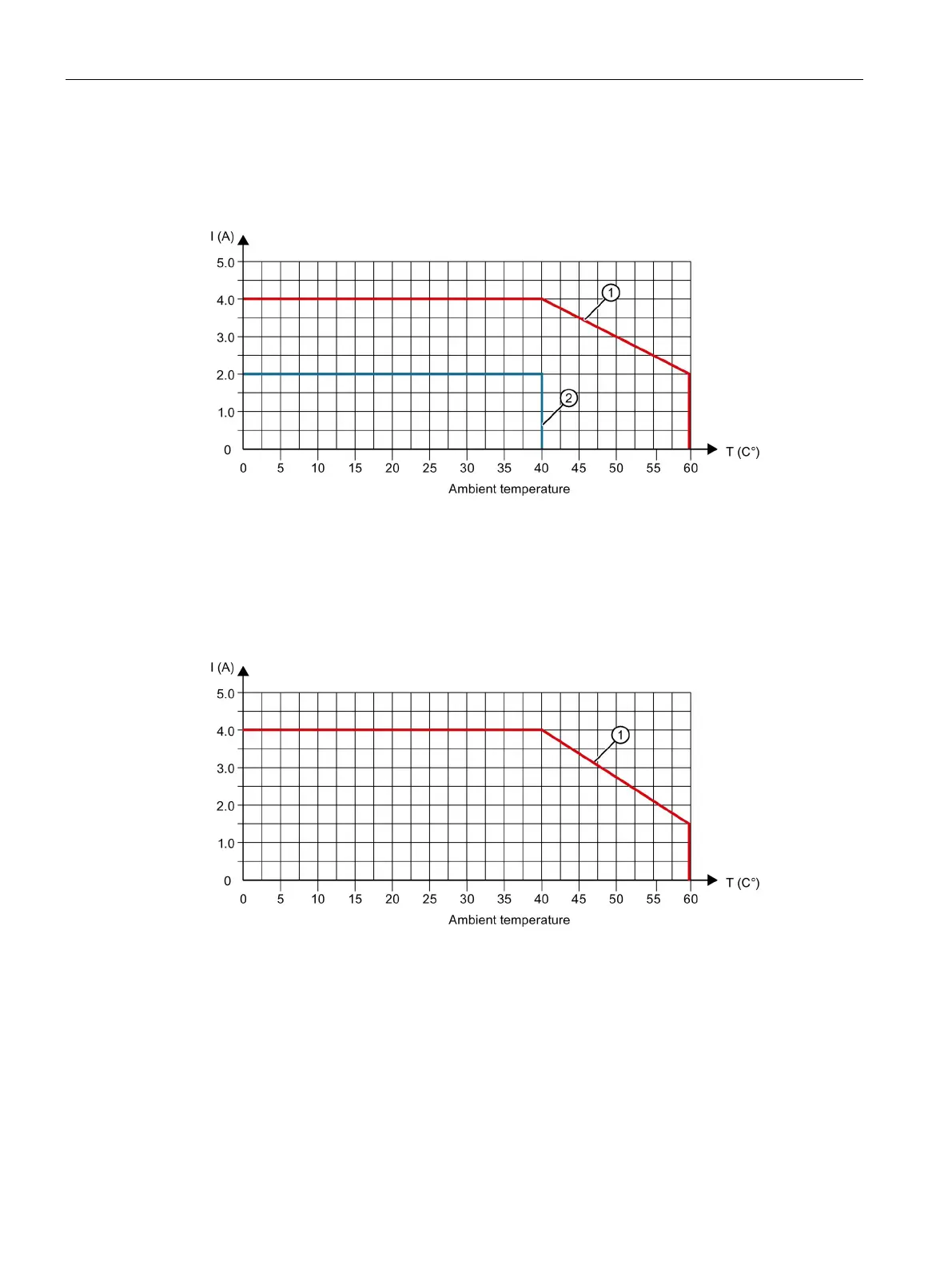

The following figure shows the load rating of the digital outputs in relation to the mounting
position and the ambient temperature.
Horizontal mounting position
Vertical mounting position
Figure 7-1 Loading capacity of the digital outputs per mounting position
The following trends shows the load rating of the digital outputs when technology functions
are used in dependence on the ambient temperature.
Horizontal mounting position
Figure 7-2 Load rating of the digital outputs when technology functions are used
