Siemens SIMATIC S7-1500T User Manual

Interrupts/diagnostics alarms
6.1 Status and error displays
CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
120 Manual, 09/2016, A5E35306440-AB
6.1.3
Status and error displays of the digital on-board I/O
LED displays
The figure below shows an example of the LED displays (status and error displays) of the
first module of the digital on-board I/O. Corrective measures for diagnostics alarms can be
found in the section Interrupts and diagnostics of the digital on-board I/O (Page 125).

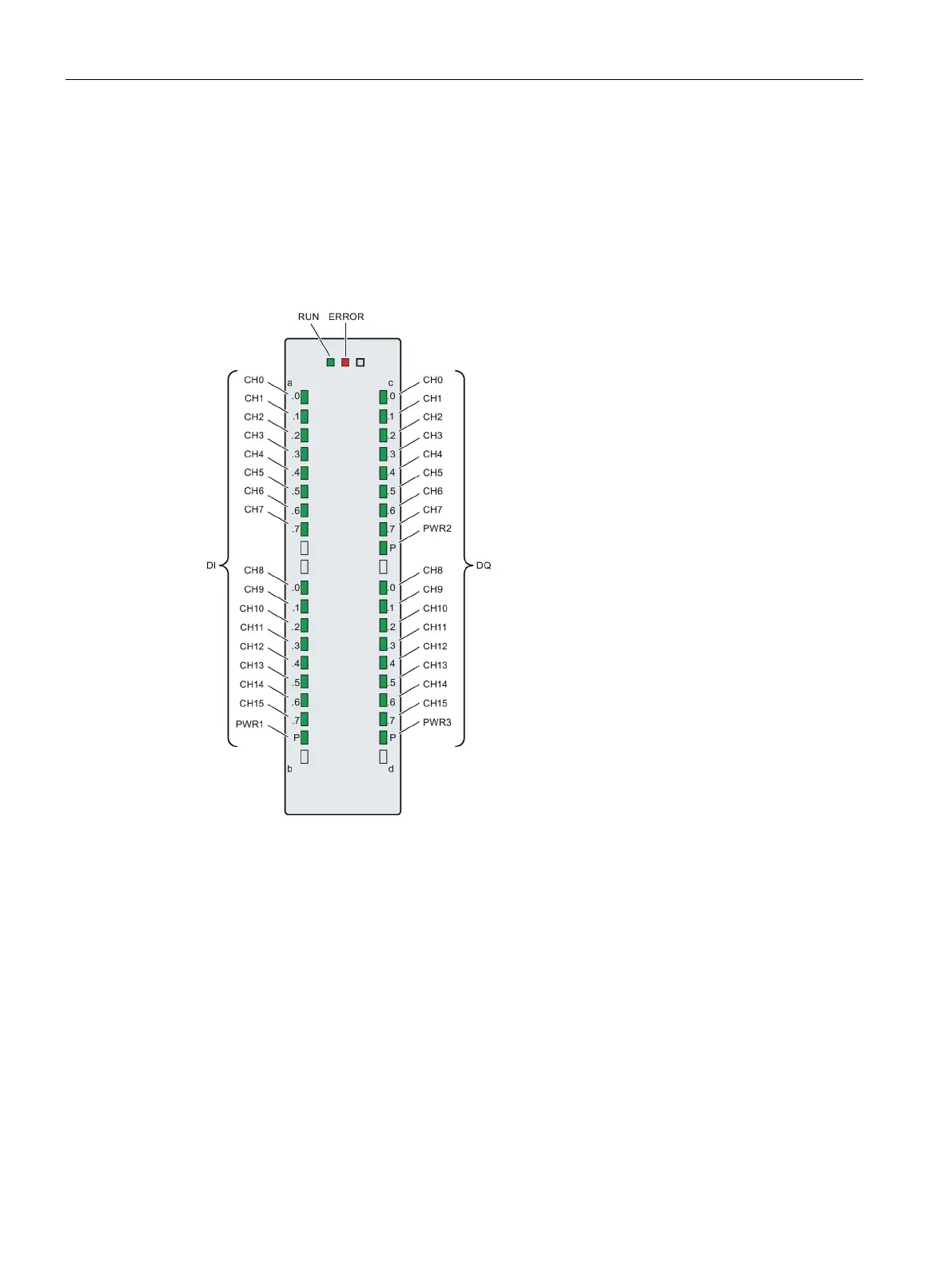

Figure 6-3 LED displays
