CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
Manual, 09/2016, A5E35306440-AB
148
Dimension drawings
A
This appendix contains the dimension drawings of the compact CPU installed on a mounting
rail. You must take the dimensions into consideration for installation in cabinets, control
rooms, etc.

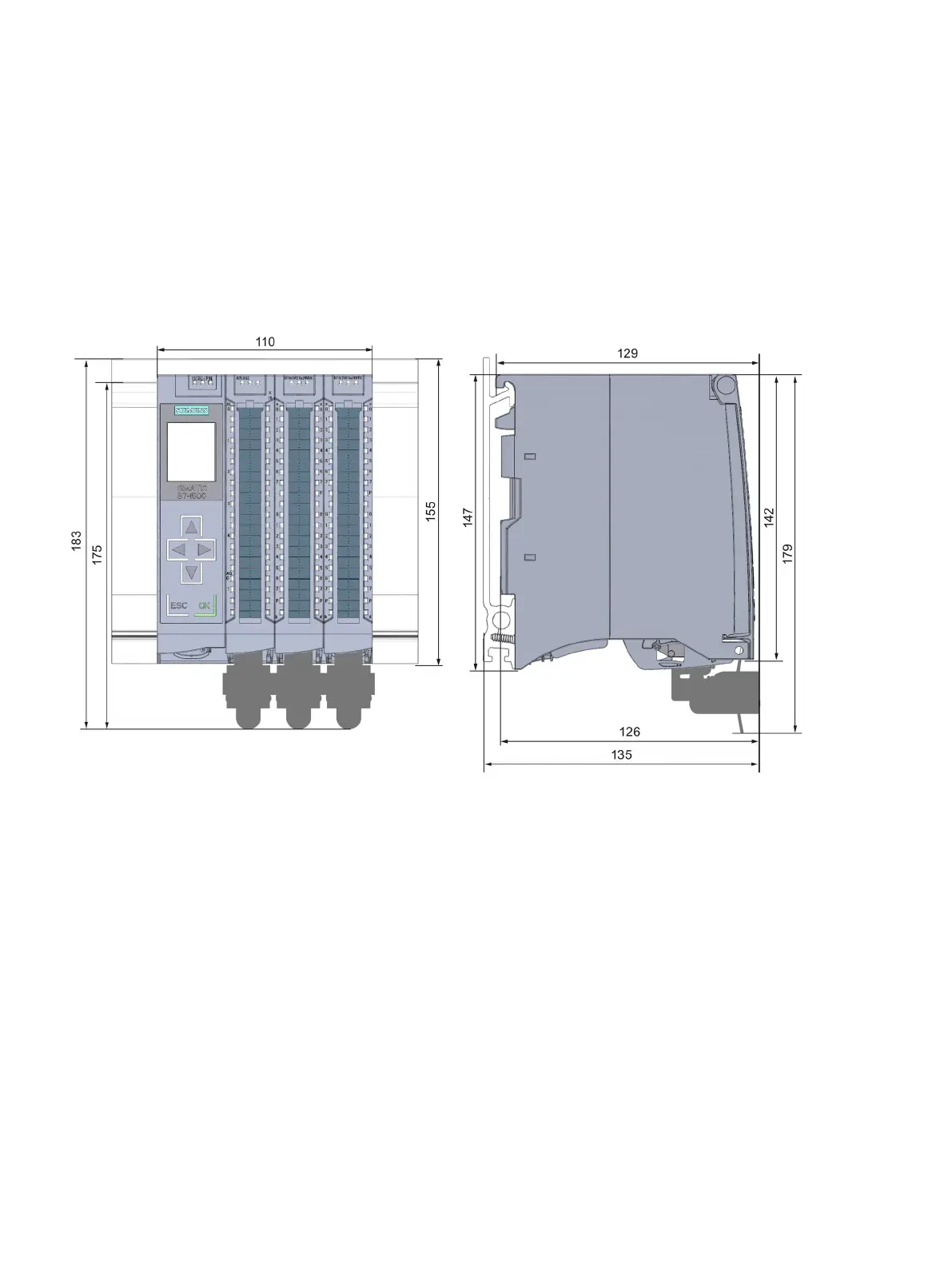

Figure A-1 Dimension drawing of CPU 1512C-1 PN – front and side views
