Interrupts/diagnostics alarms
6.1 Status and error displays
CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
118 Manual, 09/2016, A5E35306440-AB
6.1.2
Status and error displays of the analog on-board I/O
LED displays
The figure below shows the LED displays (status and error displays) of the analog on-board
I/O.

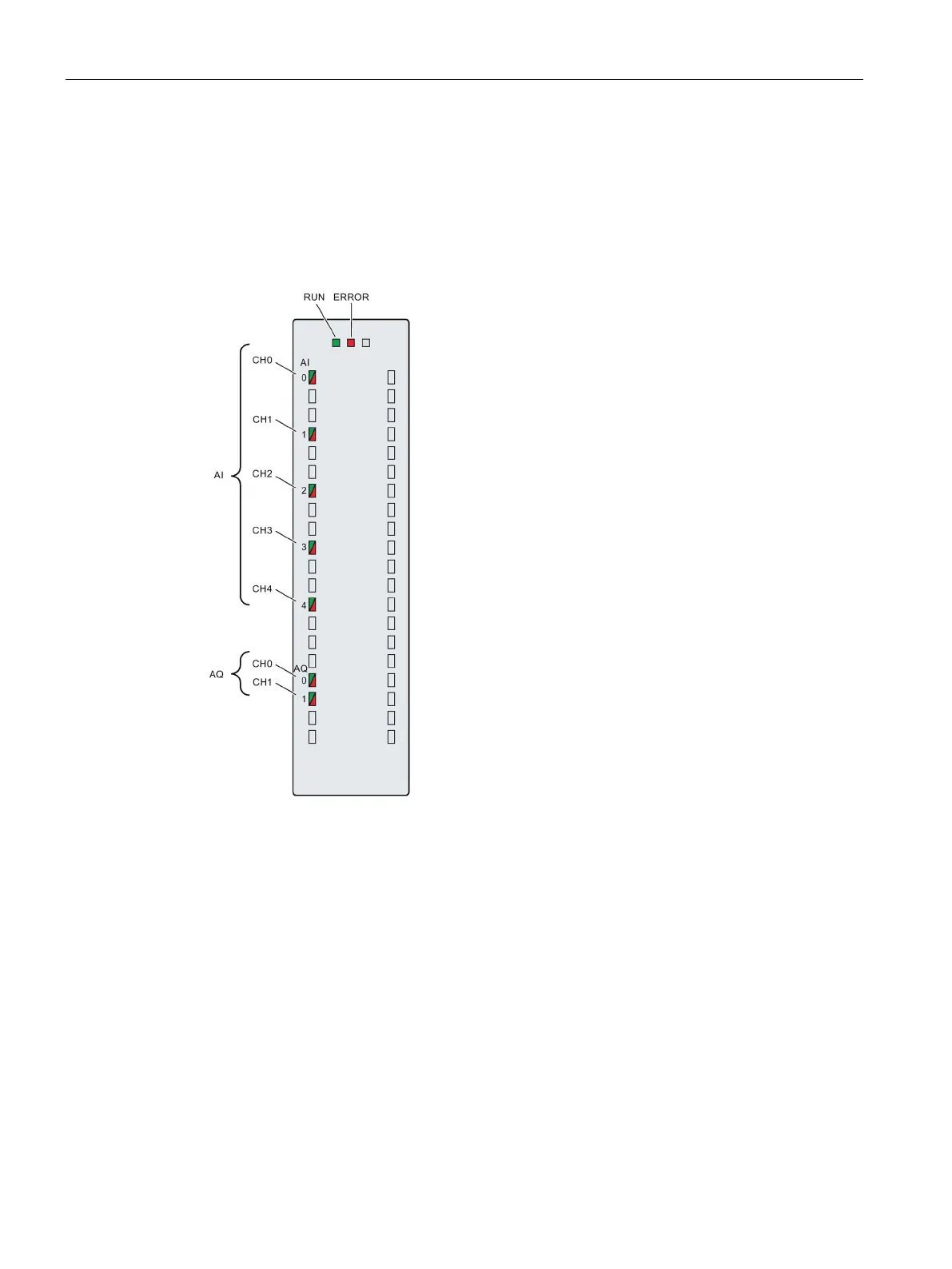

Figure 6-2 LED displays
