Siemens SIMATIC S7-1500T User Manual

Parameter data records
B.6 Structure of a data record for output channels of the digital on-board I/O
CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
Manual, 09/2016, A5E35306440-AB
161
Data record structure
The example in the figure below shows the structure of data record 64 for channel 0. The
structure is identical for channels 1 to 31. The values in byte 0 and byte 1 are fixed and must
not be changed.
You enable a parameter by setting the corresponding bit to "1".

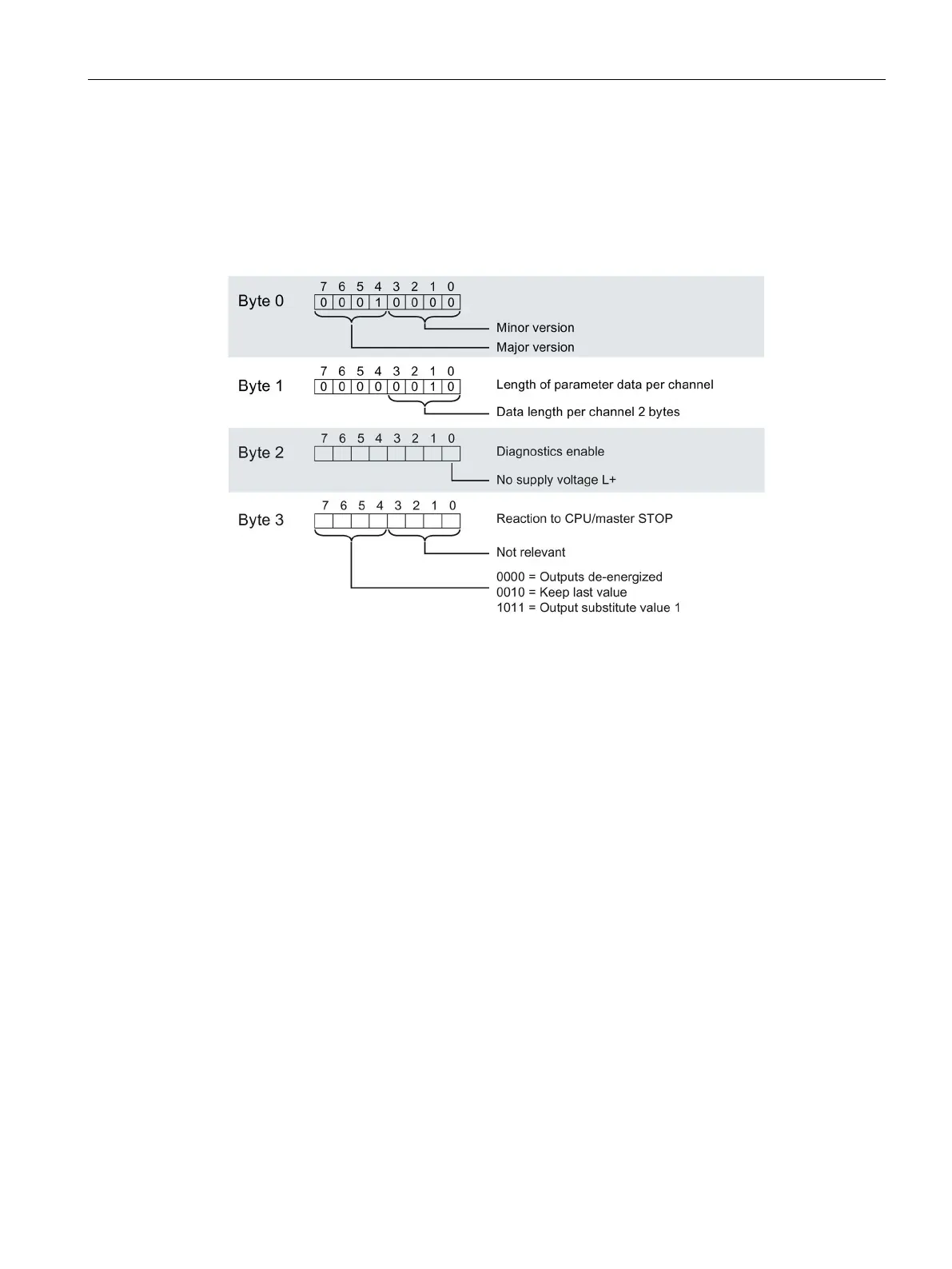

Figure B-5 Structure of data record 64: Bytes 0 to 3
