Analog value processing
C.1 Conversion method
CPU 1512C-1 PN (6ES7512-1CK00-0AB0)
176 Manual, 09/2016, A5E35306440-AB
The individual measured values are smoothed by filtering. The smoothing can be set in
4 levels and channel-selective in STEP 7 (TIA Portal).
Smoothing time = Smoothing (k) x configured integration time

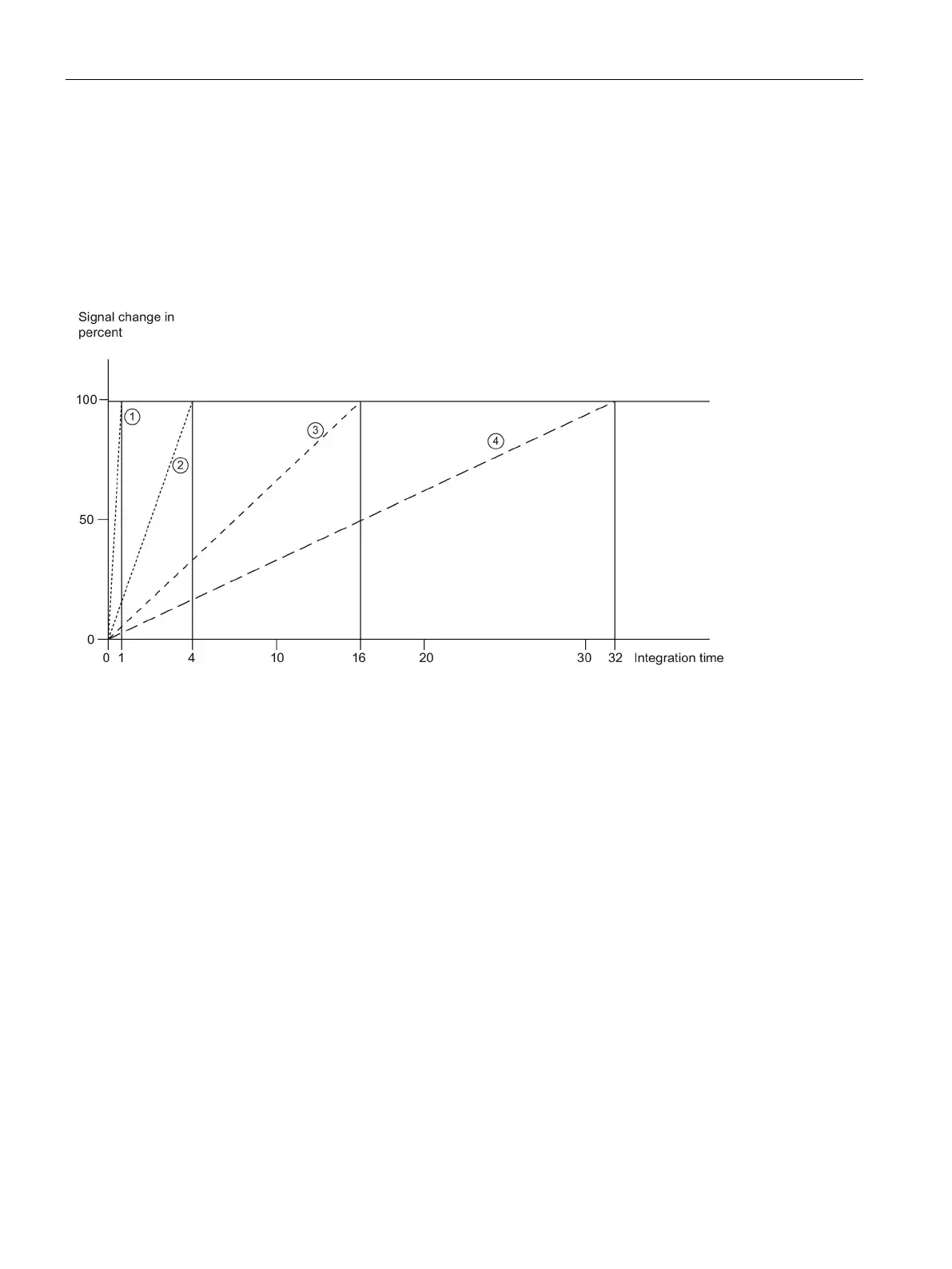

The following figure shows the time it takes for the smoothed analog value to reach
approximately 100 % depending on the set smoothing. This is valid for all signal changes at
the analog input.
None (smoothing = 1 x integration time)
Weak (smoothing = 4 x integration time) *
Medium (smoothing = 16 x integration time) *
Strong (smoothing = 32 x integration time) *
* The smoothing time can increase by 1 x integration time.
Figure C-5 Smoothing time depending on the set smoothing level
