Siemens SIMATIC S7-200

Sequencer
5.16 Solution description: Activating the outputs
Getting Started - Advanced
58 Training Documents, 09/2007, A5E01469795B
5.16 Solution description: Activating the outputs

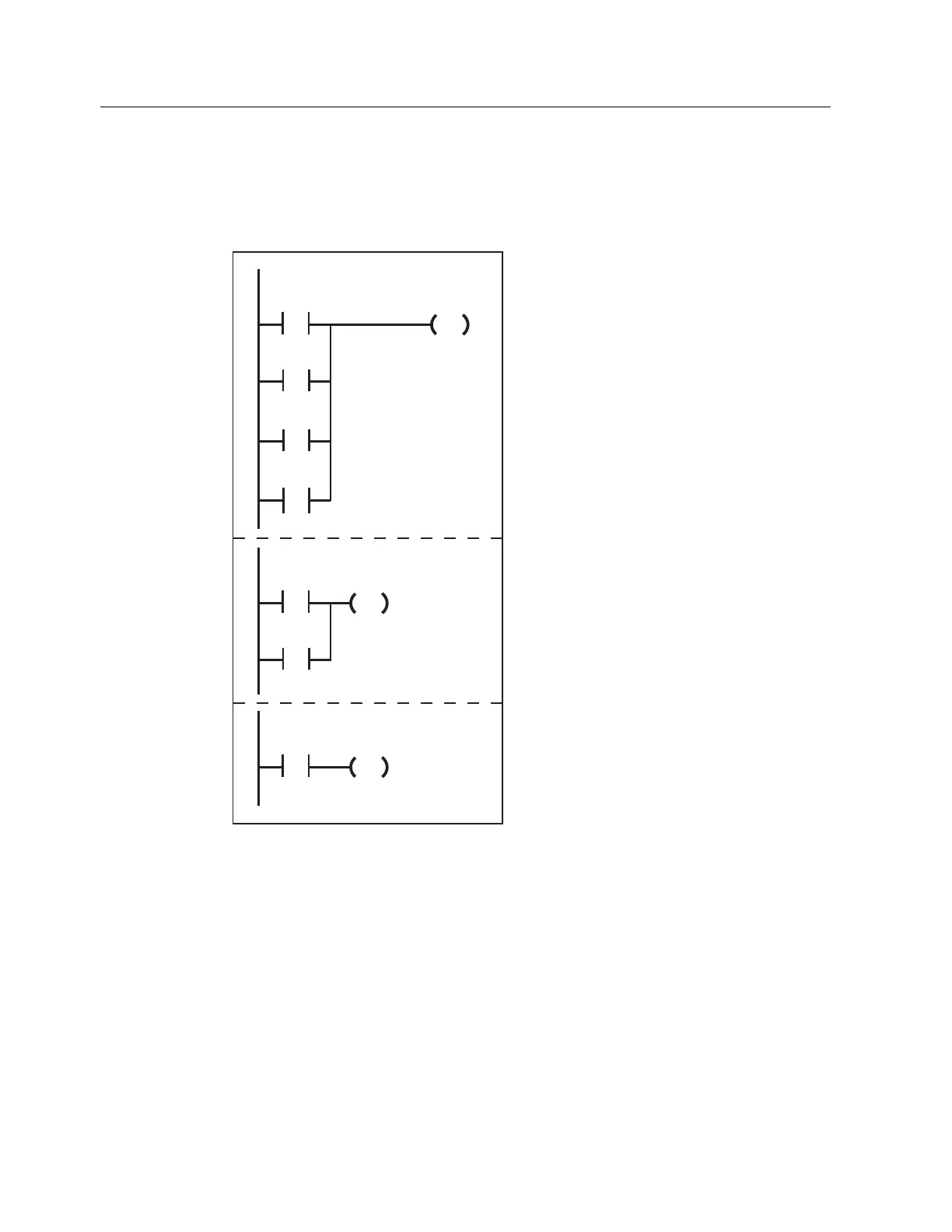

Program section 2 - Setting the outputs
Activate output Q0.0 (drive clockwise)
Output Q0.0 is "1" in steps 1, 2, 3, 4, i.e. if
M0.1 or M0.2 or M0.3 or M0.4 are "1".
Activate output Q0.1(direction reversal)
Output Q0.1 is "1" in steps 3 and 4, i.e. if
M0.3 or M0.4 are "1".
4
0
0
4
0
4
0
0
0
0
1HWZRUN
1HWZRUN
1HWZRUN
Activate output Q0.2(feed on)
If memory bit M0.2 = "1" output Q0.2 will
become "1".
