Expert Functions
5.7 Triggering an output cam using the TM17 terminal module
Connection of the SINAMICS S120 to the Technology CPU
168 Product Information, 09/2011, A5E00480378-04

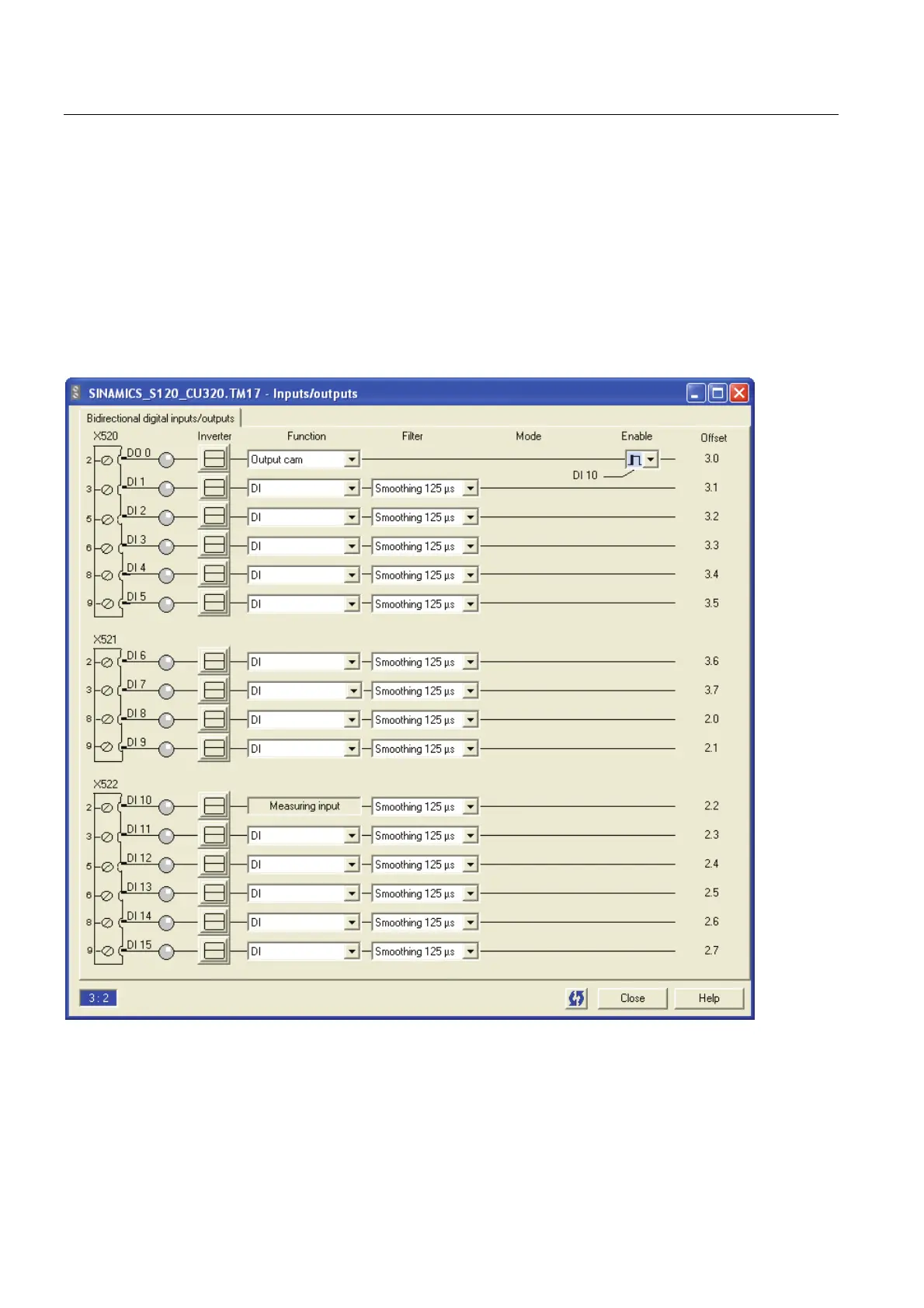

4. For the further processing, note the entry from the "Offset" column. This value, in this
example "3.0", is needed for subsequent address assignment of the output cam.
In the next step, the input/output addresses must be assigned to the TM17 terminal
module so that it can be reached on the PROFIBUS DP(DRIVE). You will need to align
with HW Config.
5. You select how the output cam output is to be enabled in the "Enable" column. When you
use the "edge-triggered" or "level-triggered" mode, a digital input of the TM17 will be
automatically assigned to the output cam output. This assigned input serves as the
hardware enable signal for the output cam.
