5.7 Triggering an output cam using the TM17 terminal module
Connection of the SINAMICS S120 to the Technology CPU
170 Product Information, 09/2011, A5E00480378-04
Icon Description

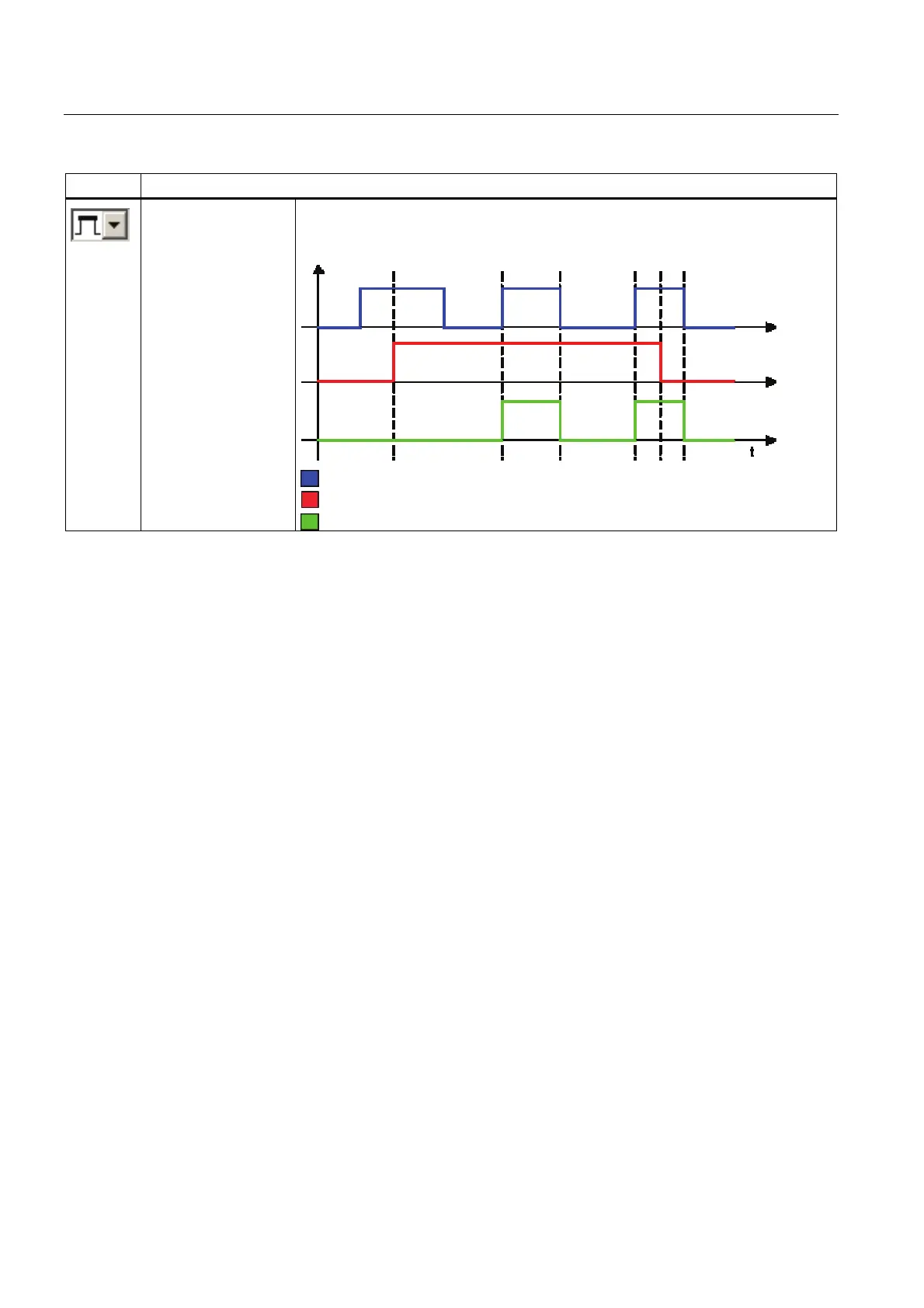

Level-triggered The output cam will continue to be output at the output while the output cam in the
technology object is active and a parameterized enable signal is present at the
TM17 High Feature.
Switching signal for output cam TO
Digital input for enable
Digital output of the output cam
