Consistent Data
7.3 Consistent Reading and Writing of Data from and to DP Standard Slaves/IO Devices
S7-400 Automation System, CPU Specifications
Manual, 10/2006, 6ES7498-8AA04-8BA0
7-5
Example:

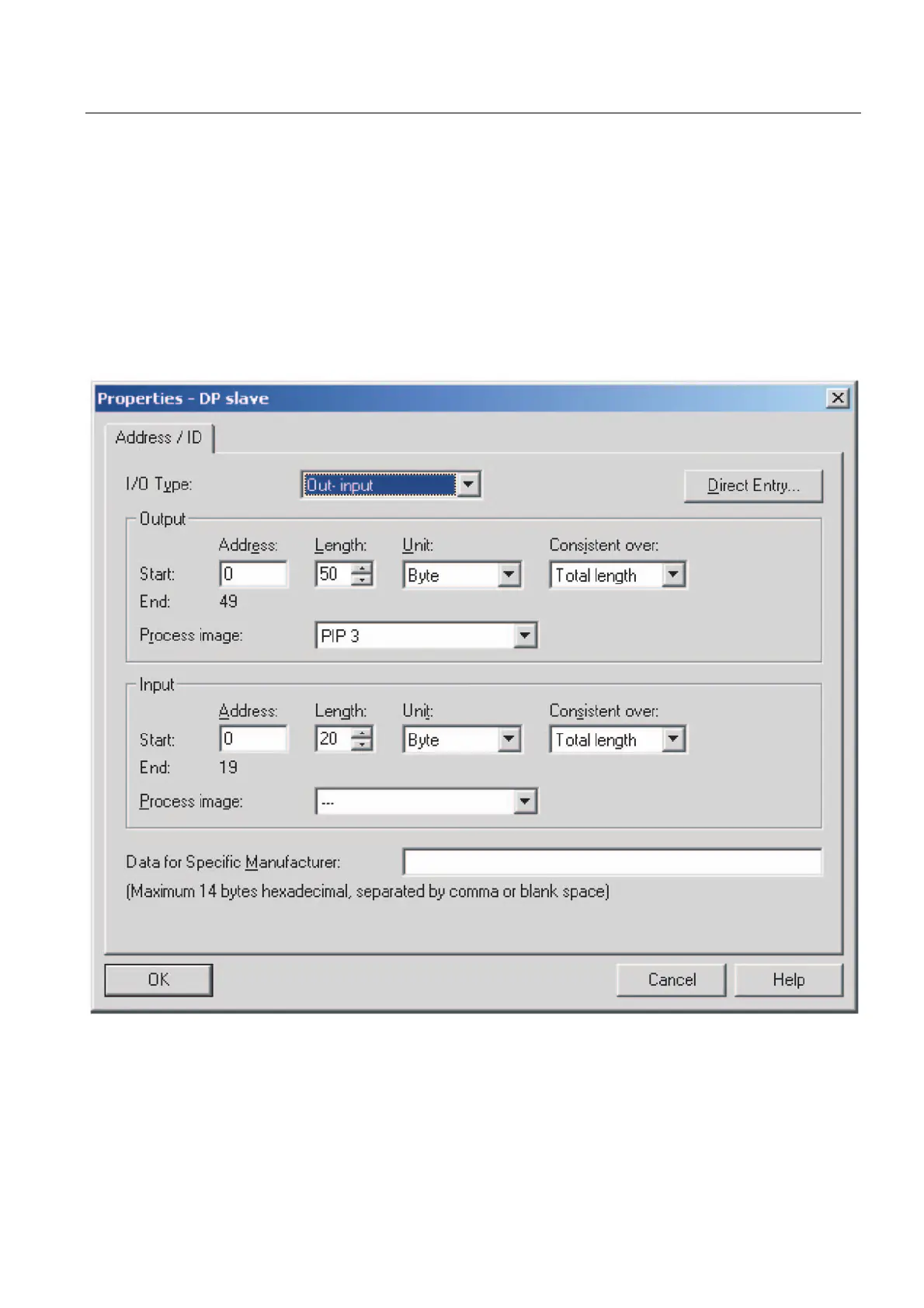

The following example (of the process image partition 3 "TPA 3") shows such a configuration
in HW Config:
● TPA 3 at output: These 50 bytes are stored consistent in the process image partition 3
(pull-down list "Consistent over -> entire length") and can therefore be read through the
normal "load input xy" commands.
● Selecting "Process Image Partition -> ---" under input in the pull-down menu means: do
not store in a process image. Then the handling can only be performed using the system
functions SFC14/15.
