Siemens Simatic S7-400 - 2 Structure of a CPU 41 X; Control and Display Elements of the Cpus

S7-400 Automation System, CPU Specifications
Manual, 10/2006, 6ES7498-8AA04-8BA0
2-1
Structure of a CPU 41x
2
2.1 Control and display elements of the CPUs
Control and Display Elements of the CPU 41x-3PN/DP
,PSULQWRIPRGXOHGHVLJQDWLRQSURGXFWYHUVLRQ
VKRUWRUGHUQXPEHUDQGILUPZDUHYHUVLRQ
0HPRU\FDUGVORW
0RGHVHOHFWRUVZLWFK
%HQHDWKFRYHU
03,352),%86b'3
LQWHUIDFH
6HULDOQXPEHU
3RZHUVXSSO\H[WHUQDO
EDFNXSYROWDJH
31LQWHUIDFH
5HFHSWDFOHIRU
LQWHUIDFHPRGXOH
'DWDPDWUL[FRGH
/('V,17)(;7)
%86)%86),)0)
)5&(0$,17581
6723
/('/,1.
/('/,1.
/('5;7;
/('5;7;
0$&DGGUHVV
x
EXT.-BAT T
5 VDC to 15 VDC
CPU 416-3 PN/DP
6ES7416-3ER05-0AB0
SVPS317696
V5.0.0.
INTF
EXTF
BUS1F
FRCE
RUN
STOP
RUN
STOP
MRES
X1
MPI/DP
BUS5F
IFM1F
IF1
X5 P1
X5 P2
MAINT
0$&$'';;;;;;
FOR LAN ONLY

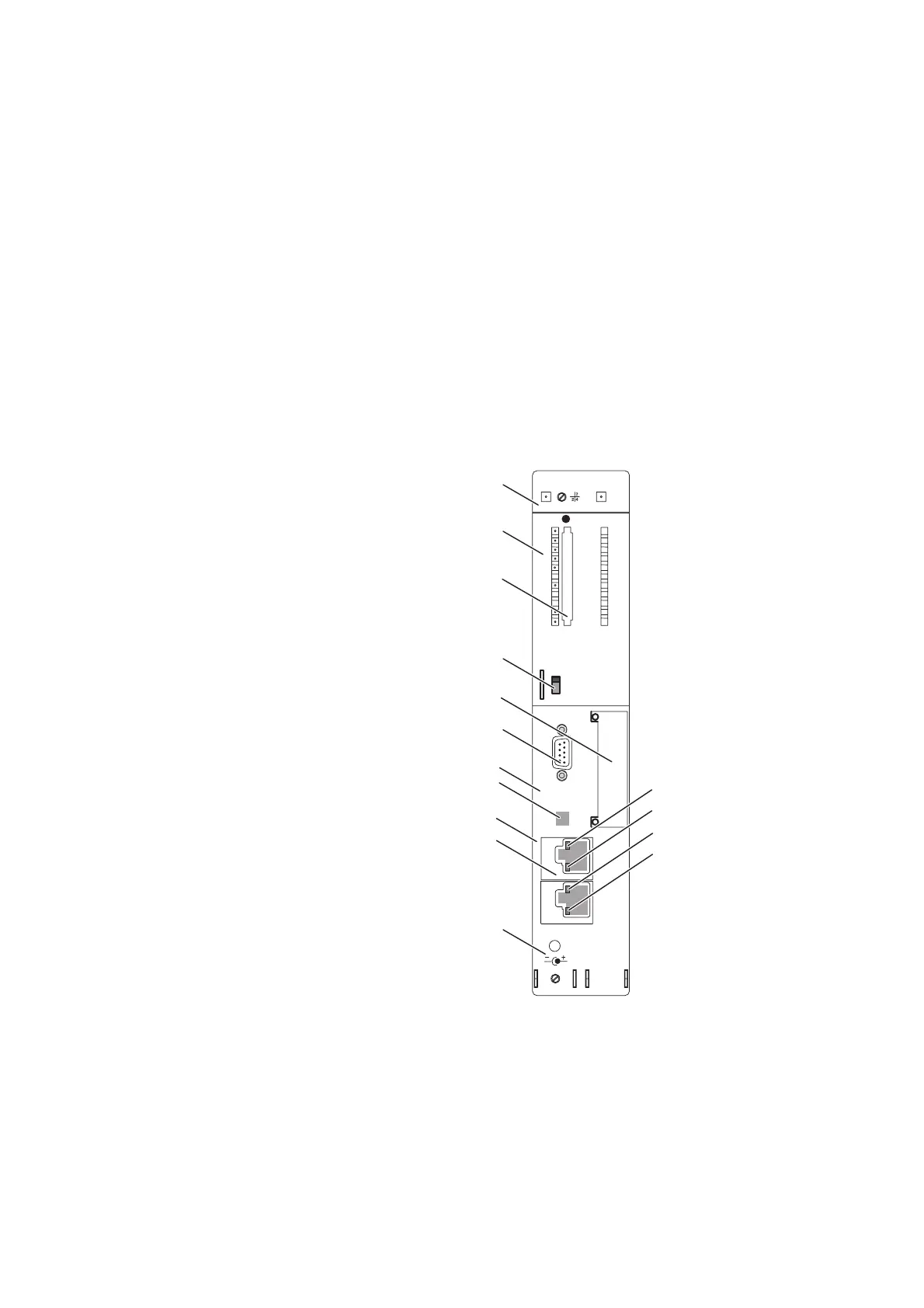

Figure 2-1 Location of the Control and Display Elements of the CPU 41x-3PN/DP
