Gateway Installation and Configuration
3-2
TIWAY I Gateway User Manual
3.1 Installing the TIWAY I Gateway
There
are three possible places on the Gateway where the two L-shaped
mounting brackets can be located. Depending on how you want to mount the
Gateway
, attach the brackets to the appropriate locations, as shown in
Figure 3-1.
I00xxxx
Mounting
brackets
located at rear of
Gateway
Mounting brackets
located at top of
Gateway
Gateway mounted behind panel.
Brackets attached at front

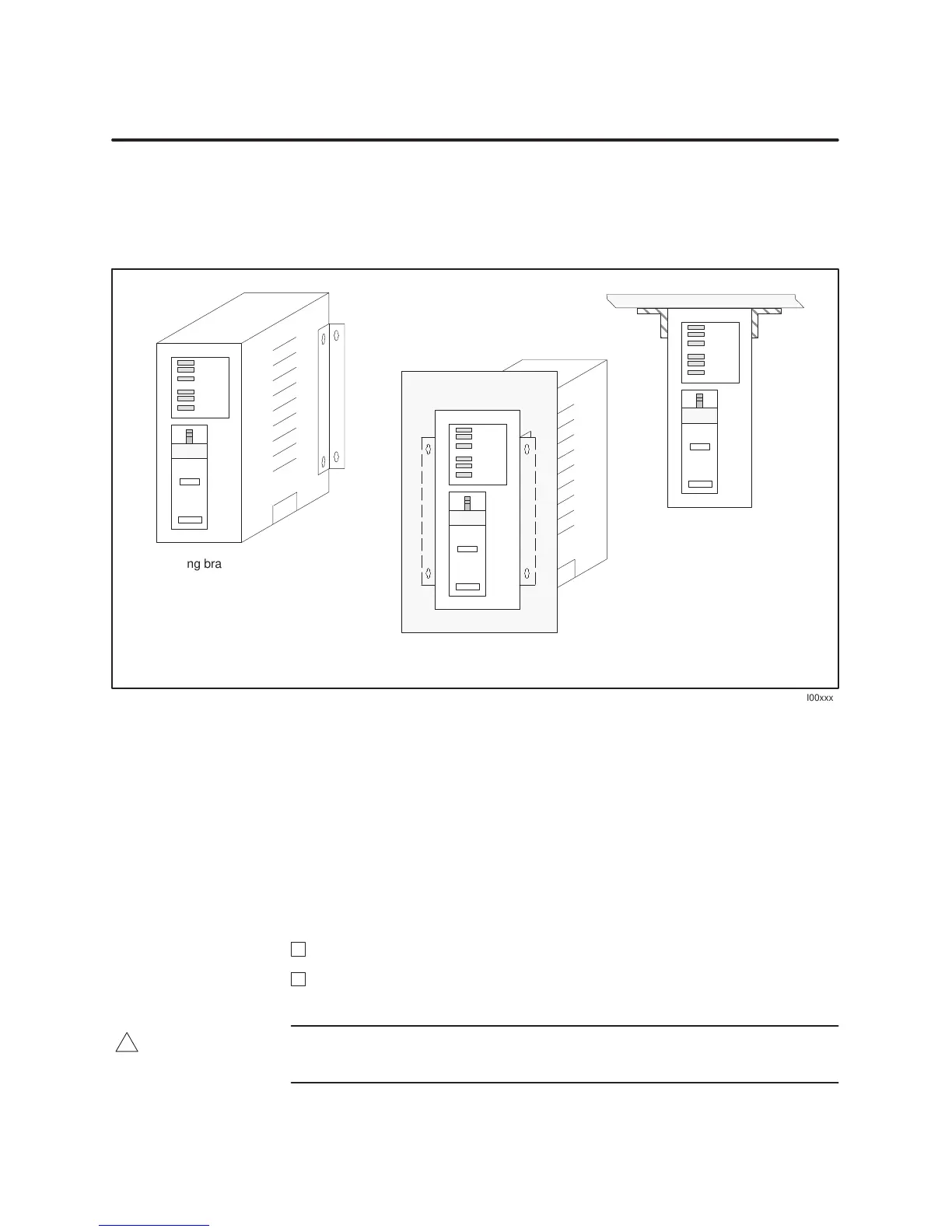

Figure 3-1 Possible
Bracket Locations for Mounting Gateway
Mount the Gateway in a suitable enclosure (such as a NEMA panel) to
reduce the possibility of shock hazard resulting from accessibility of live
parts. Protect the Gateway from water or moisture sprays, and ensure that
the temperature does not exceed the range of 0
°
to 60
°
C.
Y
ou can also mount the Gateway in a 19-inch rack. A rack mount kit is
available from Siemens with the following order numbers. (Refer to the
Installation Guide shipped with each rack mount kit.)
PPX:500–7205 — for use with Gateway models –7301 and –7303
PPX:500–7206 — for use with Gateway models –7302 and –7304
Be
sure to allow adequate air flow around the air vents of the
Gateway to avoid damage to the unit through overheating.
Basic
Mounting
Guidelines
CAUTION
!
