Product Overview
1.2 Application of ET 200pro fail-safe modules
ET 200pro Distributed I/O System - Fail-Safe Modules
Operating Instructions, 05/2007, A5E00394073-02
15
F-System with ET 200pro

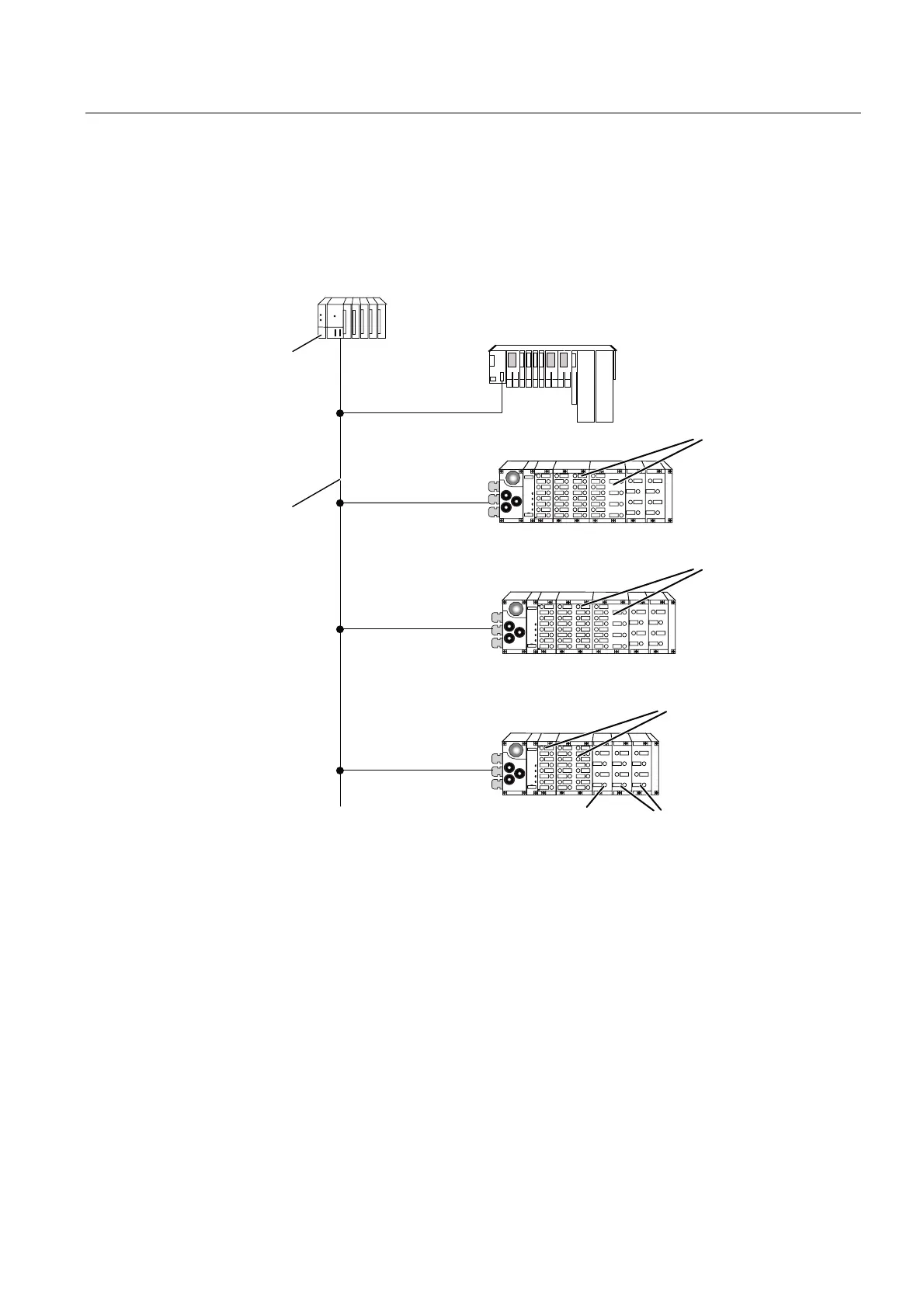

The following figure presents an example configuration for an S7 Distributed Safety F-
system including an ET 200pro on PROFIBUS DP/PROFINET IO.
The fail-safe DP master/IO controller exchanges safety-relevant and non-safety-relevant
data, for example, with the fail-safe and standard ET 200pro modules.
PROFIBUS DP/
PROFINET IO
6ZLWK
&38)'331
)DLOVDIH
PRGXOHV
)DLOVDIHPRGXOHV
6WDQGDUGPRGXOHV
)6ZLWFK
)DLOVDIH
PRGXOHV
(76

(7SUR

(7SUR

(7SUR

Figure 1-1 S7 Distributed Safety Fail-Safe Automation System
Availability of Fail-Safe Electronic Modules
The following fail-safe electronic modules are available for ET 200pro:
● 8/16 F-DI DC24V PROFIsafe Digital Electronic Module
● 4/8 F-DI/4 F-DO DC24V/2A PROFIsafe digital electronic module; P/M switching (current
sourcing/sinking)
● F-Switch PROFIsafe digital electronic module, (one F-switch per potential group allowed)
Fail-safe connection modules are available for the fail-safe electronic modules. A detailed list
of these modules is included in this manual.
