1FT5
08.95
1FT5/2-3
Siemens AG 1997 All Rights reserved 6SN1197–0AA20
SIMODRIVE 611 (PJ)
71
.
0
1
Electric motor
Synchronous motor
AC servomotor
Series
Frame size
Length
Designation, core type
Rated speed
A = 1200 RPM
C = 2000 RPM
F = 3000 RPM
G = 4000 RPM
K = 6000 RPM
Connector outlet direction
1 = transverse, right
2 = transverse, left
3 = axial NDE
4 = axial DE
Encoder system: Integrated tachometer/rotor position encoder A
Additionally prepared for encoder mounting E
Additional ROD 320 pulse encoder integrator
1)
F
(only shaft heights 63, 73 and 100; 2500 pulses/rev.)
Shaft with key and keyway/without holding brake A
Shaft with key and keyway/with holding brake B
Smooth shaft/without holding brake G
Smooth shaft/with holding brake H
–

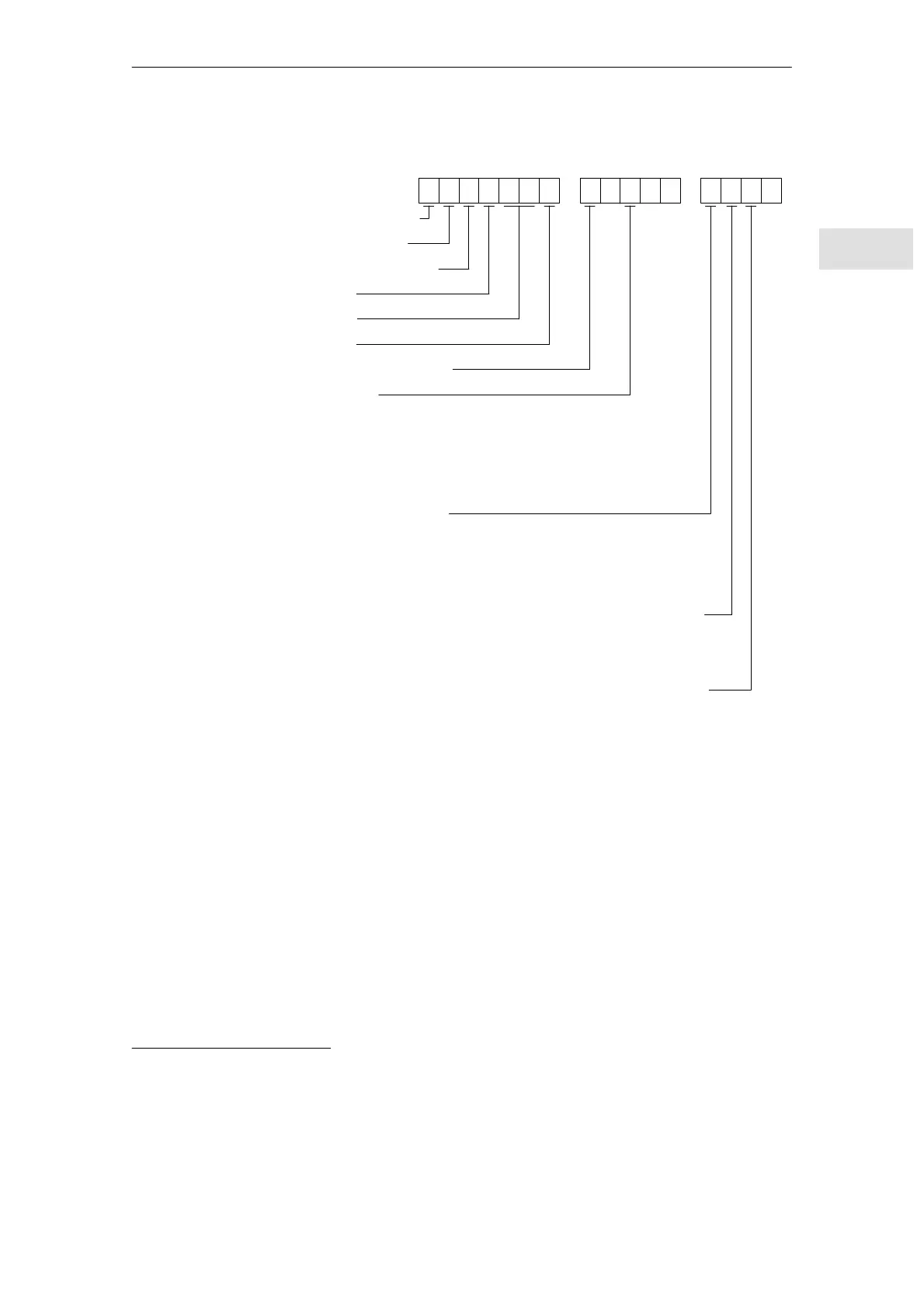

1 F T 5 . . .
A
– . .
.
} not for shaft heights 36, 48, 63
1) Limiting frequency: 250 kHz; motors may only be designed for a winding temperature rise DT=60 K.
Cannot be combined with a connector transition direction, axial NDE.
Order des-
ignations, core
types
1FT5 AC servomotors
2 Order desi
nations01.98
