SIMODRIVE 611 (PJ)
Horizontal and vertical mounting positions are possible.
Connection for an external pulsed resistor 0.3/25 kW
Order No.: 6SN1113–1AA00–0DA00
Red, blue, PE (green, yellow) each 1.5 mm
2
Screened 3 m connecting cable, can be extended up to 10 m
PE
1R3R

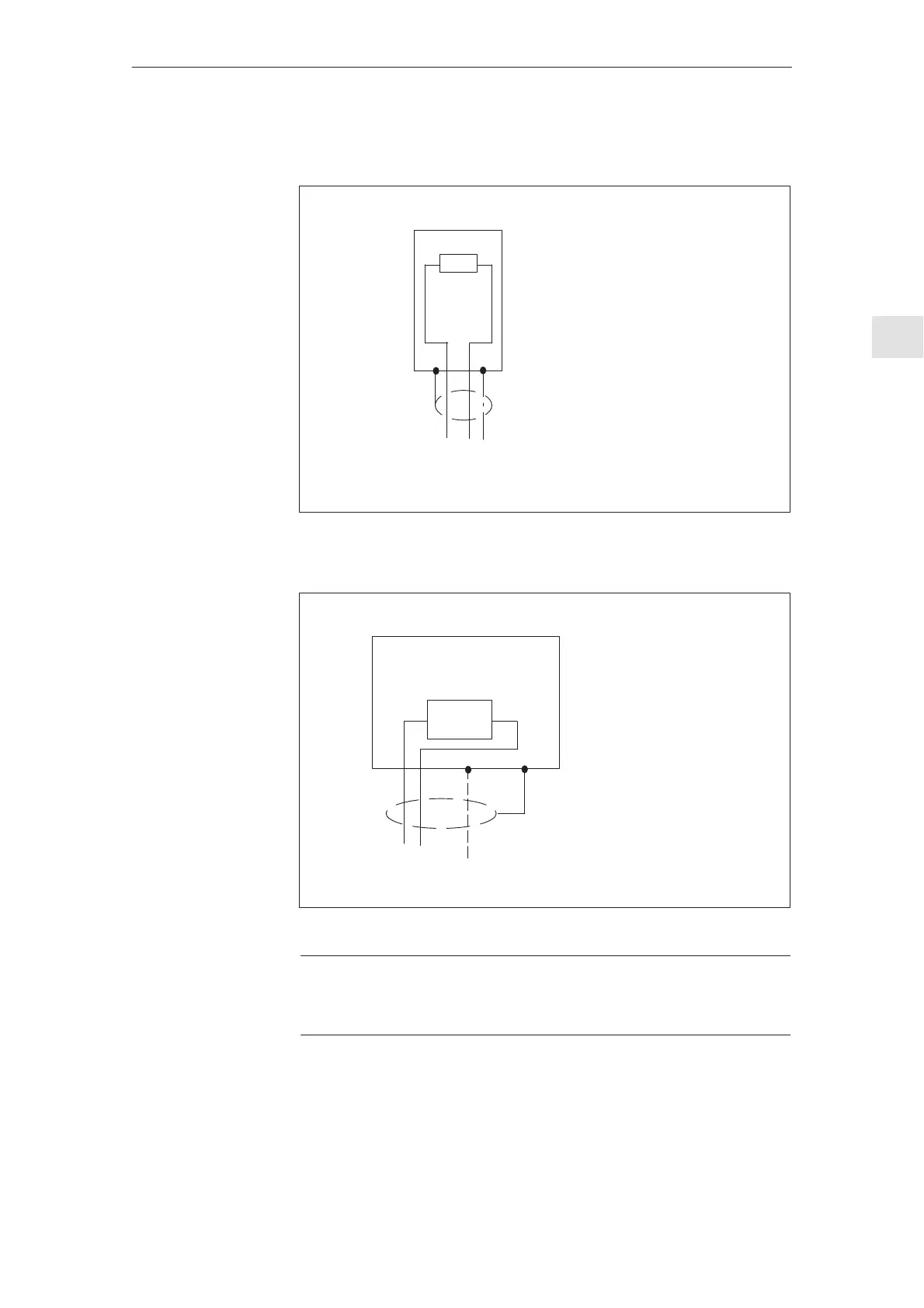

Figure 3-5Connection for an external pulsed resistor 0.3/25kW
Connection for an external pulsed resistor 1.5/25 kW
Order No.: 6SN1113–1AA00–0CA00
Screen connection is realized through the PG gland
Screened connecting cable (braided screen) cross–section 2.5 – 4 mm
2
max. length 10 m
PE
1R3R
Figure 3-6Connection for an external pulsed resistor 1.5/25kW
Note
Conductors which are not used in multi–conductor cables must always be con-
nected to PE at both ends.
