3
02.98
1-32
Siemens AG 1998 All Rights reserved 6SN1197–0AA00 02.98 Edition
SIMODRIVE 611 (PJ)
Connection types for pulsed resistor modules
Status as supplied:
Connector with a jumper between 1R and 2R
internal resistor active
Order No.: 6SN1113–1AB0–0A0
P600
M600
Pul-
sed
resis-
tor
mo-
dule
2R
3R
1R

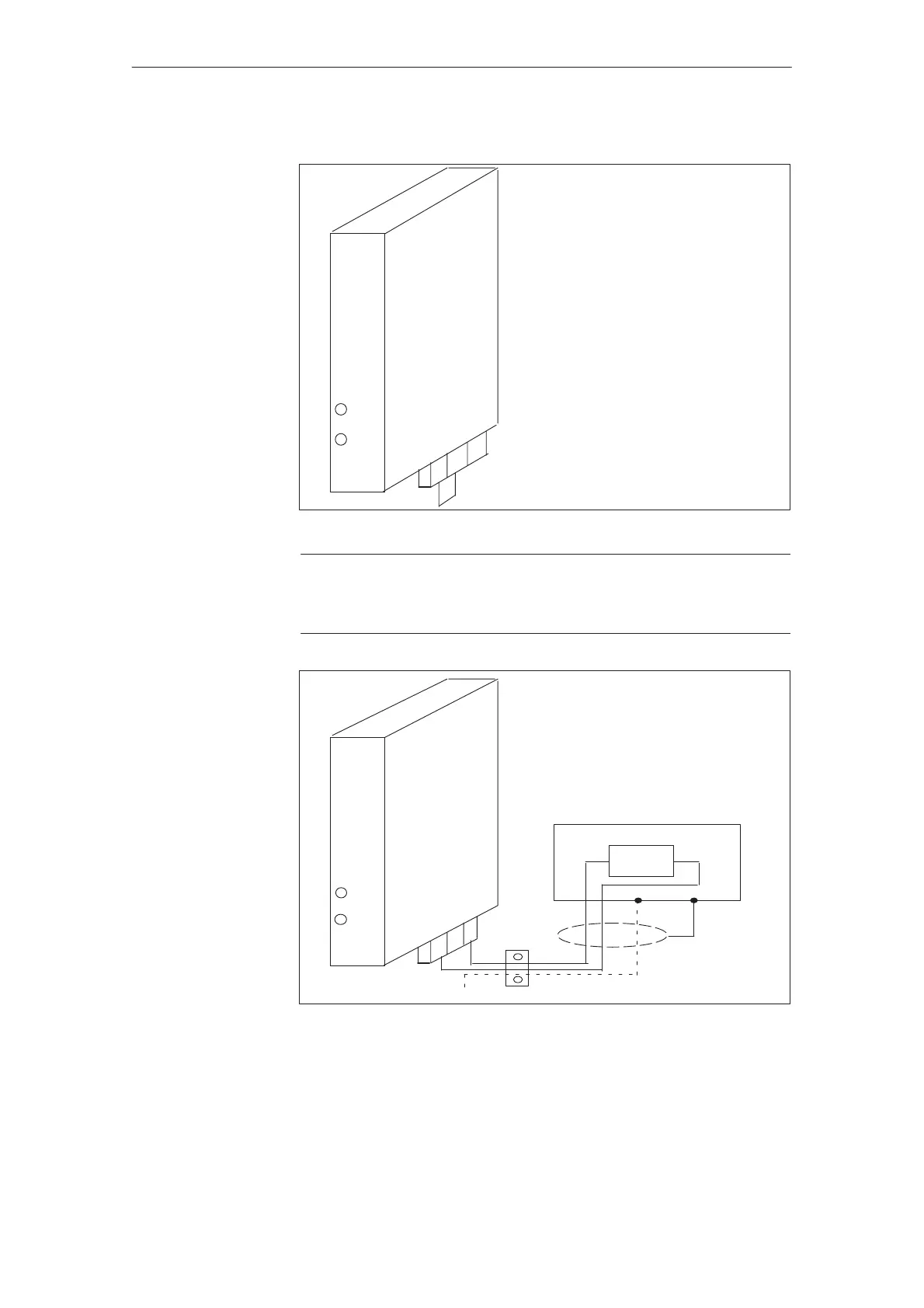

Figure 3-7Status of the pulsed resistor module when supplied
Note
For the pulsed resistor modules, only the external 1.5/25 kW pulsed resistor
can be connected.
The following connection combinations are possible:
Connection of an external 1.5 kW resistor:
Connector without jumper
internal resistor is active
external resistor is active
1) Screen connection as close as possible to the
module
Order No.: 6SN1113–1AB0V–0VA0V
P600
M600
Pul-
sed
resis-
tor
mo-
dule
1R
1)
PE
1R
3R
3R
2R
PE rail
Figure 3-8Connection of an external 1.5kW pulsed resistor module
No. of pulsed resistor modules connected to the same DC link, refer to Catalog
NC60.1
NvC / 500µF
N = Max. number of pulsed resistor modules (must always be rounded–off
C = DC link capacitance of the drive group in µF
Pulsed resistor
module
3.2.1 Technical data, supply infeed modules
