Siemens SIMOTICS 1PQ8 - Figure 9-6 Position the Set Screws for the Labyrinth Sealing Ring on the Outer Bearing Cover

3. Warm up the labyrinth sealing ring. Push the labyrinth sealing ring to approx. 3 mm before
the bearing cover before the paint or adhesive cures on the set screws.
3mm

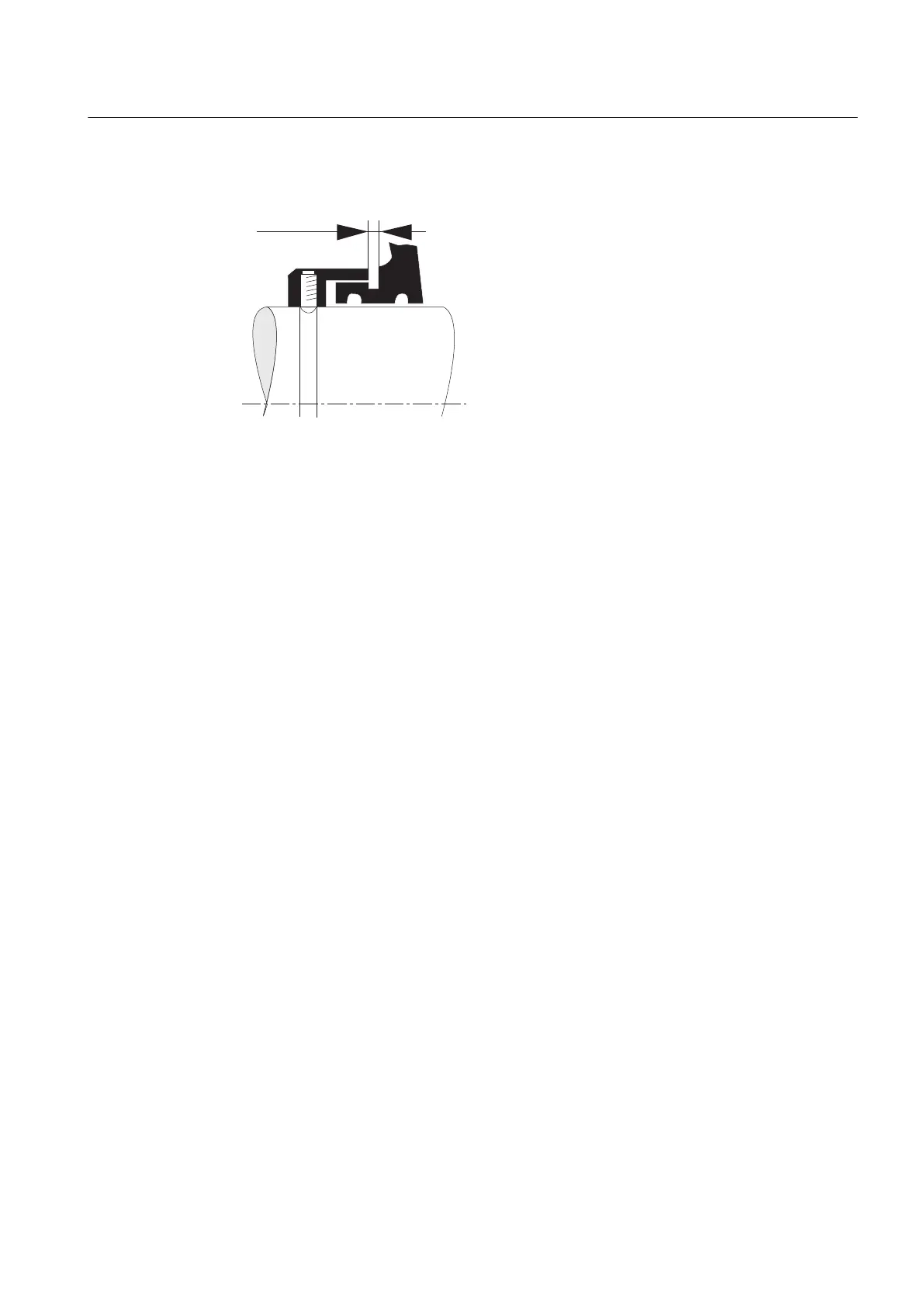

Figure 9-6 Position the set screws for the labyrinth sealing ring on the outer bearing cover
4. Locate the labyrinth sealing ring in position by screwing the set screws in. Check that the
tips of the set screws engage with the keyway with a short axial movement.
The correct axial position is obtained when the locating setscrews screwed into the keyway
engage.
Maintenance
9.2 Corrective Maintenance
SIMOTICS TN Series N-compact 1PQ8
Operating Instructions 11/2018 133
