10.4 Stator and rotor

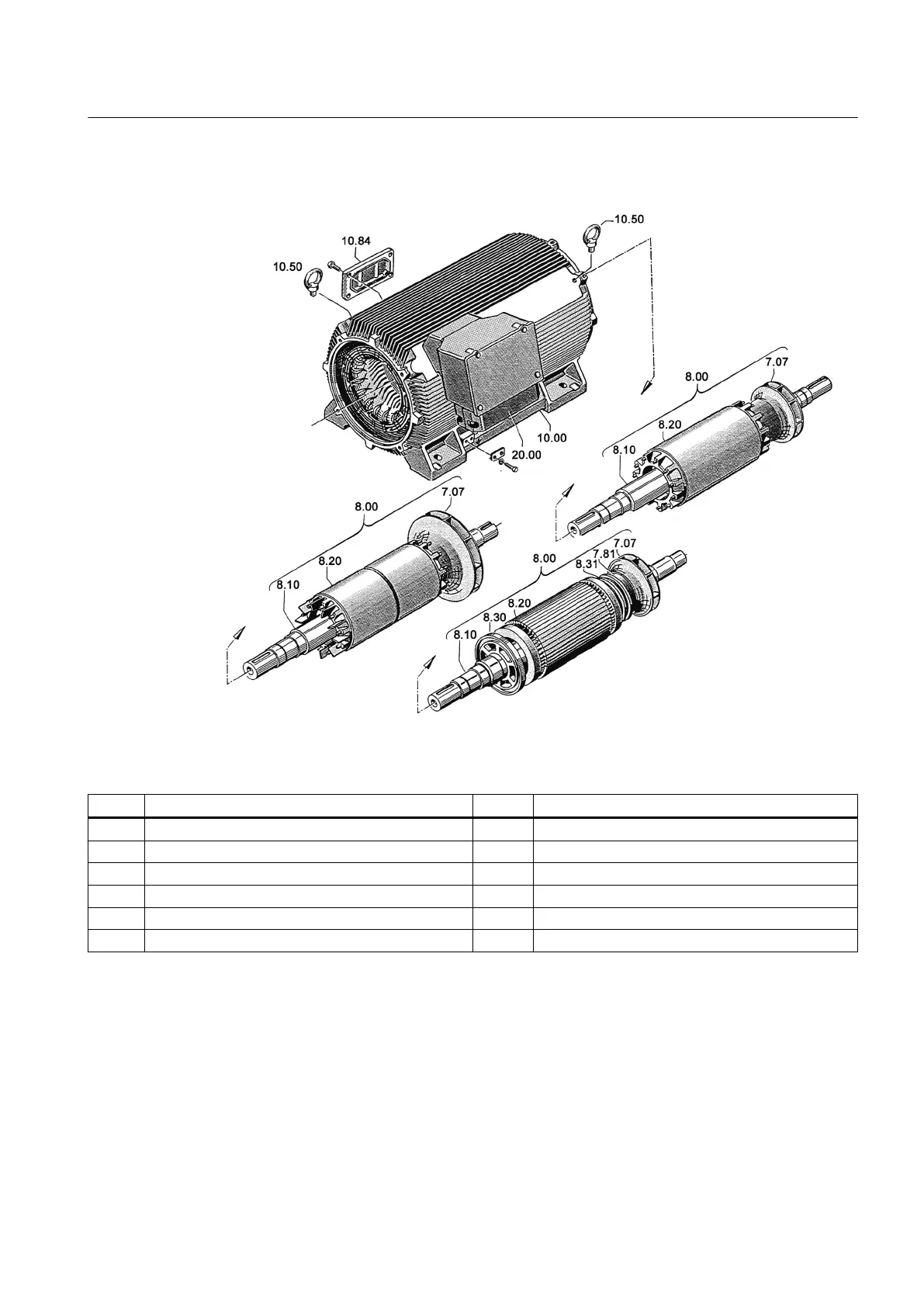

Figure 10-1 Stator and rotor
Table 10-1 Spare parts for stators and rotors
Part Description Part Description
7.07 Internal fan 8.31 Non-drive end balancing ring
7.81 Air guide insert 10.00 Stator frame with laminated core and winding
8.00 Rotor, complete 10.50 Lifting lug
8.10 Shaft 10.84 Cover with seal
8.20 Rotor core with winding 20.00 Terminal box
8.30 Drive-end balancing ring
Spare parts
10.4 Stator and rotor
