Siemens SIMOTICS 1PQ8 - Terminal Box 1 XB1631; Figure 6-4 Terminal Box 1 XB1631

You can find additional information here:
● Inserting the cable into the 1XB16... terminal box with cable gland (Page 75)
● Inserting the cable into the 1XB.. terminal box with ring seal (Page 77)
● Connecting cables with cable lugs (Page 78)
6.2.3 Terminal box 1XB1631

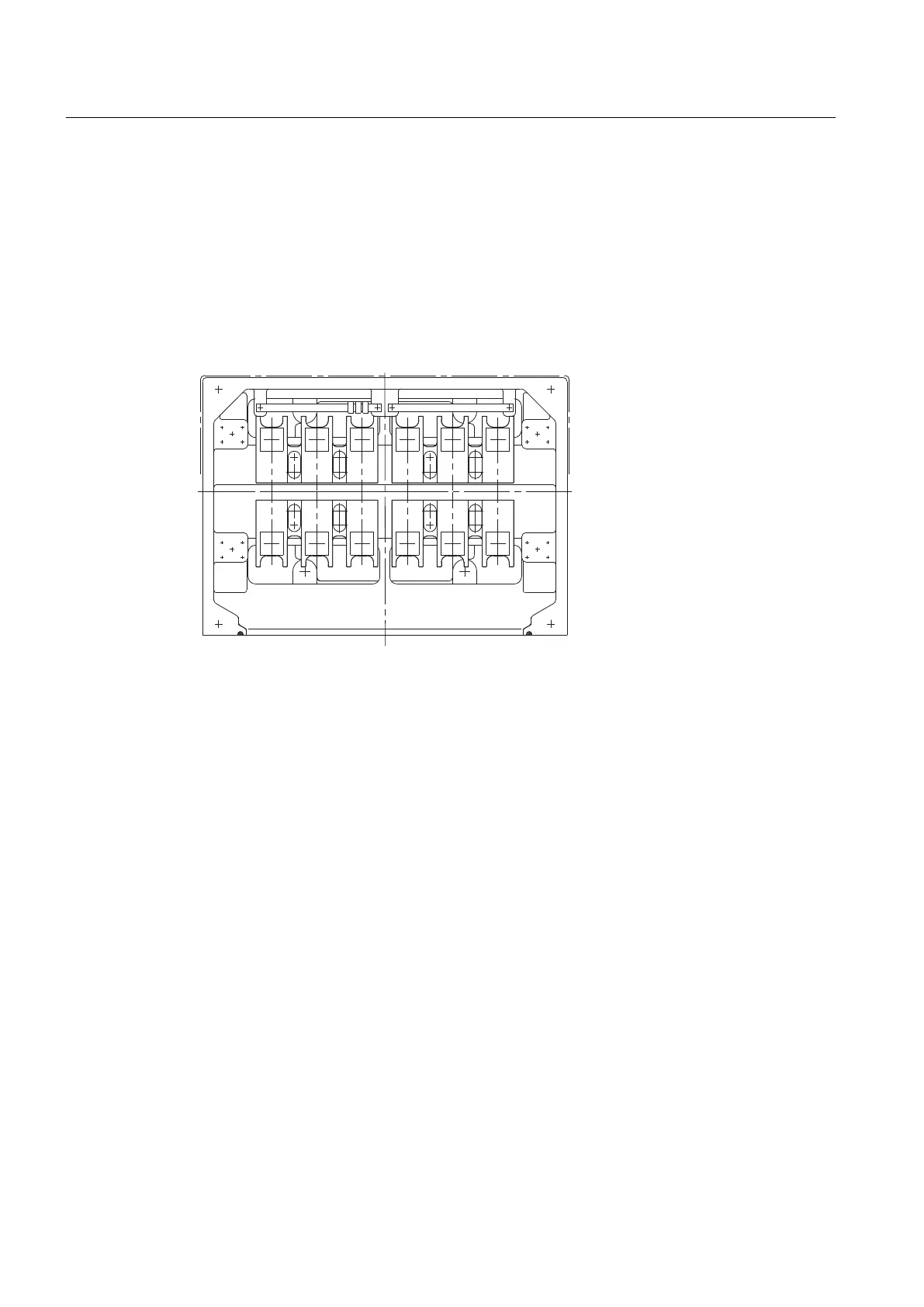

Figure 6-4 Terminal box 1XB1631
The connecting cables are introduced into the 1XB1631 terminal box through cable glands
with threaded holes 4 x M80 x 2 and 2 x M25 x 1.5. The cable glands are not included in the
standard scope of supply. The version with onion sealing ring is optional.
You can find additional information here:
● Inserting the cable into the 1XB16... terminal box with cable gland (Page 75)
● Inserting the cable into the 1XB.. terminal box with ring seal (Page 77)
● Connecting cables with cable lugs (Page 78)
Electrical connection
6.2 Terminal box
SIMOTICS TN Series N-compact 1PQ8
70 Operating Instructions 11/2018
