10.8 Drive end rolling-contact bearings without bearing housing

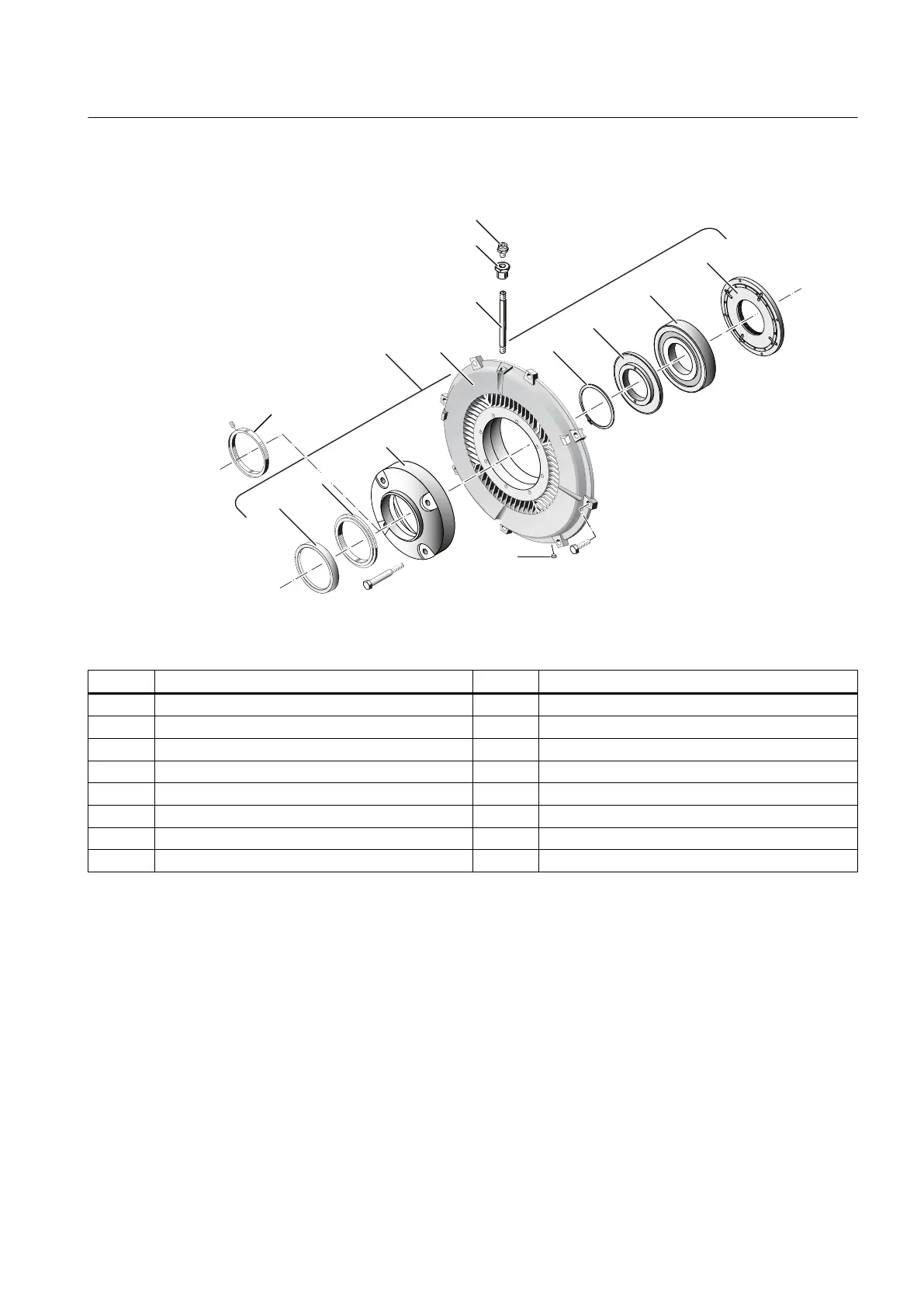

Figure 10-5 Drive end roller bearings without bearing housing
Table 10-5 Spare parts for drive end roller bearings without bearing housing
Part Description Part Description
3.00 Roller bearing cartridge (locating bearing) 3.50 Bearing housing
3.10 V ring 3.60 Inner bearing cover
3.13 Protective ring 3.80 Grease nipple
3.16 Labyrinth ring (optional) 3.81 Nut
3.20 Outer bearing cover 3.82 Grease tube
3.30 Locking ring 5.00 End shield
3.35 Grease slinger 5.67 Sealing plugs
3.40 Deep-groove ball bearing (locating bearing)
Spare parts
10.8 Drive end rolling-contact bearings without bearing housing
SIMOTICS TN Series N-compact 1PQ8
Operating Instructions 11/2018 141
