10.9 Roller bearings, DE - end shield with integrated bearing cover














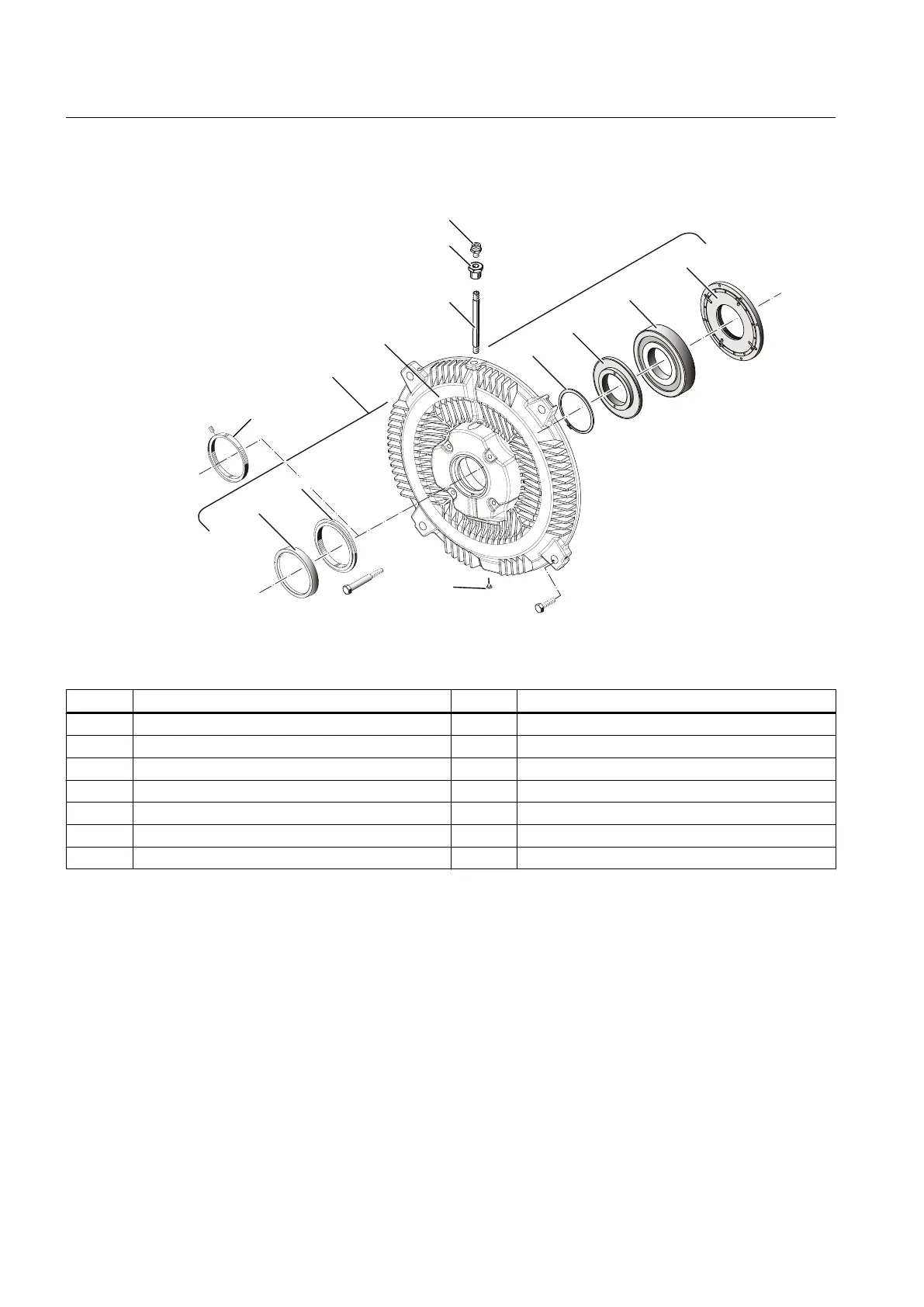

Figure 10-6 Roller bearings, DE - end shield with integrated bearing cover
Table 10-6 Spare parts for roller bearings, DE
Part Description Part Description
3.00 Roller bearing cartridge (locating bearing) 3.50 Bearing housing
3.10 V ring 3.60 Inner bearing cover
3.13 Protective ring 3.80 Grease nipple
3.16 Labyrinth ring (optional) 3.81 Nut
3.30 Locking ring 3.82 Grease tube
3.35 Grease slinger 5.00 End shield
3.40 Deep-groove ball bearing (locating bearing) 5.67 Sealing plugs
Spare parts
10.9 Roller bearings, DE - end shield with integrated bearing cover
