10.7 Drive end rolling-contact bearings with bearing housing

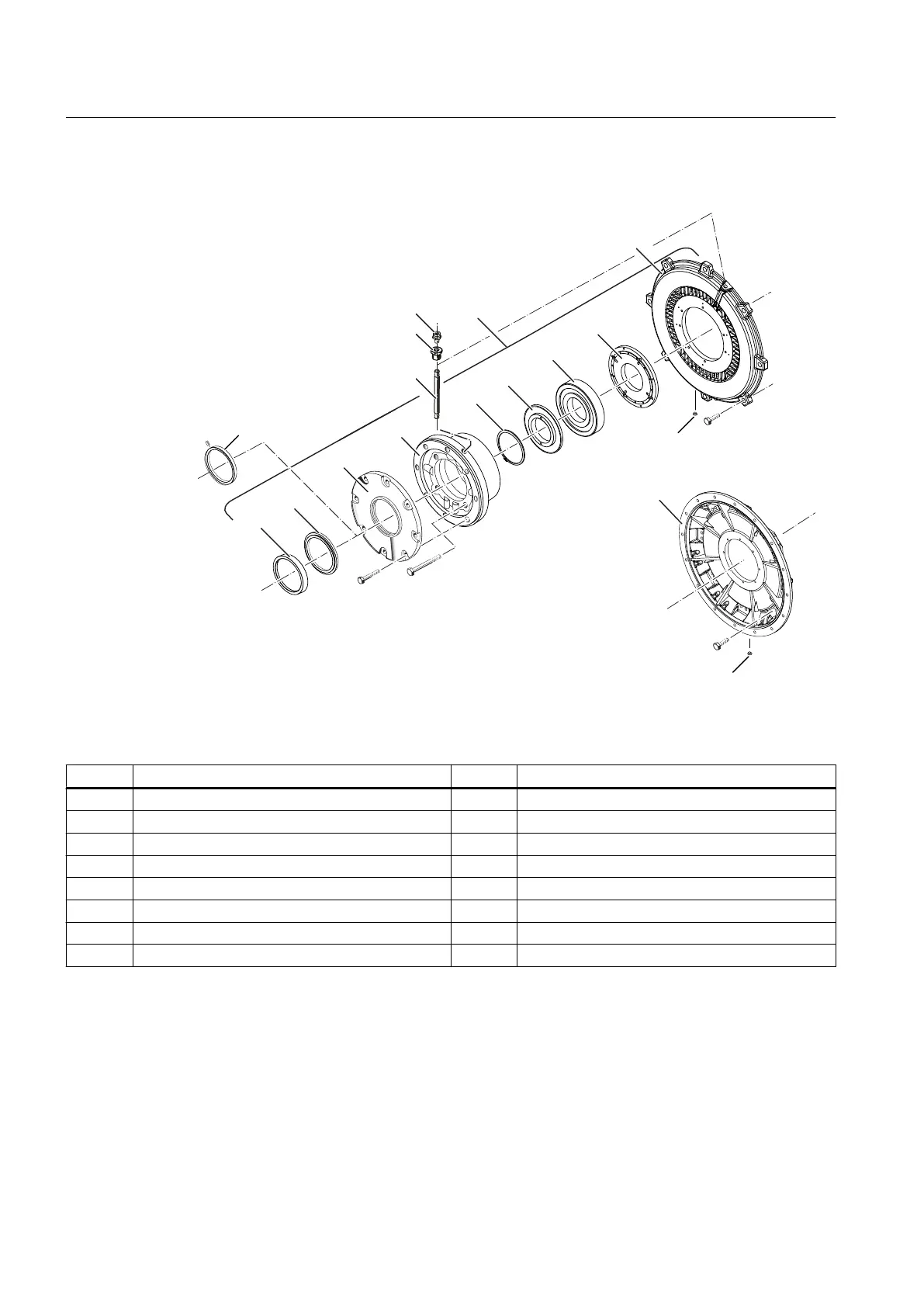

Figure 10-4 Drive end roller bearings with bearing housing
Table 10-4 Spare parts for drive end roller bearings with bearing housing
Part Description Part Description
3.00 Roller bearing cartridge (locating bearing) 3.50 Bearing housing
3.10 V ring 3.60 Inner bearing cover
3.13 Protective ring 3.80 Grease nipple
3.16 Labyrinth ring (optional) 3.81 Nut
3.20 Outer bearing cover 3.82 Grease tube
3.30 Locking ring 5.00 End shield, design B3
3.35 Grease slinger 5.10 Flanged end shield
3.40 Deep-groove ball bearing (locating bearing) 5.67 Sealing plug
Spare parts
10.7 Drive end rolling-contact bearings with bearing housing
SIMOTICS TN Series N-compact 1PQ8
140 Operating Instructions 11/2018
