Electrical connection
8.3 System integration
1FK2 synchronous motors for SINAMICS S120
106 Configuration Manual, 06/2019, A5E46927724B AB

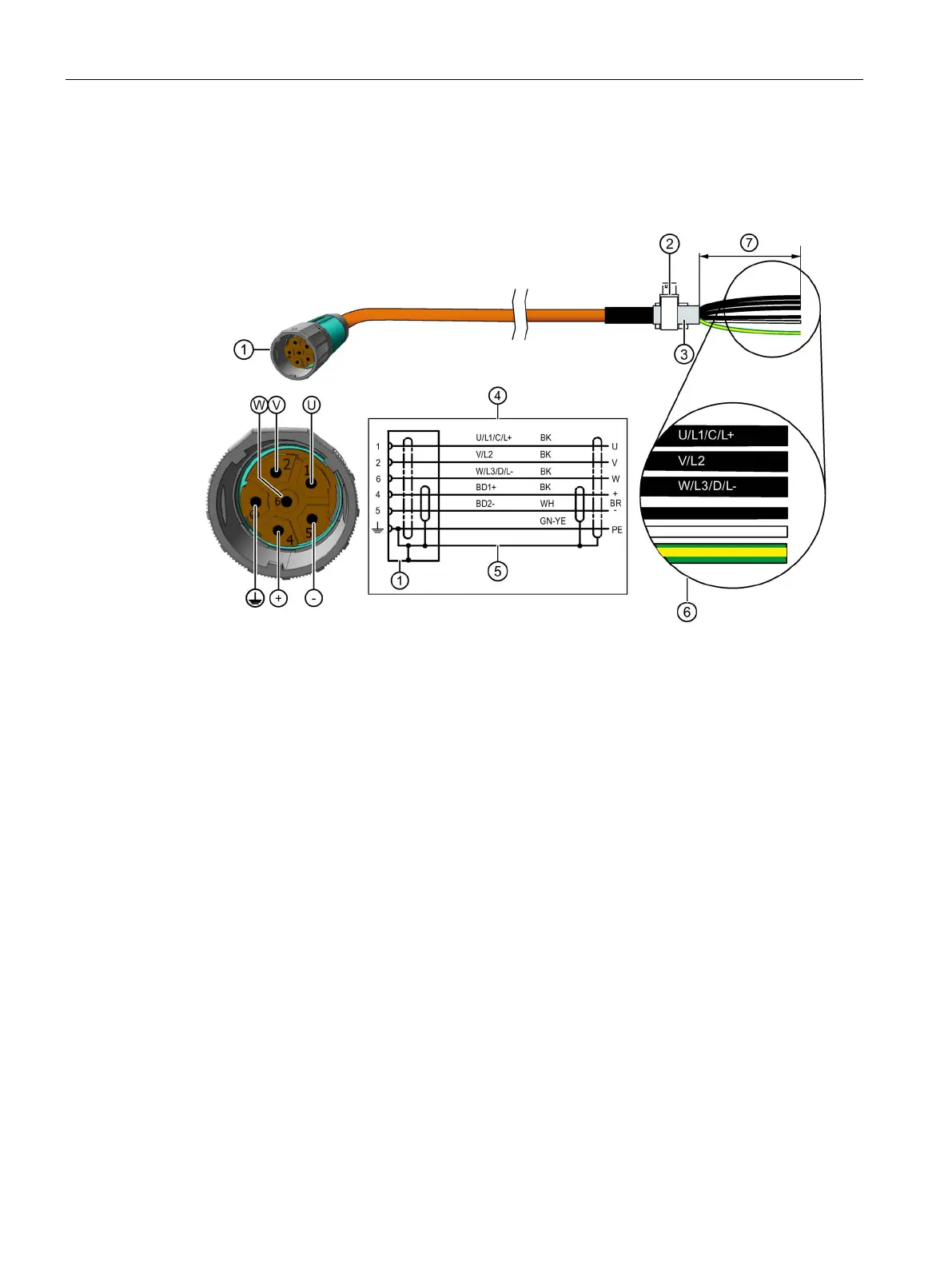

For connector size M23
①
SPEED-CONNECT connector, size M23
②
Terminal for the cable shield
③
Cable shield
④
Connection diagram
U; V; W = power cables, 1.5 mm
2
, each cable with separate shielding
BD1+ and BD2- = brake cable without lettering, 1.5 mm
2
, shielded together
PE = protective conductor
⑤
Cable shield
⑥
Conductor designations
⑦
Recommended length of the cable ends: 105 mm
